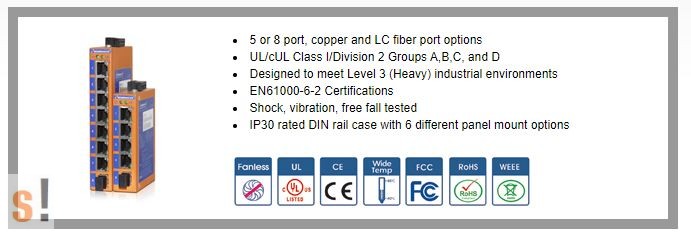

5 and 8-port Din-rail Entry-level Unmanaged Ethernet Switches
The HES5B/8B series of industrial Ethernet switches are entry-level industrial 5 and 8-port Ethernet switches that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The HES5B/8B switches are rated to operate at temperatures ranging from -10 to 60°C, or with a wide operating temperature range from -40 to +75°C. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play HES5B/8B switches easy to use and reliable. |
Technology
| Network Standards |
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X)
IEEE802.3x Flow Control |
| Processing Type |
Store and forward with IEEE802.3x full duplex, non-blocking flow control |
| Flow Control |
IEEE802.3x flow control, back pressure flow control |
Switch Properties
Interface
| RJ45 Port Connectors |
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
|
|
| LED Indicators |
Power, (Link / Speed / Activity for each port) |
Optical Fiber
Power Requirements
| Input Voltage |
12~36VDC and 10~24VAC |
| Power Consumption |
4W Max |
| Input Connection |
Removable Terminal Block |
| Protection |
Reverse Polarity Protection |
Physical Characteristics
| Case |
Slim Metal Case, IP30 Design |
| Dimensions |
25×100×75mm / 0.98 x 3.94 x 2.95in(HES5B)
24×145×75mm / 0.94 X 5.71 x 2.95in(HES8B) |
| Installation |
DIN Rail or Panel Mounting |
|
Environment Limits
| Operating Temperature |
Standard Models: -10 to 60˚C
Wide Temp Models: -40 to +75˚C |
| Storage Temperature |
-40 to 85˚C |
|
| Ambient Relative Humidity |
5 to 95%(Non-condensing) |
|
Standards and Certifications
| EMI |
FCC Part15, CISPR(EN55022) Class A |
| EMS |
EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3,
EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3,
EN61000-4-6(CS) Level 3, EN61000-6-2
UL Class 1, Division 2, Groups A, B, C, and D |
| Shock |
IEC 60068-2-27 |
|
| Freefall |
IEC 60068-2-32 |
|
| Vibration |
IEC 60068-2-6 |
|
Warranty
|
