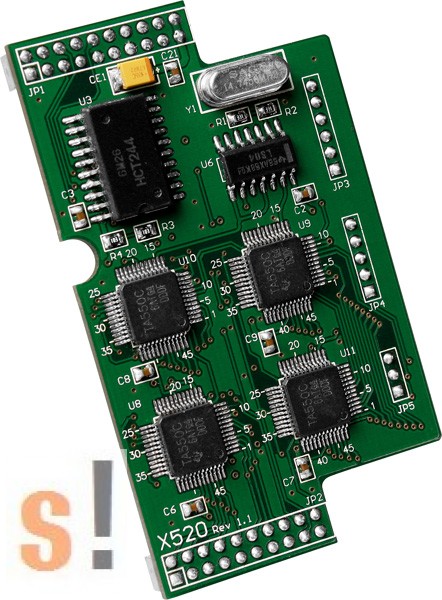

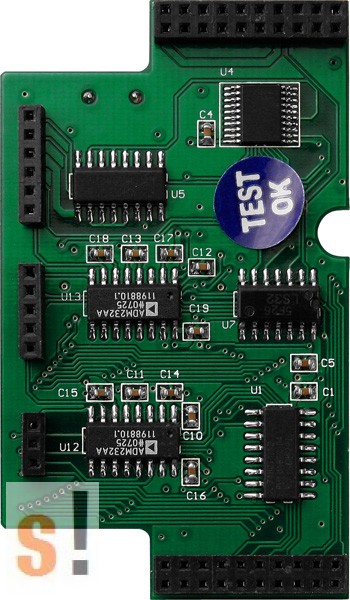

X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS
X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS
nettó: 26 240 Ft bruttó: 33 325 Ft

X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS

Cikkszám:
X520CR
X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS
X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS
1
00
X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS
Rendelhető
Rendelésre 4-10 munkanap
Rendelésre 10-15 munkanap
  • X520 CR # I/O bővítő kártya/4x RS-232 port/3 pin/1x DI/2x DO, ICP DAS
  • X520 CR # 4-port RS-232 (3-Pin), 1-ch D/I and 2-ch D/O



Number of ports 4
Interface TxD, RxD, GND
Controller 16C550 compatible
Speed: 115200 bps Max.
Data bit : 5, 6, 7, 8
Stop bit : 1, 1.5, 2
Parity : None, Even, Odd, Mark, Space
FIFO : Internal 16 bytes
Bus Parallel I/O Module
Connector 14-Pin Removable Terminal Block
Isolation Voltage Non-isolated
Software
Support interrupt driven software library
Support VxCOM library
Digital Output
Output Channels 2
Output Type Open-collector (Sink)
Stop bit +5 ~ +30 VDC
Max Load Current 100 mA/channel
Isolation Voltage Non-isolated
Digital Input
Input Channel 1
Input Type Source, Dry
On Voltage Level +1 VDC max or connect to GND
Off Voltage Level +3.5 V ~ +30 VDC or Open
Isolation Voltage Non-isolated
Power requirement
+5 VDC
Environment
Operating Temperature -25°C ~ +75°C
Storage Temperature -30°C ~ +80°C
Relative Humidity 10 ~ 90% RH, non-condensing
Dimensions
64 mm x 38 mm
