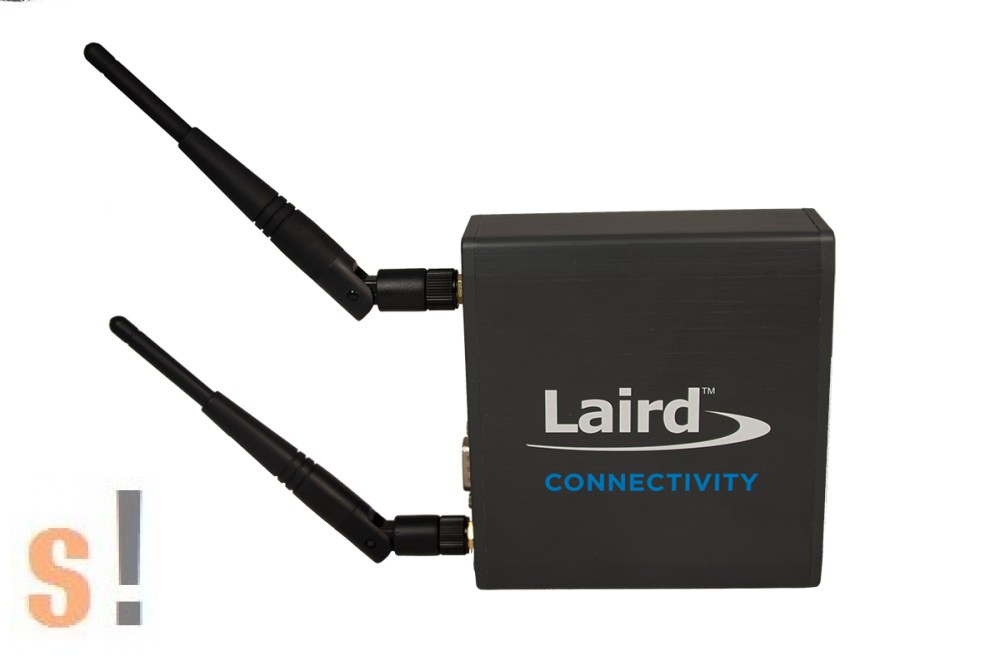

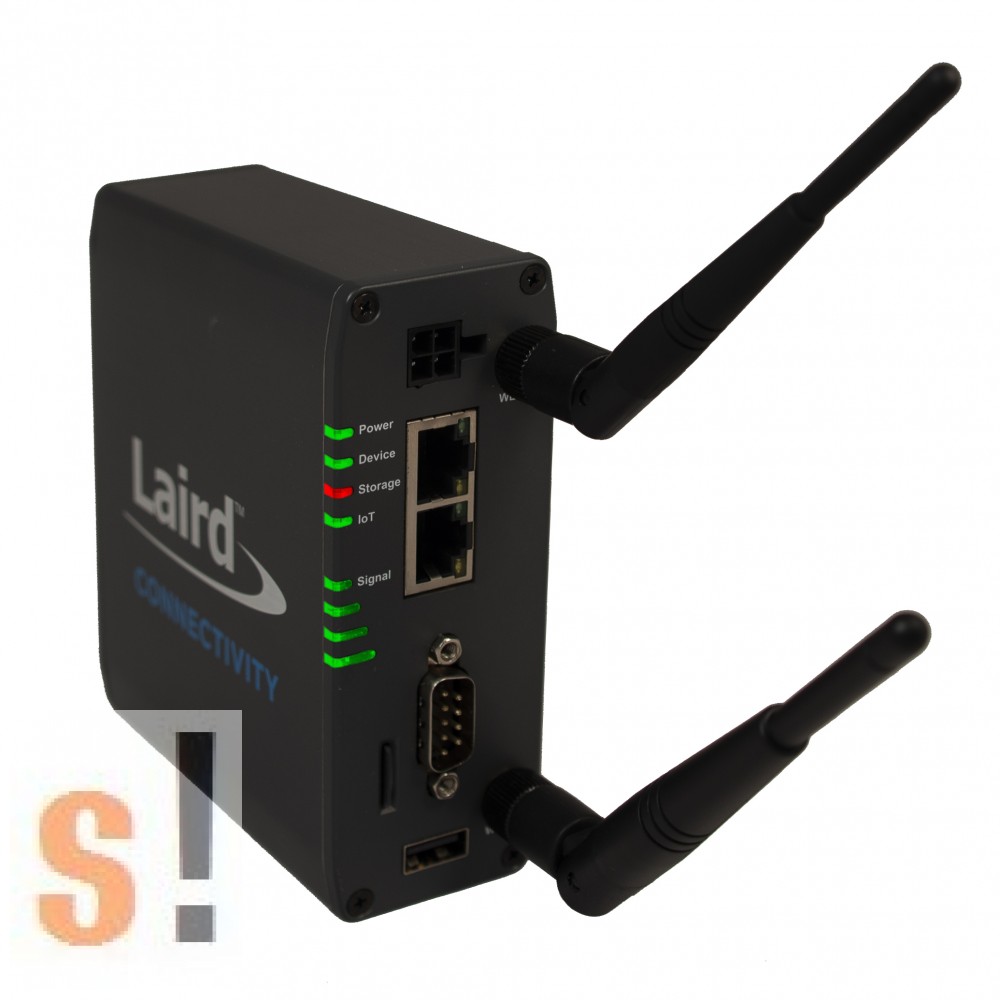

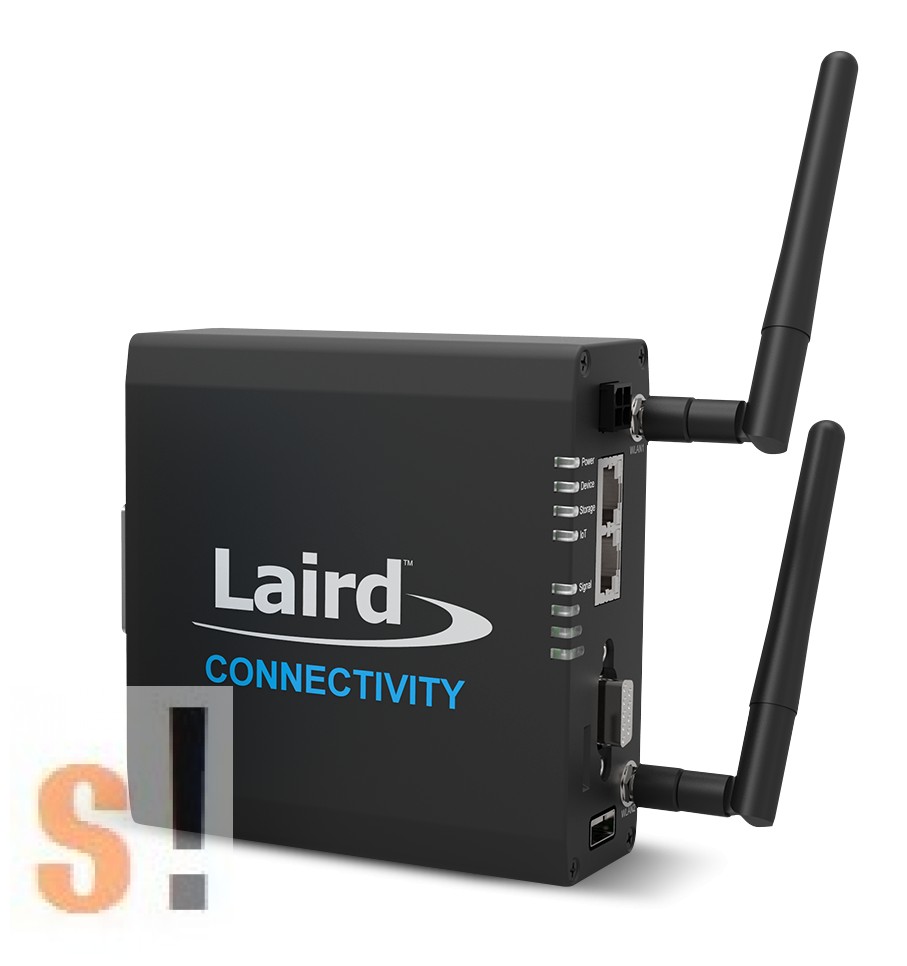

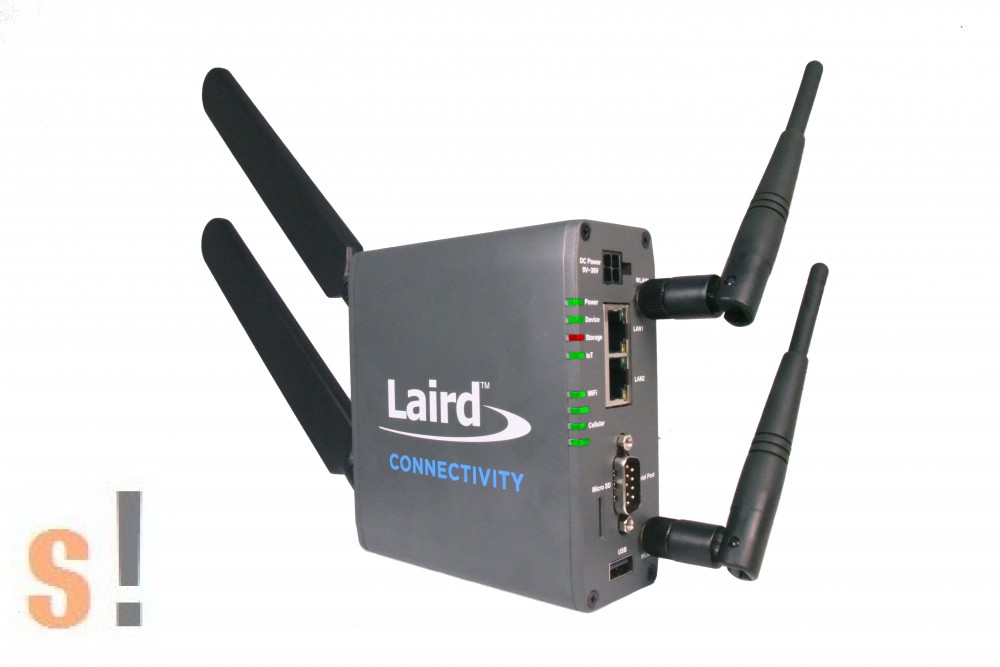

Laird Connectivity’s Sentrius™ IG60-SERIAL, based on the Microchip SAMA5D36 processor, brings all of our industry competence and capabilities into one solution. Based on Laird's 60 Series SOM, send and receive device data via serial (RS232/422/485), with dual-Ethernet, USB, SD micro, Bluetooth, and 2x2 MIMO Wi-Fi.
We provide it in two variants:
Laird Linux Version: A rugged, open environment for your application, provided with our Linux build, hardware root of trust, and development tools. Based on our powerful 60 Series SOM.
AWS IoT Greengrass Version: Features our pre-configured AWS IoT Greengrass sandbox for your IoT applications! Enable just-in-time maintenance, capture sensor data and more for your legacy devices and Bluetooth sensors!
- Best-in-Class Wireless Performance - 2x2 MIMO for more robust connections
- Multiple Ways to Connect - Wi-Fi, Bluetooth, 5, Ethernet, Serial, USB
- Chain of Trust - signed and secured at every layer to protect your device
- Industry Leading Support - Global Tier 2 and FAE support for your application
The Internet of Things is at the edge of a new frontier, connecting the infrastructure of society to the Cloud, but realizing this dream comes with challenges. The real world is complicated, with thirty-year-old equipment that was born before the smart phone, wireless security threats and botnets. The Sentrius IG60 bridges wireless sensor data to the Cloud over an enterprise-grade Wi-Fi connection and can give new life to legacy wired equipment by adding security and wireless connectivity. Watch the video to learn more about this wireless IoT gateway.
Specifications
Certifications: FCC/IC/CE regulatory approvals (pending). CE, UL/IEC62368-1 hardware approvals (pending)
Dimensions: 85 mm x 22 mm x 100 mm
Flash Storage: 512 MB NAND Flash
Mounting Style: DIN-rail or wall mount
Physical Interface: 2x Serial (RS232/422/485), 1x USB 2.0 Host, 1x MicroSD slot, 2x SMA antenna connector
Security: Chain of Trust - hardware root of trust tools. WEP/WPA/WPA2 wireless security.
Temperature Range: -30° to +85° C (-22° to +185° F)
Voltage: 9-30 V DC

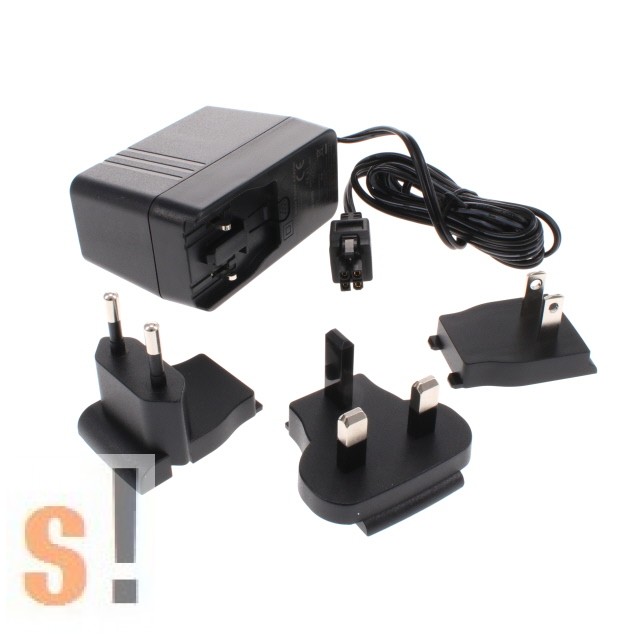

Tápegység nem tartozéka, külön rendelhető:
|
