Termék részletek

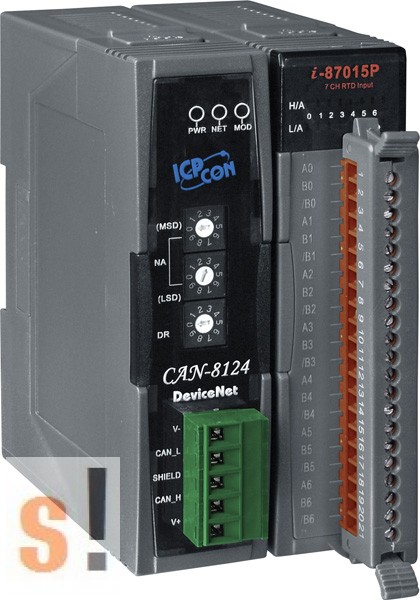

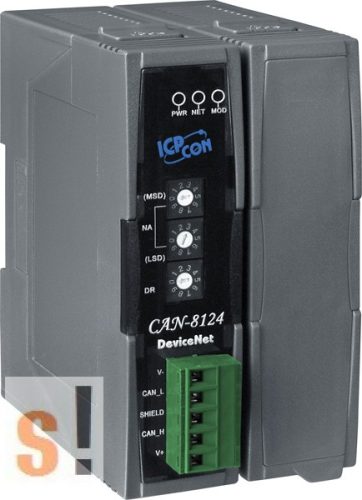

CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS

Rendelésre 4-10 munkanap
Raktárkészlet: NINCS
CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS
  • CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS
  • CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS
71 555 Ft 90 875 Ft
  • CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS
  • CAN-8224-G # Remote I/O ház/DeviceNET/Slave/2 férőhely, ICP DAS
  • CAN-8124-G (I-8KDNS1) # DeviceNet Embedded Device with 1 I/O Expansion
  • CAN-8224-G (I-8KDNS2) # DeviceNet Embedded Device with 2 I/O Expansions


  • Number of Nodes: 64 max.
  • Baud Rate: 125, 250, 500 kbps
  • Support Message Groups: Group 2 only Server
  • I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
  • Device Heartbeat & Shutdown Message
  • Produce EDS file Dynamically
  • No. of Fragment I/O: 128 Bytes max. (Input / Output)
  • MAC ID Setting by Rotary Switch
  • Baud Rate Setting by Rotary Switch
  • Status LED: NET, MOD, PWR
  • Support Hot Swap and Auto-Configuration for high profile I-87K I/O Modules


  • CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS
    CAN-8224-G # Remote I/O ház/DeviceNET/Slave/2 férőhely, ICP DAS

    CAN-8124-G (I-8KDNS1) # DeviceNet Embedded Device with 1 I/O Expansion
    CAN-8224-G (I-8KDNS2) # DeviceNet Embedded Device with 2 I/O Expansions


    DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data.

    The CAN-8124/CAN-8224 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8x24 supports 1/2 slot(s) for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules.

    Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.

    In the CAN-8124/CAN-8224 device, ICPDAS provides CAN Slave Utility to produce the specific EDS file with the plugged in modules in off-line mode. After finishing the utility configuration, it can create the EDS file. There is also much DeviceNet information of the CAN-8x24 in the EDS file. It is not only for DeviceNet master interface but also for users to know more information about the slave device. Users also can use the default configuration for general DI/DO/AI/AO. And users only need to set the MAC ID and Baud rate by hardware rotary switch. Then, after wire connection and the CAN-8x24 powered on, it can work normally on the CAN bus network through DeviceNet protocol.

    DeviceNet Version
    DeviceNet Specification Volume I & II, Release 2.0
    Number of Nodes
    Baud Rate
    125K, 250K, 500K
    Support Message Groups
    Group 2 only Server
    Not Support
    I/O Operating Modes
    Poll, Bit-Strobe, Change of State/ Cyclic
    Device Heartbeat Message
    Device Shutdown Message
    Produce EDS file Dynamically
    No. of Fragment I/O
    128 Bytes (Max) (Input/ Output)
    MAC ID Setting
    Rotary Switch
    Baud Rate Setting
    Rotary Switch
    DeviceNet Status LED
    NET, MOD, PWR4


    Model Name
    80186, 80 MHz or compatible
    512 KB / 512 KB / 16 KB
    31 bytes (battery backup, data valid for up to 10 years)
    RTC (Real Time Clock)
    Watchdog IC
    Expansion Slot
    1 slots
    2 slots
    CAN Interface
    NXP SJA1000T with 16 MHz clock
    NXP 82C250
    Channel number
    5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
    Baud Rate (bps)
    125 k, 250 k, 500 k
    Transmission Distance (m)
    Depend on baud rate (for example, max. 500 m at 125 kbps )
    3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminator Resistor
    Jumper for 120 Ω terminator resistor
    ISO-11898-2, CAN 2.0A
    DeviceNet Volumn I ver2.0, Volumn II ver2.0
    Predefined Master/Slave Connection set
    Round LED
    Power supply
    Unregulated +10 ~ +30 VDC
    Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption
    1.7 W
    2 W
    DIN-Rail or Wall Mounting
    64mm x 119mm x 91mm
    (W x L x H)
    95mm x 132mm x 91mm
    (W x L x H)
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    10 ~ 90% RH, non-condensing
     Támogatott modulok:
    CAN-8124 Support Module Table
