CAN-8224-G # Remote I/O ház/DeviceNET/Slave/2 férőhely, ICP DAS

CAN-8124-G # Remote I/O ház/DeviceNET/Slave/1 férőhely, ICP DAS
CAN-8224-G # Remote I/O ház/DeviceNET/Slave/2 férőhely, ICP DAS

CAN-8124-G (I-8KDNS1) # DeviceNet Embedded Device with 1 I/O Expansion

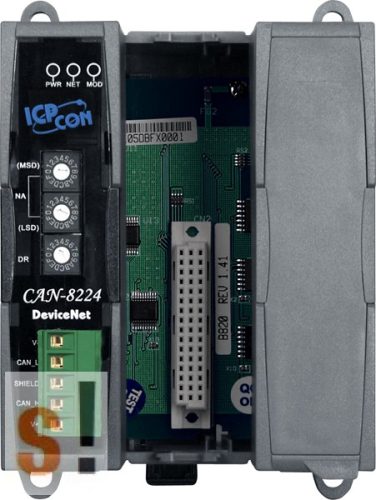

CAN-8224-G (I-8KDNS2) # DeviceNet Embedded Device with 2 I/O Expansions

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data.

The CAN-8124/CAN-8224 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8x24 supports 1/2 slot(s) for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules.

Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.

In the CAN-8124/CAN-8224 device, ICPDAS provides CAN Slave Utility to produce the specific EDS file with the plugged in modules in off-line mode. After finishing the utility configuration, it can create the EDS file. There is also much DeviceNet information of the CAN-8x24 in the EDS file. It is not only for DeviceNet master interface but also for users to know more information about the slave device. Users also can use the default configuration for general DI/DO/AI/AO. And users only need to set the MAC ID and Baud rate by hardware rotary switch. Then, after wire connection and the CAN-8x24 powered on, it can work normally on the CAN bus network through DeviceNet protocol.
