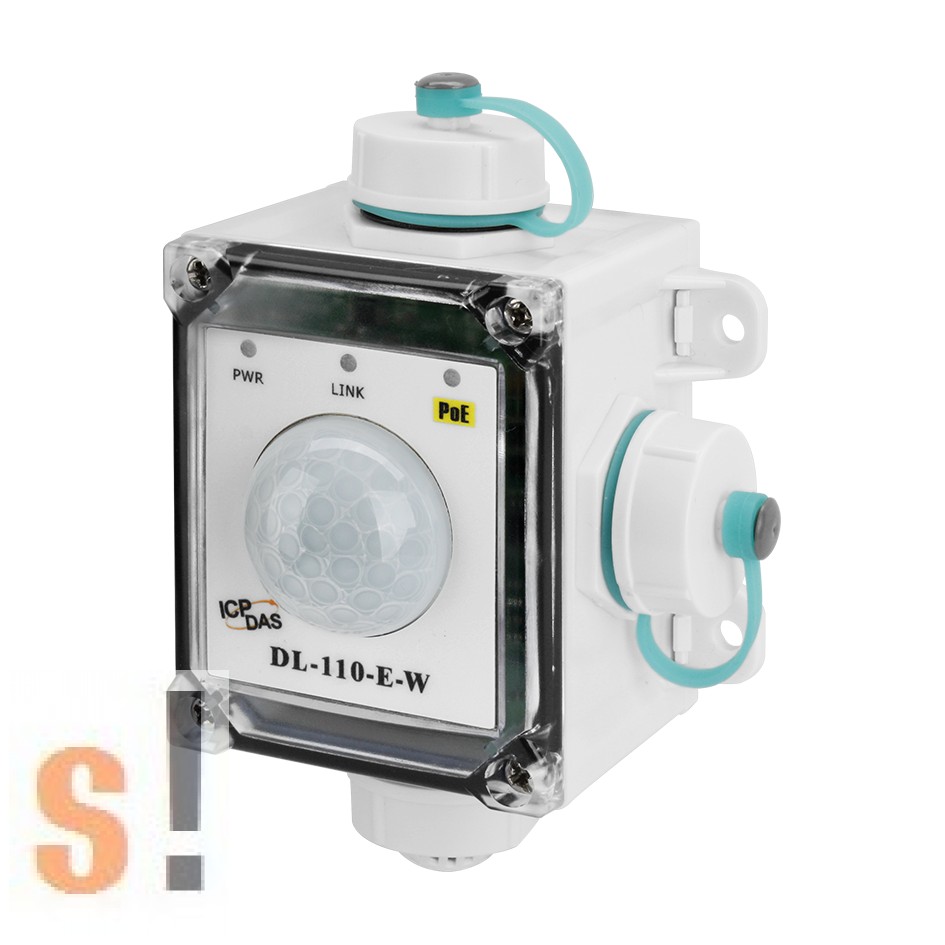

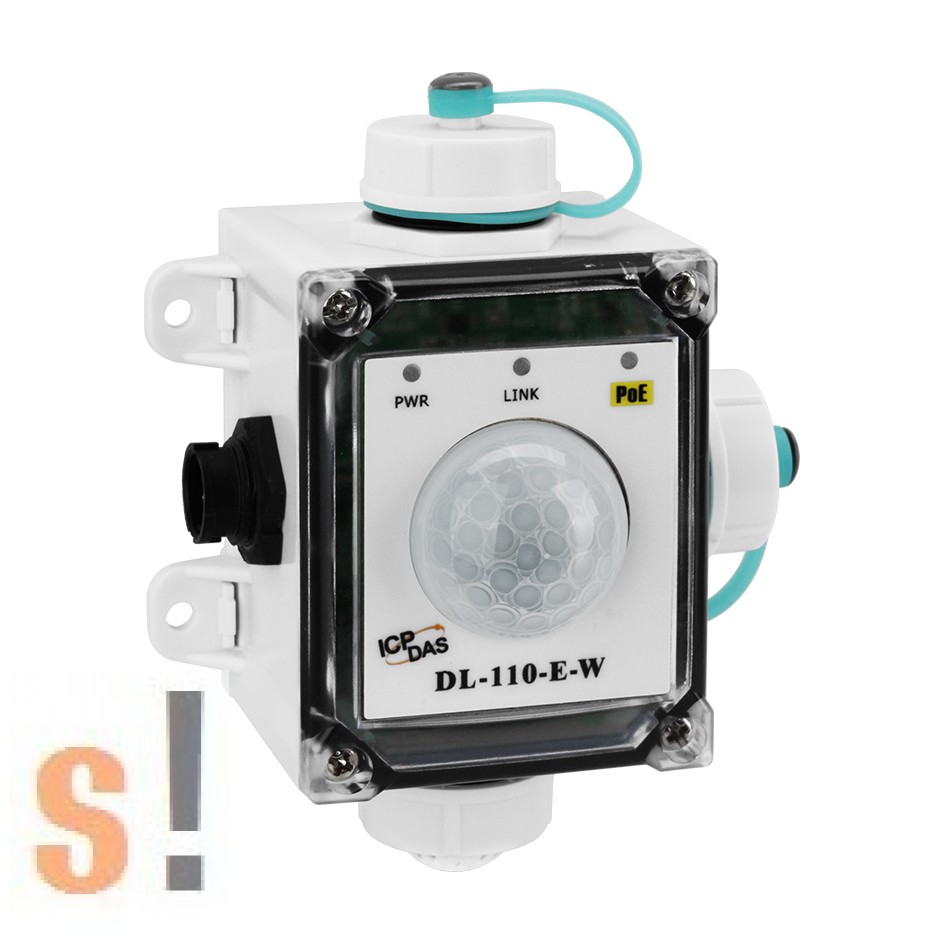

DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/ fehér/ICP CON, ICP DAS

Rendelésre 10-15 munkanap
Raktárkészlet: NINCS
DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS
76 187 Ft 96 758 Ft
  • DL-110-E-W CR # IoT adatgyűjtő/Data Logger/MQTT, Modbus RTU, Modbus TCP, DCON protokoll/Megvilágítás/Hőmérséklet/Páratartalom/PoE/DC//IP65/fehér/ICP CON, ICP DAS



  • Megvilágítás mérési tartomány: 0~100.000 Lux
  • Hőmérséklet mérési tartomány: -20 ~ +60°C
  • Páratartalom mérési tartomány: 0 ~ 100% RH
  • 600.000 record tárolása dátum és időbélyeggel, ingyenes szoftver utility, IOS app és Android app
  • DCON, Modbus RTU, Modbus TCP és MQTT protokoll támogatás
  • RS-485 és Ethernet kommunikációs portok
  • Redundáns tápfeszültség bemenet: PoE (IEEE 802.3af, Class 1) és DC (+10~30Vdc)
  • Web konfiguráció és firmware frissítés az Etherneten keresztül
  • IP 65 védettség
  • DIN sínre vagy szerelőlapra rögzíthető





  • The DL-110-E/DL-120-E are Data Logger devices that can be used to record illumination, temperature, humidity and dew point data, together with date and time stamp information. Up to 600,000 downloadable records can be stored. Real-time data can be accessed from the DL-110-E/DL-120-E device from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. The DL-110-E/DL-120-E supports popular industrial protocols such as DCON, Modbus RTU, Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-110-E/DL-120-E Data Logger can be connected using a variety of communication interfaces, including Ethernet and RS-485, meaning that the device can be easily integrated into existing HMI or SCADA systems, and are easy to maintain in a distributed control system.

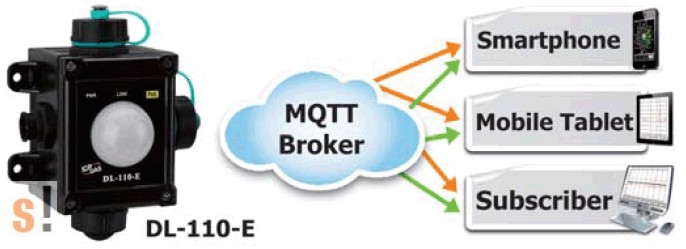

    Support the MQTT protocol for IoT Applications
    The MQTT protocol is designed for the effi cient exchange of realtime data between a sensor and a mobile device. It operates via TCP/IP and is in widest use today in "machine-to-machine" (M2M) and "Internet of Things" applications.

    Built-in Web Server
    The built-in web server provides the ability to easily log in to the DL-110-E/DL-120-E module via a standard web browser, allowing users to monitor the data and confi gure the settings without the need to install any software on the terminal.

    Free and Powerful DL300 Utility

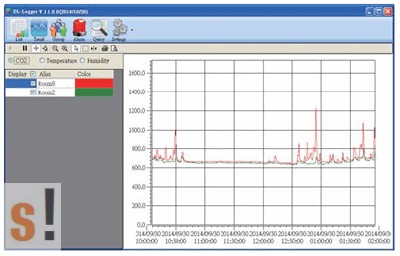

    The DL-300 Utility can be used to confi gure a module and monitor real-time data, as well as display the run chart, log alarm events, or group DL-110-E/DL-120-E modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV fi le that can then be imported into any industry-standard software or spreadsheet for analysis.

    Get Real-time Data Anywhere and Anytime

    The iAir App is a free and easy to install application for iOS or Android Phones or Tablets, and can be used to obtain real-time data from DL-110-E/DL-120-E modules over a Wi-Fi network anytime and anywhere. The iAir App can access a DL-110-E/DL-120-E module either by specifying a specific IP address or by searching for all modules connected to the same Ethernet segment

    Greenhouse Automation Cloud Management Solution
    The greenhouse automation system can use the DL series to provide environmental monitoring such as illuminance (DL-110-E/DL-120-E), temperature and humidity (DL-300/DL-100 series), etc., to make plants grow well, increase crop yield, improve quality, provide product traceability record, and control of sunshine and sprinkler systems. Install WISE-523xM-4GE IIoT smart host with iCAM series network camera can carry out greenhouse monitoring and management, provide further personnel access and thief intrusion monitoring. When finds someone intrusion, it will automatically send SMS, LINE/WeChat to the owner, security and related personnel, to quickly protect property and safety. WISE supports cloud management software IoTstar, so owners can easily build cloud management system solutions and keep with the latest situation in the greenhouse.

    Models DL-110-E DL-110-E-W DL-120-E DL-120-E-W
    Illuminance Measurement
    Range 0 to 100,000 Lux
    Resolution 1 Lux
    Accuracy ±5%
    Temperature Measurement
    Range -20 to +60°C (-31 to +176˚F)
    Resolution 0.1°C

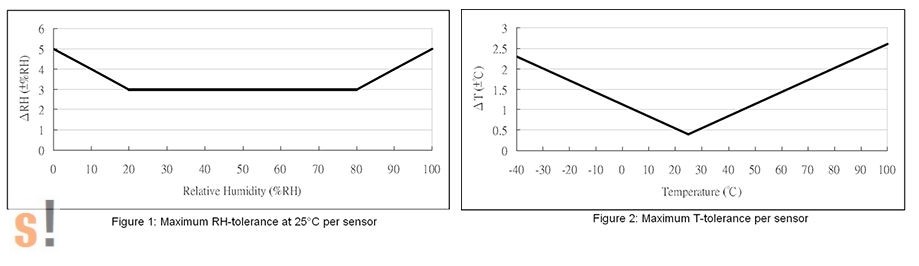

    Accuracy Typical: ±0.4°C; refer to figure 2
    Relative Humidity Measurement
    Range 0 to 100% RH
    Resolution 0.1% RH
    Accuracy Typical: ±3% RH @ 20 ~ 80% RH; refer to figure 1
    LED Indicators
    PWR System indicator (Green)
    Link Link/Act indicator (Green)
    PoE PoE indicator (Red)
    Software
    Built-in Web Server Yes
    Communication
    Ethernet Port 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating,
    Security IP filter (whitelist) and Password (web)
    Protocol Modbus TCP and MQTT (Ethernet)
    Dual Watchdog Yes, Module (2.3 seconds), Communication
    System
    Real Time Clock Yes
    Data Logger Yes, 600,000 Records
    Electrical
    Powered from Terminal Block +12 to +48 VDC
    Powered via PoE IEEE 802.3af, Class 1 (require a PoE switch or injector)
    Power Consumption PoE 1.2 W (Max.)
    Non-PoE 1.1 W (Max.)
    Mechanical
    Dimensions (W x L x H) 100 mm x 131 mm x 67 mm 100 mm x 112 mm x 67 mm
    Waterproof Level IP65
    Installation DIN-Rail or Wall mounted
    Module Housing Black Cover White Cover Black Cover White Cover
    Environment
    Operating Temperature -20 to +60˚C
    Storage Temperature -30 to +80˚C
    Ambient Relative Humidity 10 to 95% RH, Non-condensing

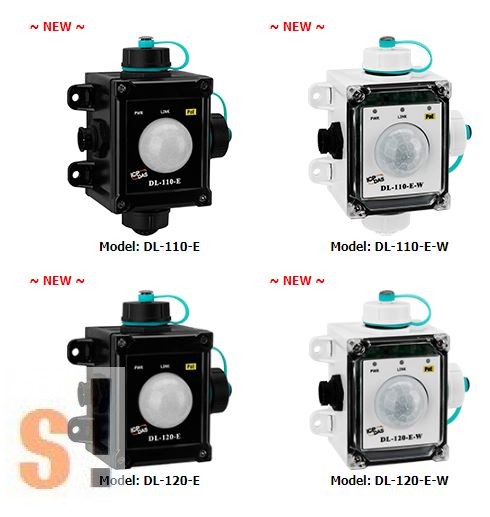

    DL-110-E CR Remote Illuminance/Temperature/Humidity/Dew Point Data Logger Module with Ethernet/RS-485 Inter face and PoE (Black Cover) (RoHS)
    DL-110-E-W CR DL-110-E with White Cover (RoHS)
    DL-120-E CR Remote Illuminance Data Logger Module with Ethernet/RS-485 Inter face and PoE (Black Cover) (RoHS)
    DL-120-E-W CR DL-120-E with White Cover (RoHS)
