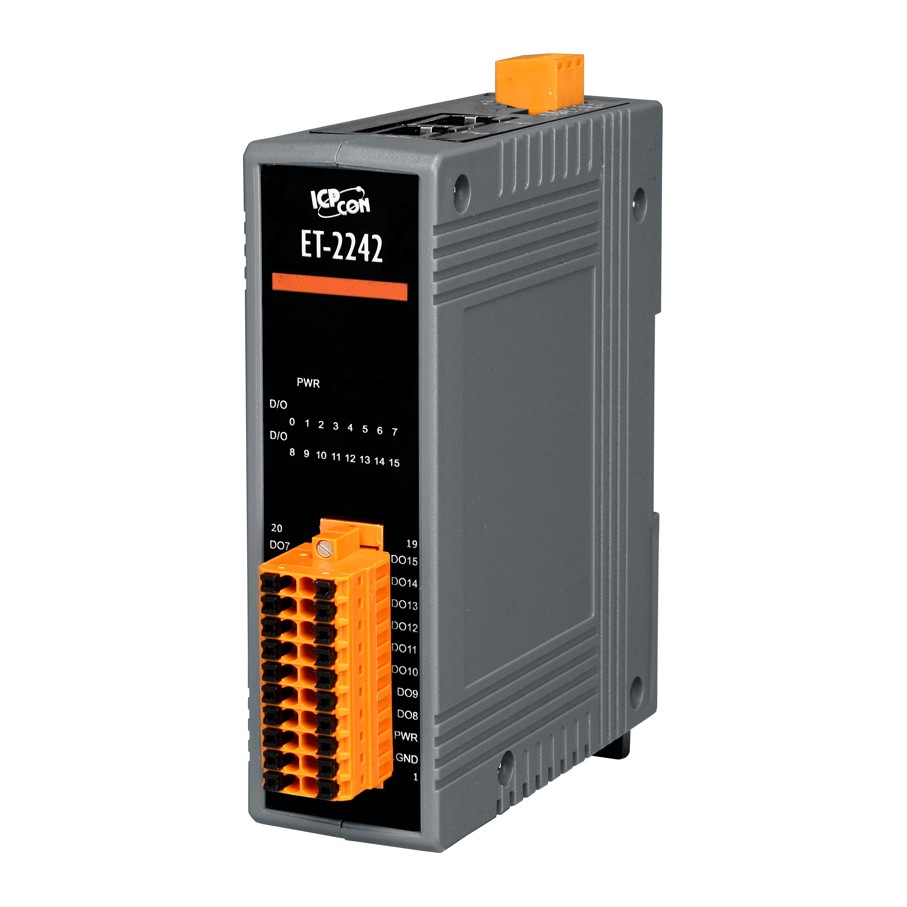

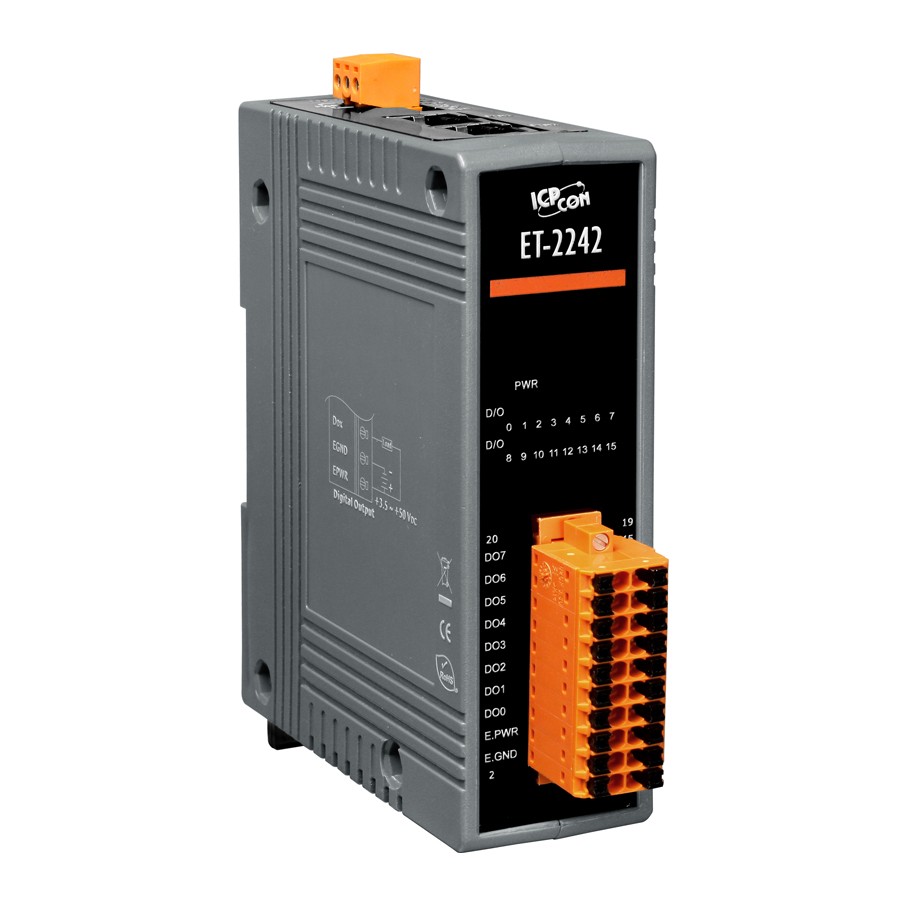

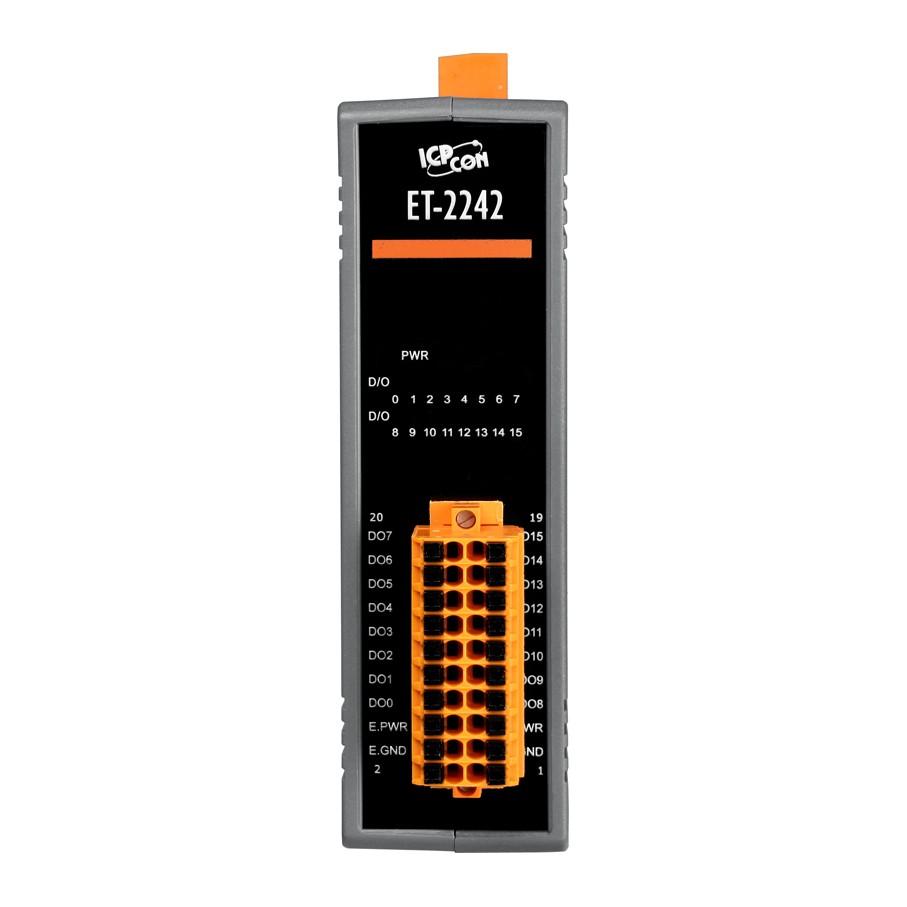

ET-2242 # Ethernet I/O Module/Modbus TCP/16DO/Open-collector, ICP DAS

Rendelésre 4-10 munkanap
Raktárkészlet: NINCS
ET-2242 # Ethernet I/O Module/Modbus TCP/16DO/Open-collector, ICP DAS
  • ET-2242 # Ethernet I/O Module/Modbus TCP/16DO/Open-collector, ICP DAS
  • ET-2242 # Ethernet I/O Module/Modbus TCP/16DO/Open-collector, ICP DAS
  • ET-2242 # Ethernet I/O Module/Modbus TCP/16DO/Open-collector, ICP DAS
  • ET-2242 # Ethernet I/O Module/Modbus TCP/16DO/Open-collector, ICP DAS
65 598 Ft 83 310 Ft
  • ET-2242
  • Ethernet I/O Module with 16-ch Open Collector Digital Output
  • 16 nyitott kollektoros digitális kimenet: nyitott kollektor, sink, 650 mA/ch
  • Dupla watchdog
  • Keskeny kivitel (3,3 cm)
  • LED kijelző
  • I/O pár csatlakozás
  • 2 portos Ethernet switch
  • Modbus TCP, Modbus UDP protokoll
  • Beépített web szerver
  • Széles működési hőmérséklet tartomány: -25 ~ +75°C
  • ET-2242 CR Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Open Collector Digital Output (RoHS)
    Providing various digital I/O functions, the ET-2242 module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2242 module perfect integration with the HMI, SCADA, PLC and other software systems.

    The ET-2242 provides 16 Digital Output channels, each of which features photo couple isolation. The ET-2242 supports sink type output with short circuit protection and each channel can drive 650 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2242 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3750 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments.

    The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2242 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.

    It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
    • Factory, Building and Home Automation
    • Remote Maintenance
    CPU 32-bit ARM

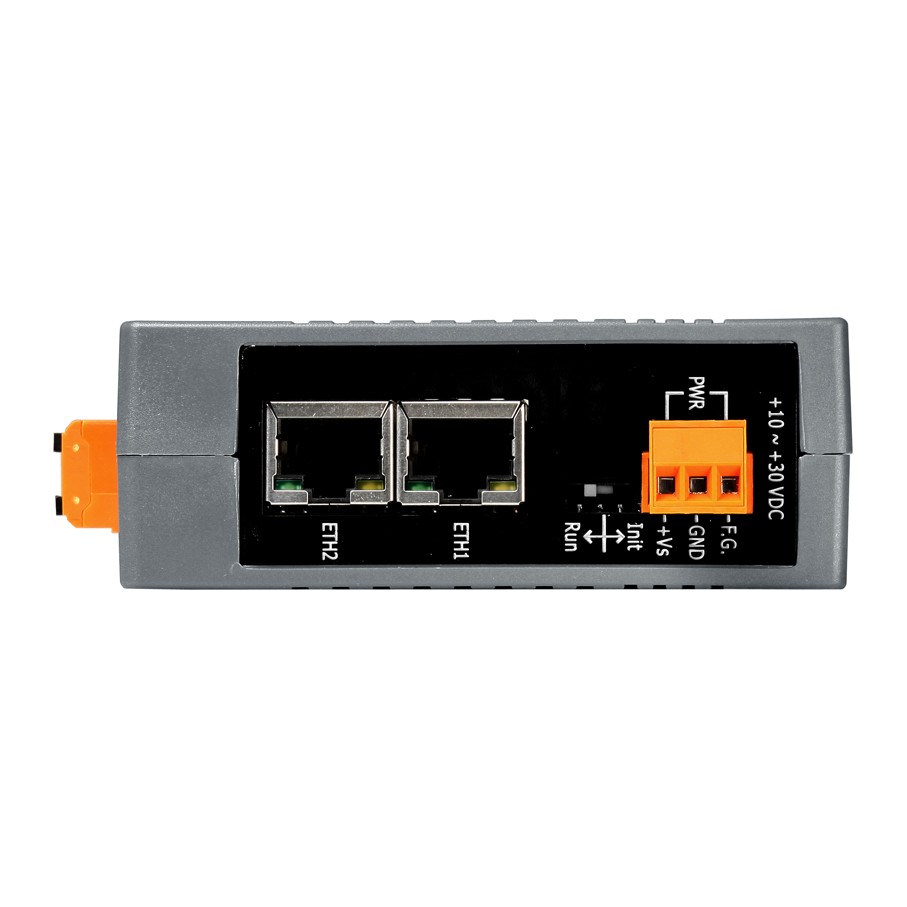

    Ethernet Port 2 x RJ-45, 10/100 Base-Tx, Switch Ports
    Protocol Modbus TCP, Modbus UDP
    Security Password and IP Filter
    I/O Pair Connection Yes (Push, Polling)
    Dual Watchdog Yes, Module, Communication (Programmable)
    LAN Bypass Yes
    LED Indicators
    For System Running Yes
    For Ethernet Link/Ack Yes
    For DI/DO status Yes
    2-way Isolation
    Ethernet 1500 VDC
    I/O 3750 VDC
    EMS Protection
    ESD (IEC 61000-4-2) ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point
    EFT (IEC 61000-4-4) ±4 kV for Power Line
    Surge (IEC 61000-4-5) ±3 kV for Power Line
    Power Requirements
    Reverse Polarity Protection Yes
    Powered from Terminal Block +10 ~ +30 VDC
    Consumption 3.2 W (Max.)
    Dimensions (L x W x H) 127 mm x 33 mm x 99 mm
    Installation DIN-Rail or Wall mounting
    Operating Temperature -25 ~ +75°C
    Storage Temperature -30 ~ +80°C
    Humidity 10 ~ 90% RH, Non-condensing
    Digital Output
    Channels 16
    Type Open Collector
    Sink/Source Sink
    Load Voltage +3.5 VDC ~ +50 VDC
    Max. Load Current 650 mA/Channel
    Overload Protection 1.4 A (with short-circuit protection)
    Overvoltage Protection +60 VDC
    ET-2242 CR Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Open Collector Digital Output (RoHS)
