ET-2260 CR |

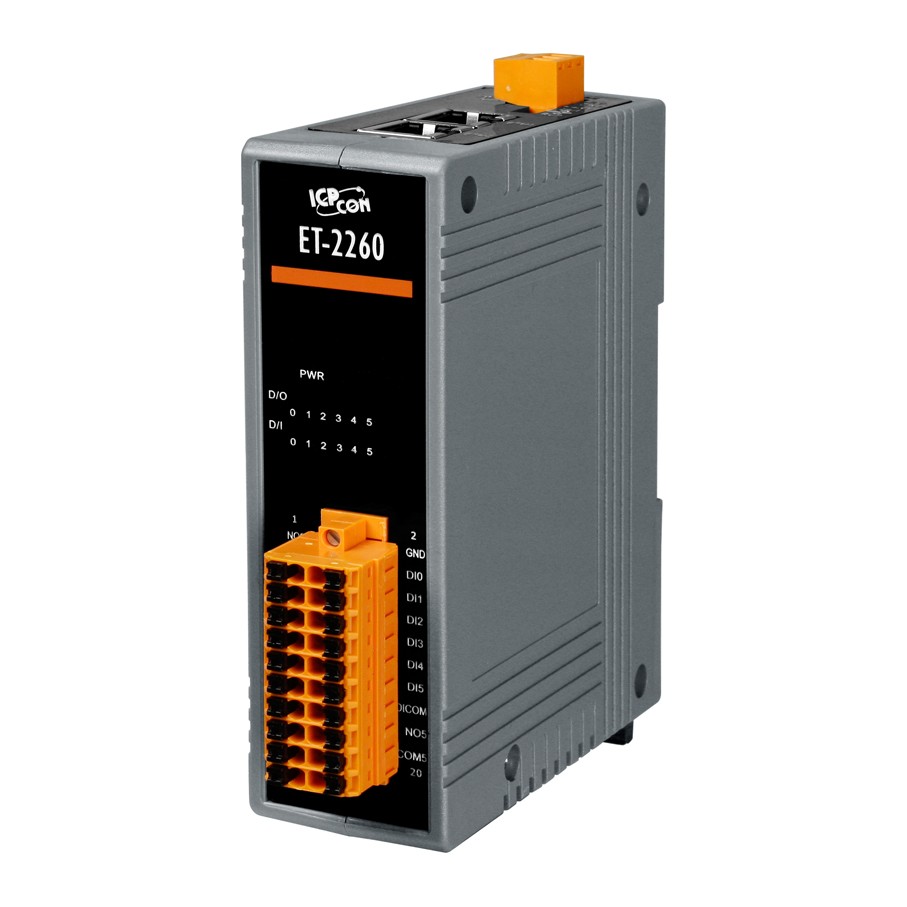

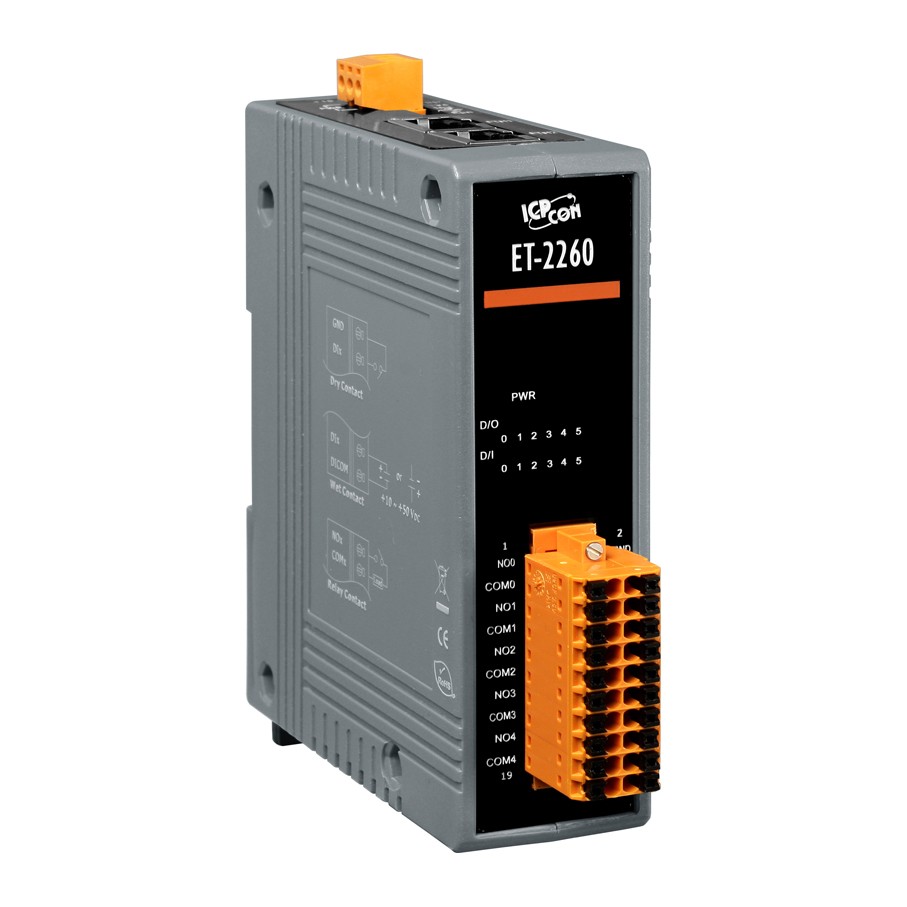

Ethernet I/O Module with 2-port Ethernet Switch, 6-ch Relay Output and 6-ch DI (RoHS) |
Providing various digital I/O functions, the ET-2260 module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2260 module perfect integration with the HMI, SCADA, PLC and other software systems.
The ET-2260 provides 6 wet contact Digital Input channels and 6 Form A electromechanical Relays. With 2 Ethernet ports, the ET-2260 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3750 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. Each input channel can be used as a 32-bit counter. The power-on value and safe value of relay are configurable.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2260 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.
It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
|
|
|
- Factory, Building and Home Automation
- Remote Maintenance
|
|
|
System |
CPU |
32-bit ARM |
Communication |
Ethernet Port |
2 x RJ-45, 10/100 Base-Tx, Switch Ports |
Protocol |
Modbus TCP, Modbus UDP |
Security |
Password and IP Filter |
I/O Pair Connection |
Yes (Push, Polling) |
Dual Watchdog |
Yes, Module, Communication (Programmable) |
LAN Bypass |
Yes |
LED Indicators |
For System Running |
Yes |
For Ethernet Link/Ack |
Yes |
For DI/DO status |
Yes |
2-way Isolation |
Ethernet |
1500 VDC |
I/O |
3750 VDC |
EMS Protection |
ESD (IEC 61000-4-2) |
±8 kV Contact for Each Terminal and ±16 kV Air for Random Point |
EFT (IEC 61000-4-4) |
±4 kV for Power Line |
Surge (IEC 61000-4-5) |
±3 kV for Power Line |
Power Requirements |
Reverse Polarity Protection |
Yes |
Powered from Terminal Block |
+10 ~ +30 VDC |
Consumption |
3.3 W (Max.) |
Mechanical |
Dimensions (L x W x H) |
127 mm x 33 mm x 99 mm |
Installation |
DIN-Rail or Wall mounting |
Environmental |
Operating Temperature |
-25 ~ +75°C |
Storage Temperature |
-30 ~ +80°C |
Humidity |
10 ~ 90% RH, Non-condensing |
|
|
|
Digital Input/Counter |
Channels |
6 |
Contact |
Wet Contact |
Sink/Source (NPN/PNP) |
Sink/Source |
On Voltage Level |
+5 VDC ~ +50 VDC |
Off Voltage Level |
+ 3.5 VDC Max. |
Input Impedance |
7.5 kΩ |
Counters |
Max. Count |
4,294,967,295 (32 bits) |
Max. Input Frequency |
3 kHz |
Programmable Digital Filter |
1 ~ 6500 ms (0.08 Hz ~ 500 Hz) |
Overvoltage Protection |
+70 VDC |
Power Relay |
Channels |
6 |
Type |
Power Relay, Form A (SPST N.O.) |
Contact Rating |
5 A @ 250 VAC/24 VDC (Resistive Load) |
Min. Contact Load |
10 mA @ 5 V |
Operate Time |
10 ms (max.) |
Release Time |
5 ms (max.) |
Mechanical Endurance |
2 × 107 ops. |
Electrical Endurance |
105 ops. |
Power-On Value |
Yes, Configurable |
Safe Value |
Yes, Configurable |
|
|
|
