GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS

Rendelésre 4-10 munkanap
Raktárkészlet: NINCS
GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 CR # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
  • GRP-520 CR # 3G Gateway (RoHS)



  • EOL  - kifutott termék - ajánlott helyettesítő ->>>  GRP-530M
  • Embedded Linux system.
  • Support Tri-band WCDMA 2100/1900/850 MHz and Quad-band GSM 850 / 900 / 1800 / 1900 MHz.
  • 10/100 Base-TX compatible ethernet eontroller
  • COM port: COM1 (3-wire RS232), COM2 (RS-485), COM3 (3-wire RS232)
  • GPS : 32 channels with All-In-View tracking (option)
  • Support Micro SD card.

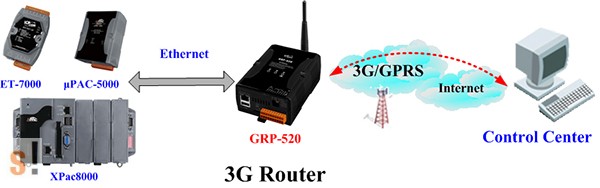

  • Provide 3G Router function.
  • Support port mapping function.
  • Provide Serial Port to 3G Gateway.
  • High reliability in harsh environments
  • DIN-Rail mountable
  • GRP-520 CR # 3G Router/Gateway/3G-1x RS-232/1x RS-485/1x Ethernet, ICP DAS
    GRP-520 CR # 3G Gateway (RoHS)

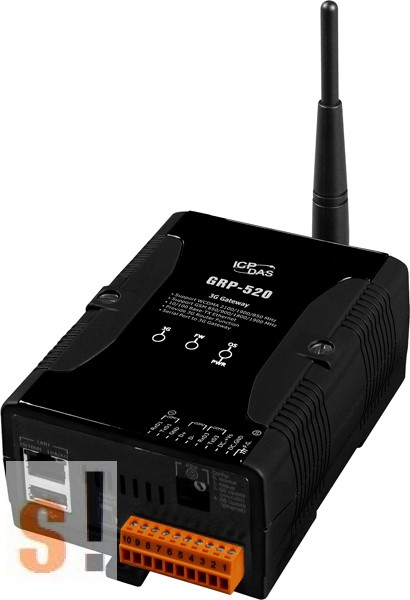

    The GRP-520 provided by ICP DAS is a 3G gateway for Ethernet or serial port. With optional GPS model, the GRP-520 can also be a GPS tracking system. It can be used in M2M application fields to transfer the remote I/O, Modbus data or video of the camera via 3G/2G. Within the high performance CPU, the GRP-520 series can handle a large of data and are suit for the hard industrial environment. The GRP-520 series have 3G module, Ethernet interface, and optional GPS module.

    Item
    GRP-520
    System / Software
    3G Gateway Ethernet and Serial port (1x RS-232, 1x RS-485) to 3G
    Embedded service Web Server, 3G router
    System
    CPU
    ARM CPU (312MHz)
    SRAM
    64 MB
    Flash
    64 MB
    EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
    Expansion Flash Memory SD Card (Max. 32GB SDHC)
    Expansion Disk USB disk (format : FAT32)
    RTC(Real Time Clock) Provide seconds, minutes, hours, day of week/month, month and year
    64-bit Hardware Serial Number Yes
    Watchdog Timer Yes
    LED Indicator
    3 LEDs (SYS/PWR, F.W., 3G)
    Rotary Switch
    Yes (0~9)
    GSM System
    Frequency Band
    GSM : 850/900/1800/1900 MHz
    GPRS connectivity
    GPRS class 12/10; GPRS station class B
    DATA GPRS
    Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps
    3G System
    Frequency Band
    WCDMA 2100/1900/850 MHz
    Data Transmission

    WCDMA / HSDPA / HSUPA

    Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps

    GPS System (option)
    Support Channels
    32
    Protocol Support
    NMEA 0183 version 3.01
    Comm. Interface
    Ethernet

    RJ-45, 10/100 Base-TX

    (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
    COM1
    RS-232 (RxD, TxD and GND); Non-isolated(Console)
    COM2
    RS-485 (D2+, D2-); 3000 VDC isolated
    COM3
    RS-232 (RxD, TxD and GND); Non-isolated
    Mechanism
    Casing
    Plastic
    Dimensions(W x L x H) 91 mm x 132 mm x 52 mm (W x L x H)
    Installation DIN-Rail
    Power
    Protection Power reverse polarity protection
    Frame Ground Protection ESD, Surge, EFT, Hi-Pot
    Required Supply Voltage +10 VDC  ~ +30 VDC
    Power Consumption 4.8W ( 200 mA @ 24 VDC)
    Environment
    Operation Temp. -25℃ to 75℃
    Storage Temp. -30℃ to 80℃
    Humidity
    5~95% non-condensing



    VxServer
    Virtual Com middleware software
    http://m2m.icpdas.com/VxServer.html
    VxComm Driver
