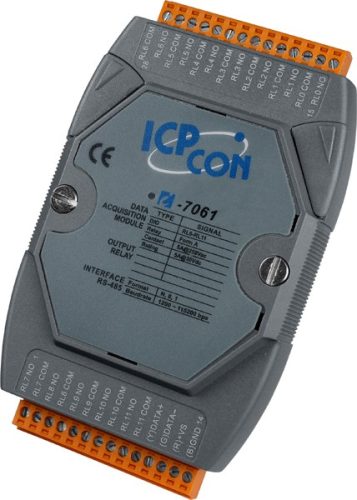

| I-7061-G CR |
12-channel Power Relay Output Module with DCON Protocol (Gray Cover) (RoHS) |
| I-7061D-G CR |
I-7061 with LED Display (Gray Cover) (RoHS) |
| M-7061-G CR |
12-channel Power Relay Output Module with DCON and Modbus Protocols (Gray Cover) (RoHS) |
| M-7061D-G CR |
M-7061 with LED Display (Gray Cover) (RoHS) |
| I-7067 CR |
7-channel Signal Relay Output Module with DCON Protocol (Blue Cover) (RoHS) |
| I-7067D CR |
I-7067 with LED Display (Blue Cover) (RoHS) |
| I-7067D-G CR |
I-7067 with LED Display (Gray Cover) (RoHS) |
| M-7067-G CR |
7-channel Signal Relay Output Module with DCON and Modbus Protocols (Gray Cover) (RoHS) |
| M-7067D-G CR |
M-7067 with LED Display (Gray Cover) (RoHS) |
|
The 7061 series provides 12 power relay output channels and the 7067 series provides 7 signal relay output channels. There are options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities in industrial environment. The “D” versions of the 7061 series provide 12 LED indicators and the “D” versions of the 7067 series provide 7 LED indicators that can be used to monitor the status of the relay output channels. The “M” versions of each series support both the Modbus RTU and DCON protocols, which can be configured via software. The 7061 series are the ideal solution for high power applications and the 7067 series are the ideal solution for small signal switching.
|
| |
|
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
|
| |
|
| Models |
I-7061 |
I-7067 |
M-7061 |
M-7067 |
| I-7061D |
I-7067D |
M-7061D |
M-7067D |
| Relay Output |
| Channels |
12 (Form A) |
7 (Form A) |
12 (Form A) |
7 (Form A) |
| Relay Type |
Power Relay |
Signal Relay |
Power Relay |
Signal Relay |
| Form A Relay |
Contact Rating |
5 A @ 250 VAC
5 A @ 30 VDC |
0.5 A @ 120 VAC
1 A @ 24 VDC |
5 A @ 250 VAC
5 A @ 30 VDC |
0.5 A @ 120 VAC
1 A @ 24 VDC |
| Min. Contact Load |
10 mA @ 5 V |
1 mA @ 1 V |
10 mA @ 5 V |
1 mA @ 1 V |
| Contact Material |
Silver TinAlloy |
Gold overlay silver palladium |
Silver TinAlloy |
Gold overlay silver palladium |
| Operate Time |
10 ms |
5 ms |
10 ms |
5 ms |
| Release Time |
5 ms |
2 ms |
5 ms |
2 ms |
| Mechanical Endurance |
2 x 107 ops. |
5 × 106 ops. |
2 × 107 ops. |
5 × 106 ops. |
| Electrical Endurance |
105 ops. |
| Surge Strength |
3000 VDC |
1500 VDC |
3000 VDC |
1500 VDC |
| Power-on Value |
Yes |
| Safe Value |
Yes |
|
| |
|
| Models |
I-7061 |
I-7067 |
M-7061 |
M-7067 |
| I-7061D |
I-7067D |
M-7061D |
M-7067D |
| Communication |
| Interface |
RS-485 |
| Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
DCON |
Modbus RTU, DCON |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator/Display |
| System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
| I/O LED Indicators |
- |
| Yes, 12 LEDs as Digital Input/Relay Output Indicators |
Yes, 7 LEDs as Digital Input/Relay Output Indicators |
Yes, 12 LEDs as Digital Input/Relay Output Indicators |
Yes, 7 LEDs as Digital Input/Relay Output Indicators |
| 7-Segment LED Display |
- |
| Isolation |
| Intra-Module Isolation, Field-to-Logic |
3750 VDC |
1500 VDC |
3750 VDC |
1500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
±2 kV for Power Line |
±4 kV for Power Line |
±2 kV for Power Line |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
- |
±3 kV for Power Line |
- |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
10 ~ 30 VDC |
| Consumption |
1.7 W |
1.5 W |
1.7 W |
1.5 W |
| 2.3 W |
1.9 W |
2.3 W |
1.9 W |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +85°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
|
| |
|
| I-7061-G CR |
12-channel Power Relay Output Module with DCON Protocol (Gray Cover) (RoHS) |
| I-7061D-G CR |
I-7061 with LED Display (Gray Cover) (RoHS) |
| M-7061-G CR |
12-channel Power Relay Output Module with DCON and Modbus Protocols (Gray Cover) (RoHS) |
| M-7061D-G CR |
M-7061 with LED Display (Gray Cover) (RoHS) |
| I-7067 CR |
7-channel Signal Relay Output Module with DCON Protocol (Blue Cover) (RoHS) |
| I-7067D CR |
I-7067 with LED Display (Blue Cover) (RoHS) |
| I-7067D-G CR |
I-7067 with LED Display (Gray Cover) (RoHS) |
| M-7067-G CR |
7-channel Signal Relay Output Module with DCON and Modbus Protocols (Gray Cover) (RoHS) |
| M-7067D-G CR |
M-7067 with LED Display (Gray Cover) (RoHS) |
|
| |
