I-7065 # I/O Module/DCON/5 Relay/4DI, ICP DAS, ICP CON

Raktáron (szállítás 2-4 nap)
Rendelésre 4-10 munkanap
Raktárkészlet: VAN
I-7065 # I/O Module/DCON/5 Relay/4DI, ICP DAS, ICP CON
  • I-7065 # I/O Module/DCON/5 Relay/4DI, ICP DAS, ICP CON
  • I-7065 # I/O Module/DCON/5 Relay/4DI, ICP DAS, ICP CON
  • I-7065 # I/O Module/DCON/5 Relay/4DI, ICP DAS, ICP CON
30 700 Ft 38 989 Ft
  • I-7063/I-7063D
  • 8-channel Isolated Digital Input and 3-channel Relay Output Module
  • I-7065(D) és M-7065(D)
  • 4-channel Isolated Digital Input and 5-channel Relay Output Module
  • I-7063(D)
  •    8 digitális bemenet és 3 relé kimenet
  • I-7065(D) és M-7065(D)
  •    4 digitális bemenet és 5 relé kimenet
  • Form A teljesítmény relé kimenet
  • Sink és Source típusú digitális bemenet
  • Minden digitális bemeneti csatorna használható 16-bites számlálóként
  • Konfigurálható Power-on érték
  • Konfigurálható Safe Value
  • Dual Watchdog
  • Széles működési hőmérséklet tartomány: -25 ~ +75°C
  • Modbus RTU és DCON protokoll (M-7000)
  • DCON protokoll (I-7000)
  • I-7063 CR 8-channel Isolated Digital Input and 3-channel Relay Output Module using the DCON Protocol (Blue Cover) (RoHS)
    I-7063D CR I-7063 with LED Display (Blue Cover) (ROSH)
    I-7065 CR 4-channel Isolated Digital Input and 5-channel Relay Output Module using the DCON Protocol (Blue Cover) (RoHS)
    I-7065-G CR 4-channel Isolated Digital Input and 5-channel Relay Output Module using the DCON Protocol (Gray Cover) (RoHS)
    I-7065D CR I-7065 with LED Display (Blue Cover) (ROSH)
    I-7065D-G CR I-7065-G with LED Display (Gray Cover) (ROSH)
    M-7065-G CR 4-channel Isolated Digital Input and 5-channel Relay Output Module using the DCON and Modbus Protocols (Gray Cover) (RoHS)
    M-7065D-G CR M-7065-G with LED Display (Gray Cover) (ROSH)

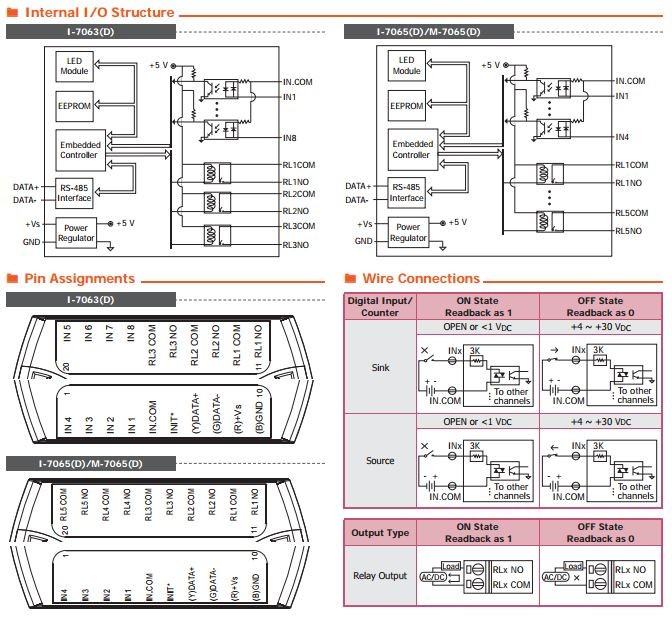

    The I-7063 module provides 8 digital input channels and 3 Form A relay output channels, and the 7065 series provides 4 digital input channels and 5 Form A relay output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The I-7063D provides 11 LED indicators and the I-7065D/M-7065D provides 9 LED indicators that can be used to monitor the status of the digital input and relay output. The M-7065 supports both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.

    • Building Automation
    • Factory Automation
    • Machine Automation
    • Remote Maintenance
    • Remote Diagnosis
    • Testing Equipment

    Models I-7063/I-7063D I-7065/I-7065D M-7065/M-7065D
    Relay Output
    Channels 3 5
    Relay Type Power Relay
    Form A Relay Contact Rating 5 A @ 250 VAC
    5 A @ 30 VDC
    Min. Contact Load 10 mA @ 5 V
    Contact Material Gold-plated Silver Cadmium Alloy
    Operate Time 6 ms
    Release Time 3 ms
    Mechanical Endurance 2 × 107 ops.
    Electrical Endurance 1 × 105 ops.
    Surge Strength 4000 VDC
    Power-on Value Yes
    Safe Value Yes
    Digital Input
    Channels 8 4
    Type Dry Contact -
    Wet Contact Sink/Source
    Wet Contact On Voltage Level +1 VDC Max.
    Off Voltage Level +4 ~ 30 VDC
    Dry Contact On Voltage Level -
    Off Voltage Level -
    Effective Distance
    for Dry Contact
    -
    Counters Max. Count 65535 (16-bit)
    Max. Input Frequency 100 Hz
    Min. Pulse Widt 5 ms
    Input Impedance 3 kΩ
    Channel-to-Channel Isolation -
    Overvoltage Protection ±35 VDC

    Models I-7063 I-7063D I-7065 I-7065D M-7065 M-7065D
    Communication
    Interface RS-485
    Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
    Baud Rate 1200 ~ 115200 bps
    Protocol DCON Modbus RTU, DCON
    Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
    LED Indicator/Display
    System LED Indicator Yes, 1 LED as Power/Communication Indicator
    I/O LED Indicators - Yes, 11 LEDs as
    Digital Input/
    Relay Output
    Indicators
    - Yes, 9 LEDs as
    Digital Input/
    Relay Output
    Indicators
    - Yes, 9 LEDs as
    Digital Input/Relay
    Output Indicators
    7-Segment LED Display -
    Isolation
    Intra-Module Isolation, Field-to-Logic 3750 VDC
    EMS Protection
    ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
    ±8 kV Air for Random Point
    EFT (IEC 61000-4-4) ±2 kV for Power Line
    Surge (IEC 61000-4-5) -
    Power
    Reverse Polarity Protection Yes
    Input Range 10 ~ 30 VDC
    Consumption 0.9 W 1.4 W 1.3 W 1.8 W 1.3 W 1.8 W
    Mechanical
    Dimensions (W x L x H) 72 mm x 123 mm x 35 mm
    Installation DIN-Rail or Wall Mounting
    Environment
    Operating Temperature -25 ~ +75°C
    Storage Temperature -40 ~ +85°C
    Humidity 10 ~ 95% RH, Non-condensing

    I-7063 CR 8-channel Isolated Digital Input and 3-channel Relay Output Module using the DCON Protocol (Blue Cover) (RoHS)
    I-7063D CR I-7063 with LED Display (Blue Cover) (ROSH)
    I-7065 CR 4-channel Isolated Digital Input and 5-channel Relay Output Module using the DCON Protocol (Blue Cover) (RoHS)
    I-7065-G CR 4-channel Isolated Digital Input and 5-channel Relay Output Module using the DCON Protocol (Gray Cover) (RoHS)
    I-7065D CR I-7065 with LED Display (Blue Cover) (ROSH)
    I-7065D-G CR I-7065-G with LED Display (Gray Cover) (ROSH)
    M-7065-G CR 4-channel Isolated Digital Input and 5-channel Relay Output Module using the DCON and Modbus Protocols (Gray Cover) (RoHS)
    M-7065D-G CR M-7065-G with LED Display (Gray Cover) (ROSH)
