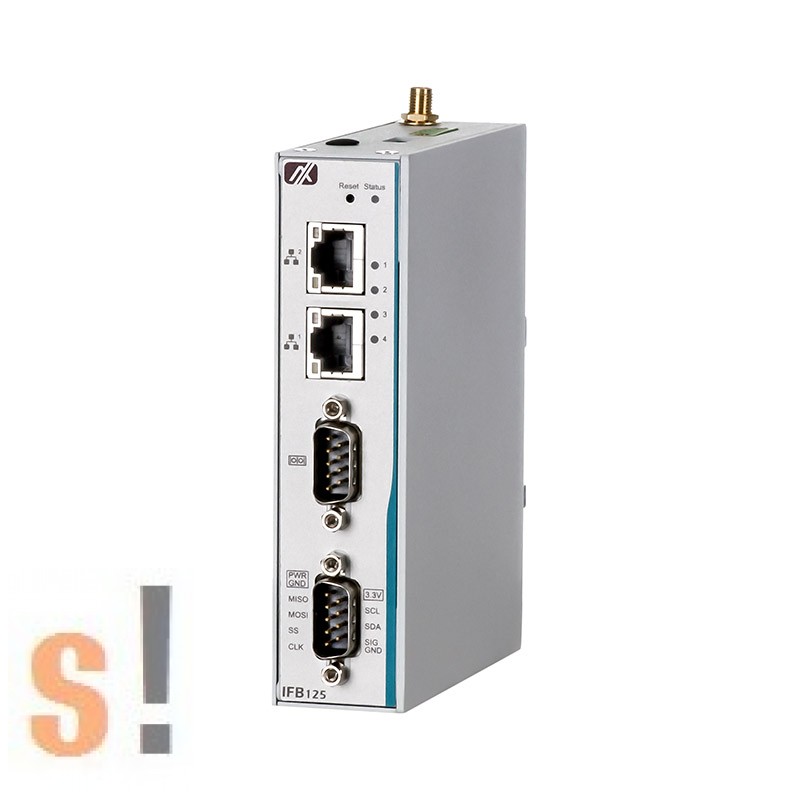

The IFB125 utilizes the low power RISC-based (i.MX6UL) processor and is designed to
withstand temperatures ranging from -40°C to +70°C for using in extreme operating
environment and industrial automation applications.
The IFB125 features one SPI, one I2C, one RS-232/422/485 serial port, dual LANs, two
digital input channels, one digital output channel, LED for user programming and one
eMMC onboard 8GB. Its vertical form factor makes it easy to install in a small cabinet.
The ready-to-run IFB125 is specially designed for remote control/monitoring management
applications like unmanned control room, industrial machine, automatic parking lot,
traffic cabinet and more.
| CPU |
- NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
|
| Chipset |
|
| System Memory |
|
| COM |
|
| USB |
|
| Ethernet |
|
| PoE |
|
| CANbus |
|

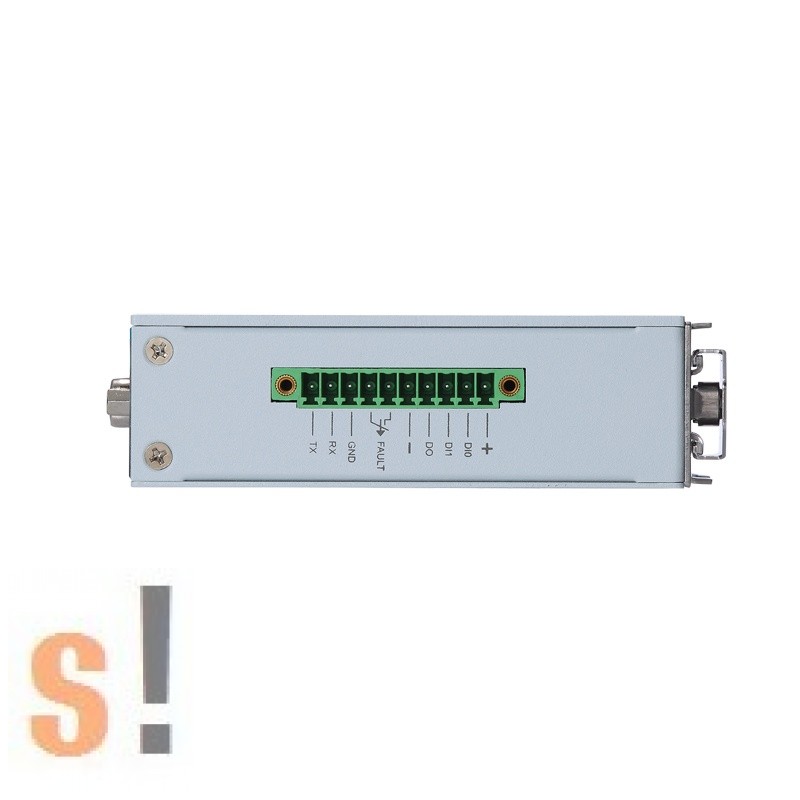

| Digital I/O |
|
| Analog Input |
|
| Display |
|
| Wireless |
- 1 x PCI Express Mini Card slot (USB signal only)
- 1 x SIM card socket
|
| Storage |
- 1 x eMMC 8GB flash onboard
|
| Others |
- SPI (DB9 connector)
- I2C (DB9 connector)
- 1 x EEPPROM (2 Kb)
- 1 x Relay
- Console port
- RTC
|
| Power Supply |
- 9 to 48 VDC power input range
|
| Watchdog Timer |
- WDT 1: 0.5 to 128 seconds with a time resolution of 0.5 seconds
|
| Construction |
- Extruded aluminum and heavy-duty steel, IP40
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F)
|
| Relative Humidity |
|
| Vibration |
- 5 Gms @ (10 to 150Hz random; operation)
|
| Dimensions (W x D x H) |
- 31 x 100 x 125 mm (1.22" x 3.94" x 4.92")
|
| Weight (net/gross) |
- 0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
|
| Certifications |
- FCC Part 15
- Heavy Industrial CE
|
| EOS Support |
- Toolchain/Cross compiler: Yocto
- Kernel: 3.14.52 (with NXP and Axiomtek hardware modified patch)
|

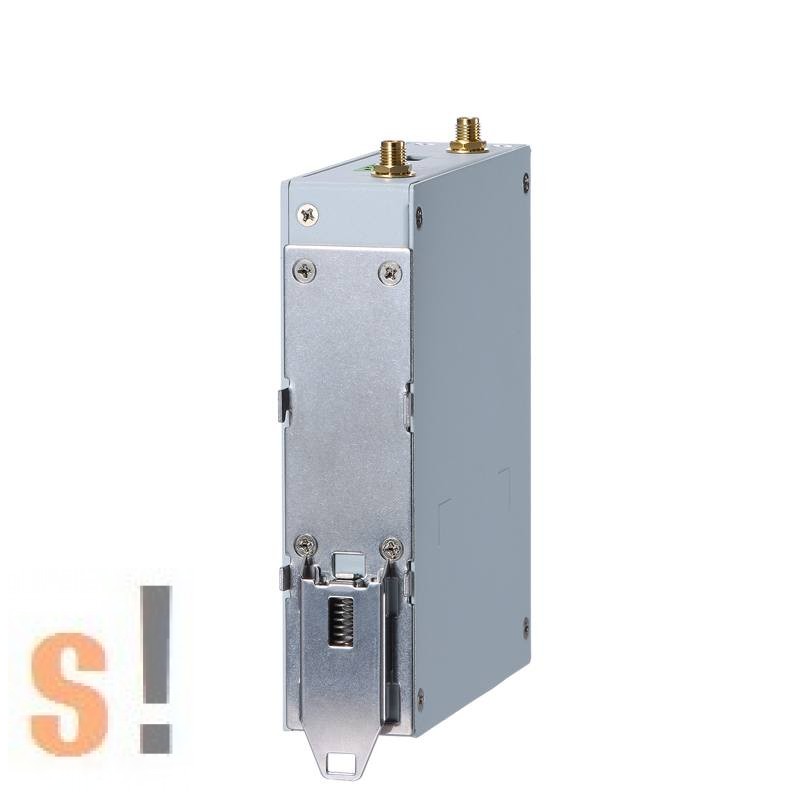

| Mounting |
|
