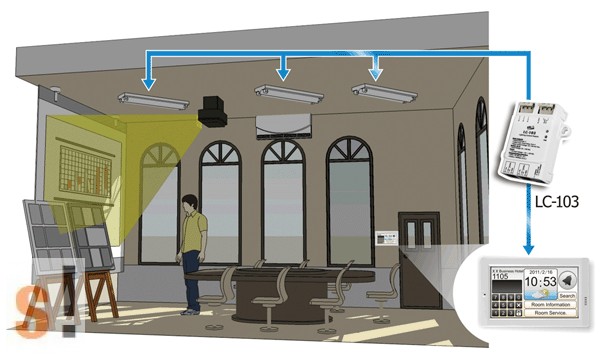

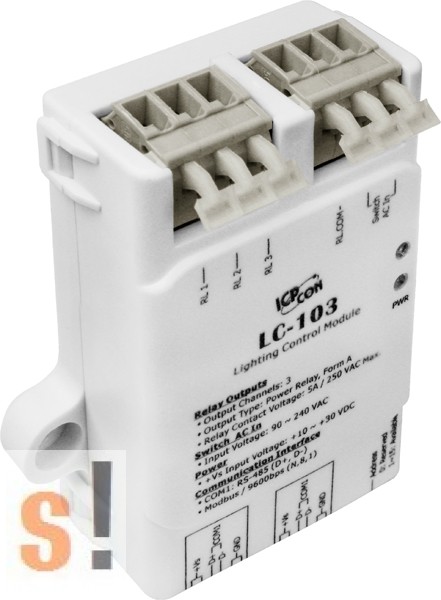

The LC-103 is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.

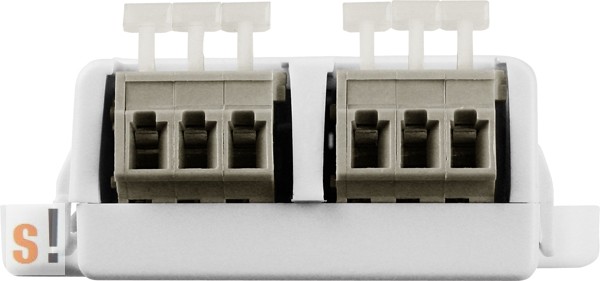

The LC-103 provides 1 channel for digital input (photo couple isolation) and 3 channels for relay output. All output channels are form A type relays, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 3-channel relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.

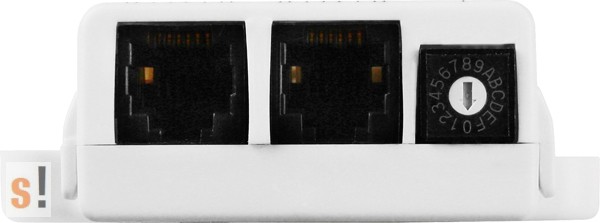

When required, communication with the LC-103 is programmable based on the Modbus RTU protocol, and an added benefit is that different addresses can be set for Modbus RTU communication via hardware configuration.
Warning
Do not use the LC-103 to connect to any device where the loading is greater than 80 W per channel, as this may cause the module to malfunction.
ICP DAS cannot be held responsible for any damage or injuries that may result from inappropriate usage, and any such usage may cause your warranty to be voided.
| Digital Input |
| Input Channels |
1 |
| Type |
90 ~ 240 VAC |
| On Voltage Level |
85 VAC |
| Off Voltage Level |
60 VAC |
| Input Impedance |
68 KΩ, 1 W |
| Isolation |
5000 Vrms |
| Function |
Local and Remote Direct Control Relay ON/OFF and Remote Status Monitoring |
| Relay Output |
| Output Channels |
3 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Operating Voltage |
250 VAC or 30 VDC |
| Max. Load Current |
5 A |
| Operating Time |
10 ms Max. |
| Release Time |
5 ms Max. |
| Electrical Life (Resistive load) |
100,000 ops |
| Mechanical Life |
20,000,000 ops at no load (300 ops/minute) |
| Power-on Value |
No |
| Safe Value |
No |
| Communication |
| Interface |
RS-485 |
| Format |
N, 8, 1 |
| Baud Rate |
9600 bps |
| Protocol |
Modbus RTU/DCON |
| Node Addresses |
1 ~ 31 |
| Connector |
RJ-11(6P4C or 6P6C) |
| LED Display |
| Power |
1 LED as Power Indicator |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±2 kV Contact for Each Terminal |
| ±4 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±2 kV for Power |
| Power Requirements |
| Input Voltage Range |
10 ~ 30 VDC |
| Consumption |
0.5 W Max. |
| Connector |
RJ-11 |
| Mechanical |
| Dimensions (W x L x H) |
52 mm x 98 mm x 27 mm |
| Installation |
Screw Mounting |
| Environment |
| Operating Temperature |
-25°C ~ +75°C |
| Storage Temperature |
-30°C ~ +75°C |
| Humidity |
10 ~ 95% RH, Non-condensing |

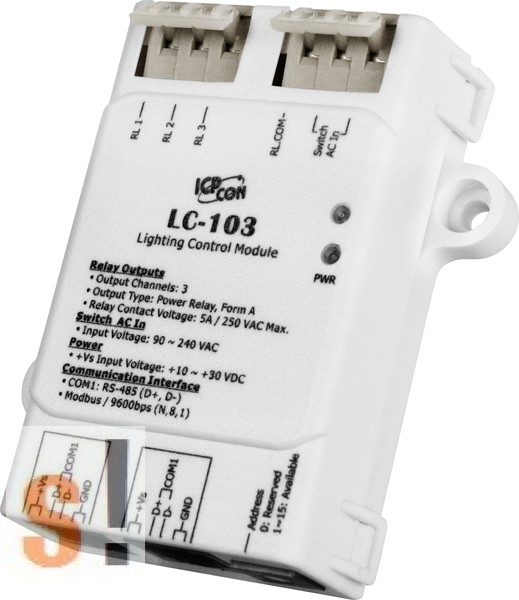

| LC-103 CR |
1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module (RoHS) |
