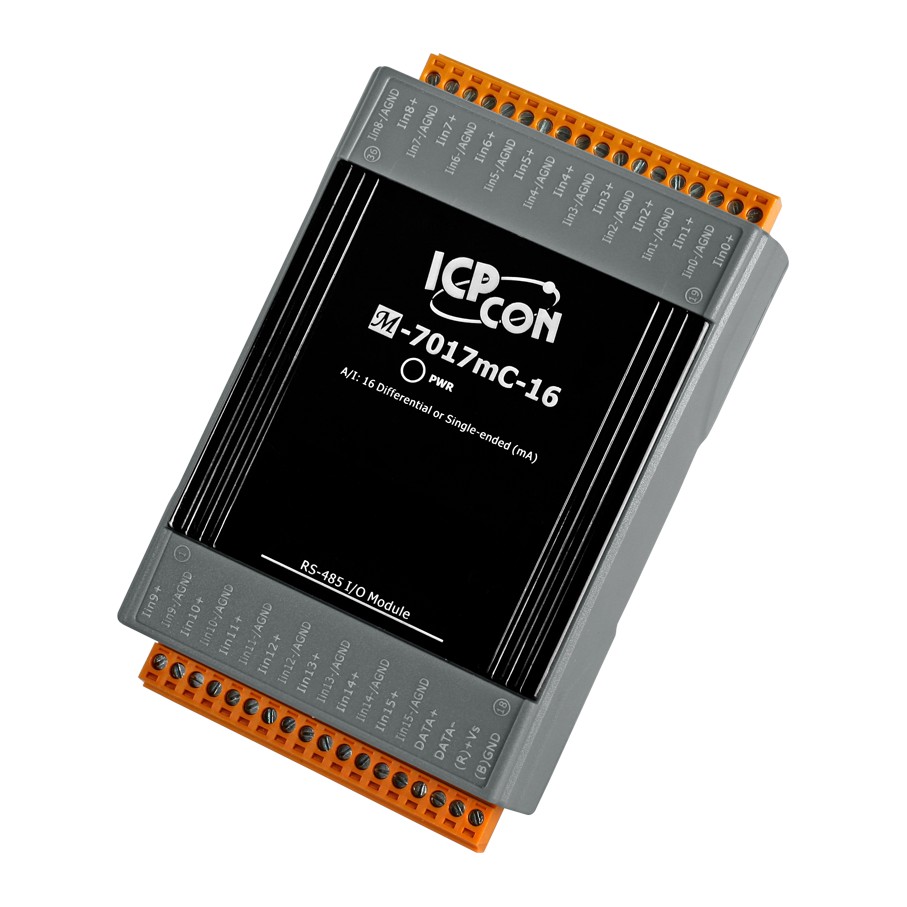

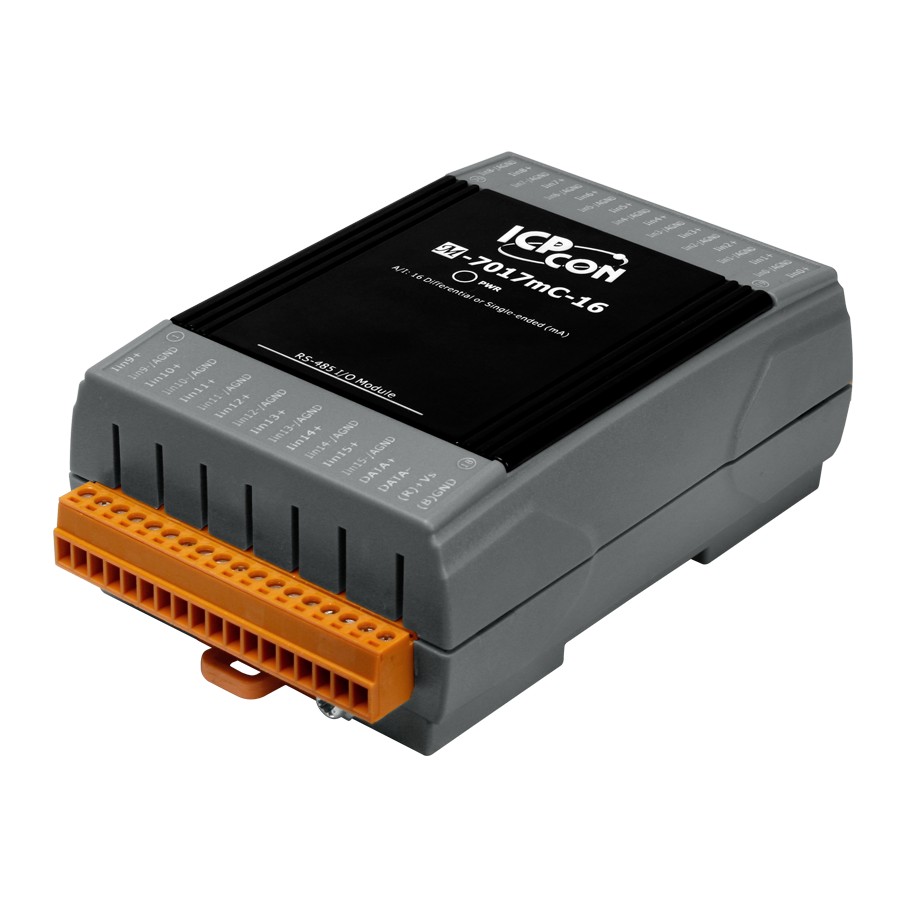

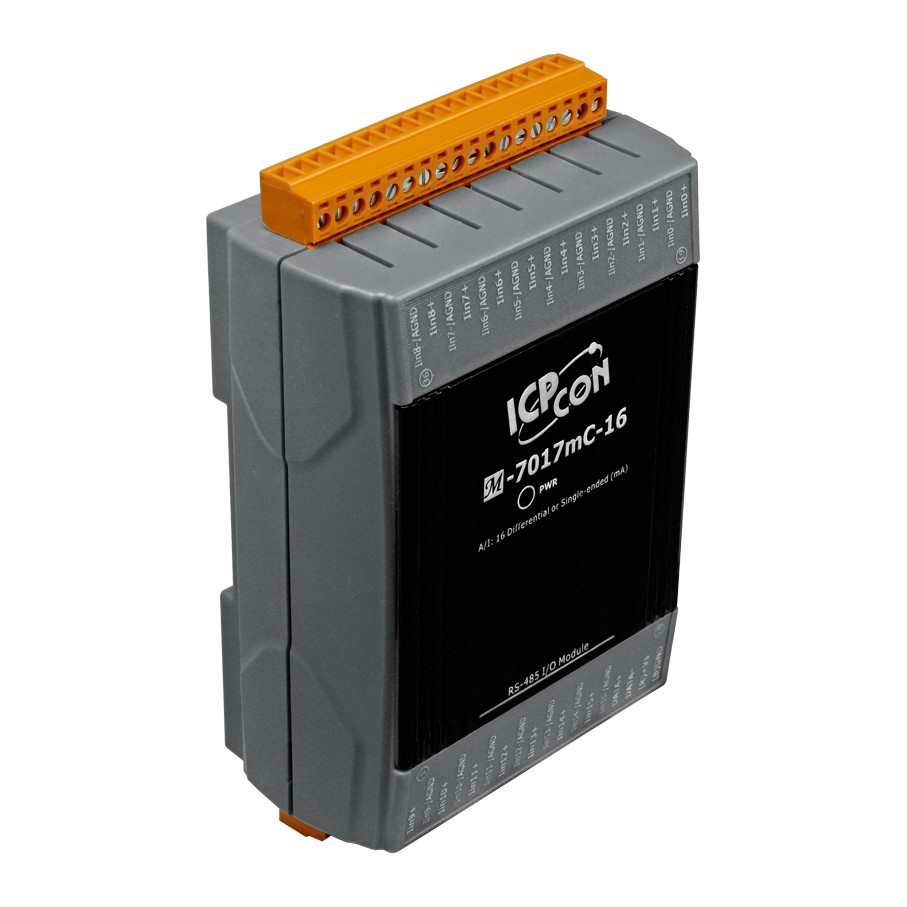

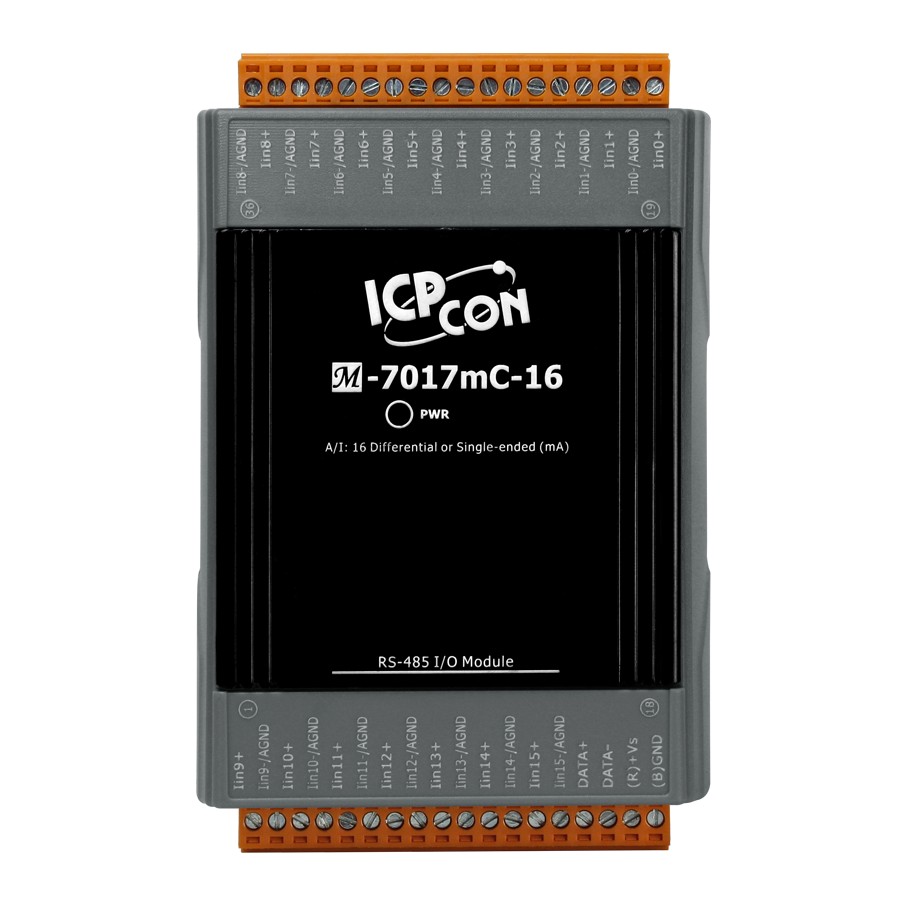

| M-7017mC-16 CR |
16-channel Current Input Module with Data Logger using the DCON and Modbus Protocols (Gray Cover) (RoHS) |
|
| |
|
The M-7017mC-16 is a 16-channel current input module that is specifi cally designed to measure current only. Its user-friendly design saves both time and effort when measuring current thanks to built-in resistors, meaning that you can now measure current directly without needing to add an external resistor. The module also provides 4 kV ESD protection and 110 VDC overvoltage protection for the current input, and features 3000 VDC intra-module isolation and open wire detection for 4 ~ 20 mA input. The sampling rate on the M-7017mC-16 is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017mC-16 contains a data logger that can be used to record the current input from all 16 channels, including date and time stamps, and is able to store up to 100,000 downloadable records.
|
|
|
|
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
|
| |
|
| Analog Input |
| Channels |
16 |
| Wiring |
Differential or Single-ended Wiring (Jumper Selectable) |
| Types |
±20 mA, 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution |
16-bit |
| Sampling Rate |
Normal Mode |
10 Hz total |
| Fast Mode |
200 Hz total |
| Accuracy |
Normal Mode |
+/-0.1% |
| Fast Mode |
+/-0.5% |
| Zero Drift |
+/-20 uV/°C |
| Span Drift |
+/-25 ppm/°C |
| Common Voltage Protection |
25 VDC |
| Individual Channel Configuration |
Yes |
| Overvoltage Protection |
110 VDC |
| Overcurrent Protection |
Yes, 50 mA at 110 VDC |
| Virtual Channel to Channel Isolation |
- |
| Open Wire Detection for 4 ~ 20 mA |
Yes |
| Real Time Clock |
Yes |
| Data Logger |
Yes, up to 100,000 records from 16 current input channels |
|
| |
|
| Communication |
| Interface |
RS-485 |
| Bias Resistor |
Yes, 1k Ω bias resistor by Jumper selectable |
| Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Baud Rate |
1200 to 115200 bps |
| Protocol |
Modbus RTU, DCON |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator/Display |
| System LED Indicator |
Yes, 1 as Power/Communication Indicator |
| I/O LED Indicator |
- |
| 7-Segment LED Display |
- |
| Isolation |
| Intra-Module Isolation, Field-to-Logic |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| EFT (IEC 61000-4-4) |
±4 kV to Power |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +48 VDC |
| Consumption |
0.6 W |
| Mechanical |
| Dimensions (L x W x H) |
120 mm x 76 mm x 42 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-40 to +85°C |
| Humidity |
10 to 95% RH, Non-condensing |
|
| |
|
| M-7017mC-16 CR |
16-channel Current Input Module with Data Logger using the DCON and Modbus Protocols (Gray Cover) (RoHS) |
|
| |
