M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS

Rendelésre 4-10 munkanap
Raktárkészlet: NINCS
M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS
  • M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS
  • M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS
  • M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS
  • M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS
  • M-7024UD-G # I/O Module/Modbus RTU/4AO/4DI/4DO/LED ICP DAS
90 324 Ft 114 711 Ft
  • M-7024U/M-7024UD
  • 4-channel Analog Output,4-channel Digital Input and 4-channel Digital Output Module
  • Multi funkciós modul: 4 AO + 4 DI + 4 DO
  • Source típusú áram kimenet
  • 16-bit analóg kimenet
  • Egyéni csatorna konfiguráció
  • Nyitott vezeték felismerés (áram)
  • 8 kV ESD védelem
  • Power-on Value Setting
  • Safe Value Setting
  • Széles működési hőmérséklet tartomány: -25 ~ +75°C
  • Modbus RTU és DCON protokoll (M-7000)
  • M-7024U CR 4-channel Analog Output,4-channel Digital Input and 4-channel Digital Output Module using the DCON and Modbus Protocols
    (Gray Cover) (RoHS)
    M-7024UD CR M-7024U with LED Display (Gray Cover) (RoHS)

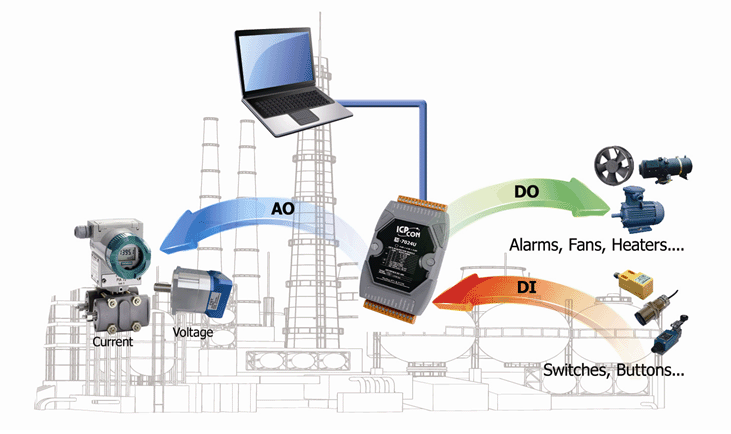

    The M-7024U is a multi-function module that includes 4 analog output channels, 4 digital input channels, 4 digital output channels. It provides a programmable output range on all analog outputs channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and the module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 8 kV ESD Protection as well as 2500 VDC intra-module isolation. Options for confi guring power-on and safe values are also included.



    • Features:
      • Multi-function=4 AO + 4 DI + 4 DO

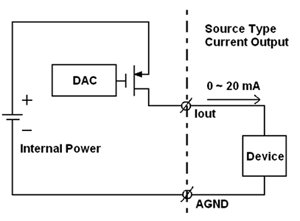

      • Source Type Current Output
      • 16-bit Analog Output
      • Individual Channel Configuration
      • Open Wire Detection for Current Output
      • 8 kV ESD Protection
      • Power-on Value Setting
      • Safe Value Setting
      • Wide Operating Temperature Range: -25 to +75°C
    • Applications:



    • Building Automation
    • Factory Automation
    • Machine Automation
    • Remote Maintenance
    • Remote Diagnosis
    • Testing Equipment



    Képtalálat a következőre: „m-7024u”

    Model M-7024U M-7024UD
    Analog Output
    Channels 4
    Current Output Wiring Source
    Range 0 ~+5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA
    Resolution 16-bit
    Accuracy ±0.02%% of FSR
    DA Output Response Time 10 ms per channel
    Programmable Output Slope Voltage 0.0625 ~ 512 V/Second
    Current 0.125 ~ 1024 mA/Second
    Current Output Capacity 1000 Ω
    Open Wire Detection Yes, for 4 ~ 20 mA only
    Short Circuit Protection Yes
    Power-on Value Yes, Programmable
    Safe Value Yes, Programmable
    Digital Input
    Channels 4
    Wet Contact ON Voltage Level +1 VDC Max.
    OFF Voltage Level +4 ~ 30 VDC
    Dry Contact ON Voltage Level Close to GND
    OFF Voltage Level Open
    Effective Distance
    for Dry Contact
    500 M Max.
    Counters Max. Count 65535 (16-bit)
    Max. Input Frequency 100 Hz
    Min. Pulse Width 5 ms
    Input Impedance -
    Overvoltage Protection +60 VDC
    Digital Output
    Output Channels 4
    Type Open Collector
    Sink/Source (NPN/PNP) Sink
    Load Voltage +3.5 VDC ~ +50 VDC
    Max. Load Current 700 mA/Channel
    Overvoltage Protection 60 VDC
    Overload Protection 1.4 A (with short-circuit protection)
    Power-on Value Yes, Programmable
    Safe Value Yes, Programmable

    Model M-7024U M-7024UD
    Communication
    Interface RS-485
    Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
    Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
    Baud Rate 1200 to 115200 bps
    Protocol Modbus RTU, DCON
    Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
    LED Indicators/Display
    System LED Indicator Yes, 1 as Power/Communication Indicator
    I/O LED Indicators - 4 LEDs as Analog Input Fault Indicators
    4 LEDs as Digital Input Indicators
    4 LEDs as Digital Output Indicators
    7-Segment LED Display -
    Isolation
    Intra-module Isolation,
    Field-to-Logic
    2.5 kVDC
    EMS Protection
    ESD (IEC 61000-4-2) ±8 kV Contact for each Terminal
    EFT (IEC 61000-4-4) ±4 kV for Power Line
    Surge (IEC 61000-4-5) -
    Power
    Reverse Polarity Protection Yes
    Input Range +10 ~ +30 VDC
    Consumption 4 W 4.5 W
    Mechanical
    Dimensions (L x W x H) 123 mm x 72 mm x 35 mm
    Installation DIN-Rail or Wall Mounting
    Environment
    Operating Temperature -25 to +75°C
    Storage Temperature -40 to +85°C
    Humidity 10 to 95% RH, Non-condensing

    M-7024U CR 4-channel Analog Output,4-channel Digital Input and 4-channel Digital Output Module using the DCON and Modbus Protocols
    (Gray Cover) (RoHS)
    M-7024UD CR M-7024U with LED Display (Gray Cover) (RoHS)
