M-7084 # I/O Module/Modbus RTU/4-8 ch./Counter/Frekvencia, ICP DAS, ICP CON

The M-7084 is a 32-bit high-speed Counter/Frequency/Encoder input module that offers a variety of mode options, including "Up Counter”, "Frequency Input", "Up/Down Counter", "Direct/Pulse Counter" and "A/B Phase Counter" modes. The mode combinations can be individual set for all 8 channels, where some channels can be set to “Up Counter” mode and other channels can be simultaneously set to “Frequency”, "Up/ Down Counter" or “Encoder input” mode. The built-in digital filter can filter out noise where the high/ low pulse width is smaller than the minimum high/low width of the digital filter. The M-7084 provides a virtual battery backup function in counter mode.

Counter Measurement, Frequency Measurement and Encoder Motion Control.

Communication Interface RS-485 Format N, 8, 1 Baud Rate 1200 ~ 115200 bps Protocol Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator Power 1 LED, Red Isolation Intra-module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) +/-4 kV Contact for Each Terminal EFT (IEC 61000-4-4) +/-4 kV for Power Surge (IEC 61000-4-5) +/-3 kV for Power Line Power Reverse Polarity Protection Yes Input Range 10 ~ 30 VDC Consumption 1.32 W Max. Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 ~ +75°C Storage Temperature -30 ~ +80°C Humidity 10 ~ 90% RH, Non-condensing

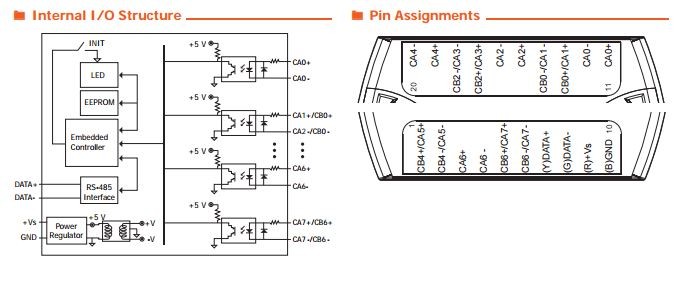

Counter/Frequency/Encoder Input Channels 4-channel Up/Down Counter (CW/CCW) 4-channel Dir/Pulse Counter (Bi-direction) 4-channel A/B Phase (Quadrature Counting) 8-channel Up Counter 8-channel Frequency Contact Wet Sink/Source (NPN/PNP) Sink Types Counter, Frequency or Encoder Counter/Encoder-bits 32-bit (4,294,967,295) On Voltage Level +3.5 VDC ~ +30 VDC Off Voltage Level +1 VDC Max. Programmable Digital Filter 1 ~ 32767 μs Individual Channel Configuration Yes Counter Mode Up or Up/Down Encoder Mode CW/CCW, Dir/Pulse, AB Phase Frequency Mode Yes Max. Speed 3.5 VDC ~ 10 VDC: 200 kHz 10 VDC ~ 30 VDC: 150 kHz Frequency Accuracy 1 Hz~200 kHz = ±0.025% of Input Frequency (Note1) 200 kHz~1 MHz =±0.1% of Input Frequency Virtual Battery Backup to preserve Counter Values Yes

Note1:

Frequency Range Frequency Error (typical) 1 Hz ~ 10 Hz 0.01 Hz 10 Hz ~ 10 KHz 0.5 Hz 10 KHz ~ 100 KHz 15 Hz 100 KHz ~ 200 KHz 30 Hz

M-7084 CR 4/8-channel Counter/Frequency/Encoder Input Module (RoHS)
