NS-200FC CR # Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 multi mode, SC connector (RoHS)
NS-200FT CR # Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 multi mode, ST connector (RoHS)
NS-200FCS CR # Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 single mode, SC connector (RoHS)
| Technology |
| Standards |
IEEE802.3, 802.3u, 802.3x |
| Processing Type |
Store & forward wire speed switching |
| MAC Addresses |
1024 |
| Memory Bandwidth |
1.4 Gbps |
| Interface |
| RJ-45 Ports |
10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection |
| Fiber Port |
100 Base-FX |

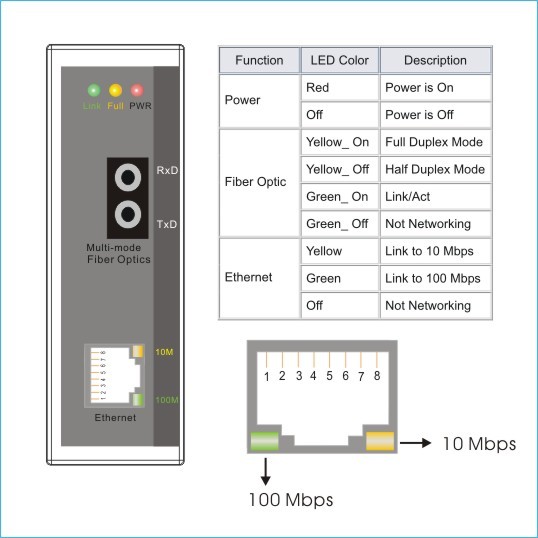

| LED Indicators |
10/100M, Link/Act, Full duplex/Half duplex(Fiber Port) |
| Ethernet Isolation |
1500 Vrms 1 minute |
| Multi Mode |
Multi mode fiber cables:50/125, 62.5/125 or 100/140 μm |
| Distance :2 km, (62.5/125 μ mrecommended) for full duplex |
| Wavelength : 1300 or 1310nm |
| Min. TX Output:- 20 dBm |
| Max. TX Output: -14 dBm |
| RX Sensitivity: -34 to -31 dBm |
| Single Mode |
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125μm |
| Distance: 15 km, (9/125 μm recommended) for full duplex |
| Wavelength: 1300 or 1310nm |
| Min. TX Output: - 15 dBm |
| Max. TX Output: -8 dBm |
| RX Sensitivity: -36 to -31 dBm |
| Ethernet Transmission distance |
Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm |
| Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm |
| Power |
| Input Voltage Range |
+10 ~ +30 VDC (Non-isolation) |
| Power Consumption |
0.12 A@24 VDC, +/- 5% arrowed with 100M Full duplex |
| LED Indicator |
Yes |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Mechanical |
| Casing |
Plastic (Flammability UL 94V-0) |
| Dimensions (W x L x H) |
33 mm x 85 mm x 107 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
0 °C ~ +70 °C |
| Storage Temperature |
-20 °C ~ +85 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
| |
|
