NSM-208AG # Gigabit Ethernet switch, 8 port, 10/100/1000 Mbps, 48VDC, femhaz, ICP DAS

ICP DAS     NS-208G CR # Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +10 VDC ~ +30 VDC (RoHS)
ICP DAS     NSM-208G CR # Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +10 VDC ~ +30 VDC, metal casing (RoHS)
ICP DAS     NS-208AG CR # Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +12 VDC ~ +48 VDC (RoHS)

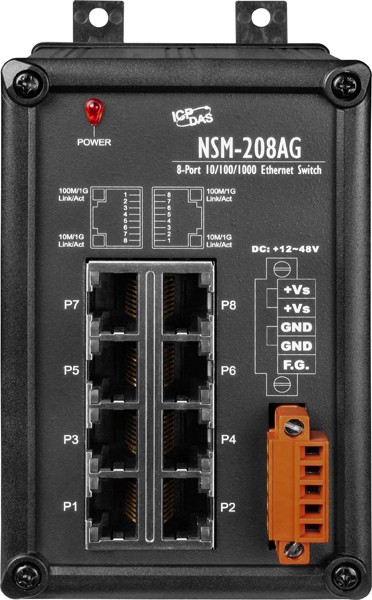

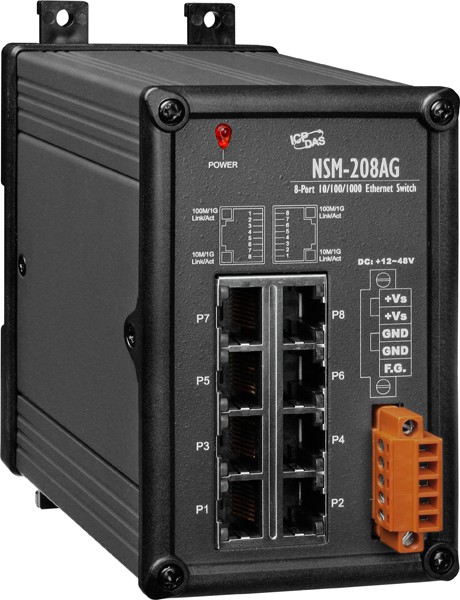

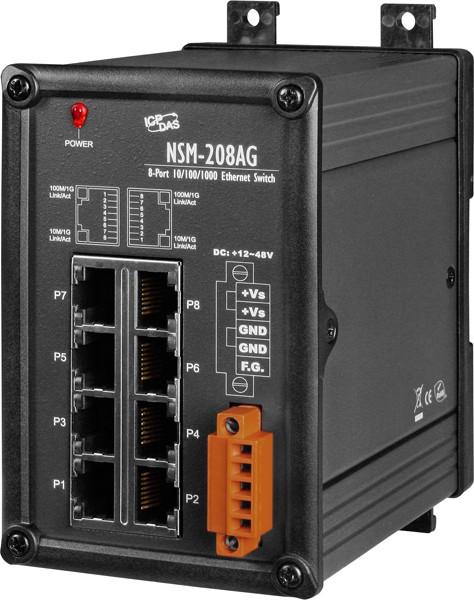

ICP DAS     NSM-208AG # CR Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +12 VDC ~ +48 VDC, metal casing (RoHS)

Models NS-208G NS-208AG NSM-208G NSM-208AG Technology Standards IEEE 802.3, 802.3u, 802.3ab and 802.3x Processing Type Store & forward; wire speed switching MAC Addresses 8192 Memory Bandwidth 16 Gbps Frame Buffer Memory 1 Mbit Jumbo Frames 9K for Speed 1000 M Flow Control IEEE 802.3x flow control, back pressure flow control Interface RJ-45 Ports 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection LED Indicators Power, 10/100/1000M, Link/Act Ethernet Isolation 1500 Vrms 1 minute EMS Protection Yes Cable Ethernet 2-pair UTP/STP Cat.3, 4, 5, EIA/TIA-568 100 Ω Fast Ethernet 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω Gigabit Ethernet 4-pair UTP/STP Cat.5, EIA/TIA-568 100 Ω Power Input Input Voltage Range +10 VDC ~ +30 VDC +12 VDC ~ +48 VDC +10 VDC ~ +30 VDC +12 VDC ~ +48 VDC Power Consumption 0.3 A @ 24 VDC Protection Power reverse polarity protection EMS Protection Yes Connection 5-Pin Removable Terminal Block Mechanical Casing Plastic (Flammability UL 94V-0) Metal (IP20 Protection) Dimensions (W x L x H) 64 mm x 98 mm x 119 mm 73 mm x 102 mm x 132 mm Installation DIN-Rail Mounting DIN-Rail Mounting or Wall Mounting Environment Operating Temperature -40 °C ~ +75 °C Storage Temperature -40 °C ~ +75 °C Ambient Relative Humidity 10% ~ 90% RH, non-condensing

NS-208G CR Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +10 VDC ~ +30 VDC (RoHS) NSM-208G CR Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +10 VDC ~ +30 VDC, metal casing (RoHS) NS-208AG CR Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +12 VDC ~ +48 VDC (RoHS) NSM-208AG CR Unmanaged 8-port 10/100/1000 Base-T Ethernet Switch with Power Input +12 VDC ~ +48 VDC, metal casing (RoHS)
