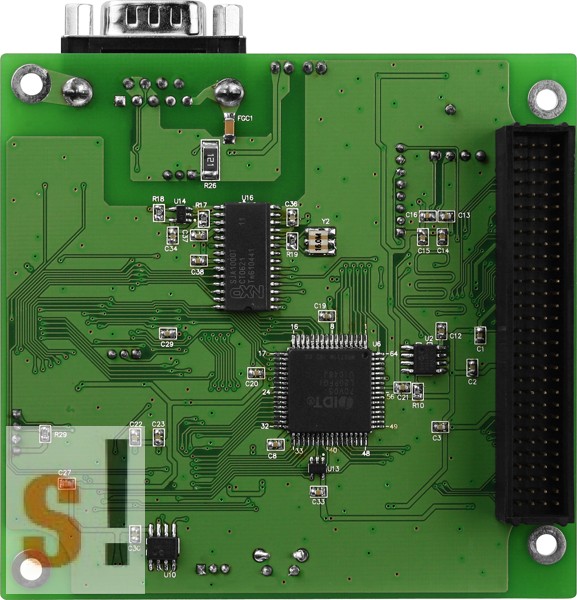

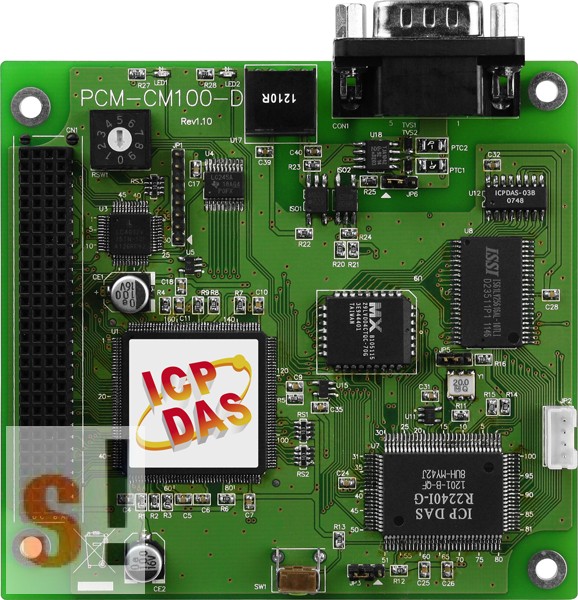

PCM-CM100-D # Intelligens PCI kártya/PCI-104/CAN/1 port/D-sub/szigetelt, ICP DAS
- PCM-CM100-D # Intelligens PCI kártya/PCI-104/CAN/1 port/D-sub/szigetelt, ICP DAS
- PCM-CM100-D # Intelligent CAN interface with one Isolated Protection CAN Communication Port and 9-Pin D-sub connector for PCI-104 bus systems
-
PCI-104 compliant
-
Compatible with CAN specification 2.0 part A and B
-
Fully compatible with the ISO 11898-2 standard
-
Support several kinds of baud rate from 10 kbps ~ 1 Mbps
-
2500 Vrms photocoupler isolation on the CAN side
-
Built-in jumper for 120 Ω terminator resistor of CAN bus
-
3 kV galvanic isolation
-
80186, 80MHz CPU inside
-
Allow users to program their special firmware
-
Provide VB, VC++, Delphi, Borland C++ builder demos
-
Timestamp with at least ±1ms precision
-
PCM-CM100-D # Intelligens PCI kártya/PCI-104/CAN/1 port/D-sub/szigetelt, ICP DAS
PCM-CM100-D # Intelligent CAN interface with one Isolated Protection CAN Communication Port and 9-Pin D-sub connector for PCI-104 bus systemsThe CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

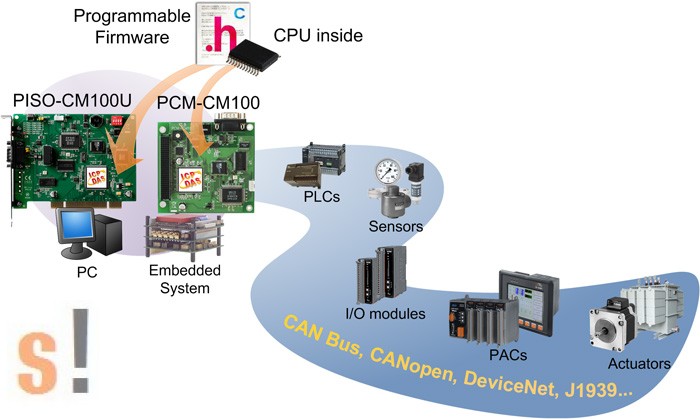

ICP DAS provides an open architecture platform for CAN bus PCM-CM100-D. The PCM-CM100-D represents a very powerful and economic solution of an active CAN board with one CAN channels, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. PCM-CM100-D also uses the new Phillips SJA1000T and Transceiver 82C250/251, which provide bus arbitration and error detection with auto correction and re-transmission function. Under the effect of the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. Besides, equipped with integrated intelligence functions, the PCM-CM100-D makes it is possible to preprocess CAN data streams, thus relieving the PC of a considerable burden. As a result, real-time requirements on the PC applications are drastically reduced. Due to the state-of-the-art, it can be installed in a PCI-104 bus and supported truly “Plug & play” technology.
In addition, users can develop their own CAN application by using the PCM-CM100-D library. When the PCM-CM100-D is active, the data exchange between users’ application and can bus firmware is performed via the memory mapping method of the PCM-CM100-D.
HardwareCPU80186, 80 MHz or compatibleSRAM/Flash/EEPROM512 KB / 512 KB / 16 KBDPRAM8 KBNVRAM31 bytes (battery backup, data valid for up to 10 years)RTC (Real Time Clock)YesBus InterfaceTypePCI-104Board No.By DIP switchCAN InterfaceControllerNXP SJA1000T with 16 MHz clockTransceiverNXP 82C250Channel number1Connector9-pin male D-SubBaud Rate (bps)10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)Isolation3000 VDC for DC-to-DC, 2500 Vrms for photo-coupleTerminator ResistorJumper for 120 Ω terminator resistorLEDRound LEDRx/Tx LED, ERR LEDPowerPower Consumption400 mA @ 5 VSoftwareDriverWindows 2K/XP/7/8 (32-bit/64-bit OS)LibraryVB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0MechanismDimensions90mm x 96mm (L X W)EnvironmentOperating Temp.0 ~ 60 ℃Storage Temp.-20 ~ 70 ℃Humidity5 ~ 85% RH, non-condensingPCM-CM100-DIntelligent CAN interface with one Isolated Protection CAN Communication Port and 9-Pin D-sub connector for PCI-104 bus systemss!nus-elektrotechnikai bt.
Industrial IT & Automation
23 éves jubileum / 23 th Anniversary
Email: info@s-e.hu # Tel: 96/525530 # Fax: 96/525531 # Mobil: 30/9464608
RS-232, RS-422, RS-485 konverterek, Ethernet konverterek, RS-485 I/O, Modus I/O, Soros-Ethernet konverterek, USB I/O, Ethernet I/O, Profibus, M-bus, Rádió modem, Ethernet switch, CAN, CANopen, DeviceNet, Profinet, HART, BACnet, EtherCAT, EtherNet/IP, Wireless MBus, DALI, ZigBee, LoRaWan, SIGFOX, IoT, TouchPAD Fogyasztásmérés és leolvasás USB konverter ICP DAS HUNGARY
RS-232 - WiFi konverter, RS-485 - WiFi konverter,
ICP CON konverter USR IOT konverter
Sinus-Elektrotechnikai Bt. ICP DAS HUNGARY
RS-232 konverter, RS-422 konverter, RS-485 konverter, RS-485 repeater, USB konverter, Soros Ethernet konverter, RS-232 Ethernet konverter, RS-422 Ethernet konverter, RS-485 Ethernet konverter, Ipari Ethernet switch, Managed DIN switch, PAC, PLC, HMI, Programozó kábel, Ipari monitor, Ipari éritőképernyős monitor, Ipari PC, Ipari laptop, Ipari tablet, Ipari panel PC, Barebone PC, Mini ITX PC, RS-485 I/O, Profibus I/O modul, Profibus gateway, Profibus konverter, Profibus átjáró, Profibus csatlakozó, Modbus I/O, Ethernet I/O, Modbus gateway, CAN konverter, CAN I/O, CANopen konverter és I/O, DeviceNet konverter és I/O, Hart konverter, Ethernet/IP modul és konverter, BACnet/IP modul és konverter, PROFINET konverter, I/O modul, EtherCAT modul, M-Bus modul, konverter, DALi modul, DALI konverter, PLC programozó kábel, Siemens programozó kábel, WiFi I/O, GSM modem, GPRS modem, SMS küldő, ZigBee konverter, ZigBee I/O, Bluetooth modul, LoRaWAN modul, SIGFOX Modul, IIoT MQTT modul, Média konverter, Touch Pad, Optikai leolvasófej, Analóg, Digitális, Soros PCI kártyák, Épület automatizálás, Ipari tápegység, Ipari kamera, MachineVision, Fogyasztásmérés és elemzés, Földrengés előjelzés, Adatgyűjtés eszközei, Rezgés elemzés, konverter és repeater, Profibus kábel, Profibus csatlakozó, Soros RS-232 RS-485 WiFi konverter, Ipari Gigabit Ethernet switch, WiFi i/o modul, IEC 1107 mérőleolvasás, Optikai leolvasó fej ICP DAS, ICPDAS, ICP CON, MOXA, ADEUNIS, USR IOT, IEI, B+B SmartWorx, ELKO EP, EXSYS, LILLIPUT, STARTECH, PATTON
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorisation by any rights holder.
© 2018-2020 Sinus-Elektrotechnikai Bt. Minden jog fenntartva.
A műszaki adatok és információk előzetes értesítés nélkül megváltozhatnak.
-
Gyártó ICP DASRaktárkészlet NINCSCikkszám PCM-CM100-DStátusz Rendelésre 10-15 munkanap
