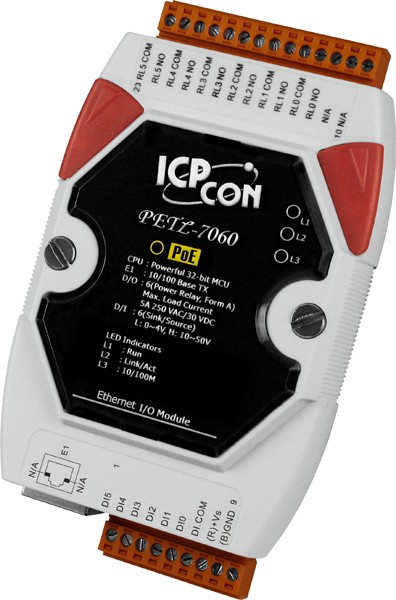

PETL-7060 # POE I/O Module/Modbus TCP/6DI/6 Relay/isol., ICP DAS

Rendelésre 4-10 munkanap
Raktárkészlet: NINCS
PETL-7060 # POE I/O Module/Modbus TCP/6DI/6 Relay/isol., ICP DAS
  • PETL-7060 # POE I/O Module/Modbus TCP/6DI/6 Relay/isol., ICP DAS
  • PETL-7060 # POE I/O Module/Modbus TCP/6DI/6 Relay/isol., ICP DAS
  • PETL-7060 # POE I/O Module/Modbus TCP/6DI/6 Relay/isol., ICP DAS
47 978 Ft 60 932 Ft
  • PETL-7060
  • Ethernet module with PoE and Power Relay Output/Digital Input
  • 6 szigetelt digitális bemenet: Wet kontaktus (Sink, Source),32 bites számláló
  • 6 relé kimenet: Power Relay, Form A (SPST N.O.), 5.0 A/ch
  • 3750 Vrms szigetelés
  • Költséghatékony Ethernet I/O modul
  • Modbus TCP és Modbus UDP slave protokoll
  • 10/100 Base-TX Ethernet port
  • Redundás tápfeszültség bemenet: PoE és DC bemenet
  • TCP, UDP, HTTP, DHCP, BOOTP és TFTP protokoll támogatás
  • Különböző digitális be és kimenet típusok
  • Dupla watchdog
  • DIN sínre rögzíthető
  • Alacsony teljesítményfelvétel (max. 1,7 W)
  • Széles működési hőmérséklet tartomány: -25 ~ +75°C
  • PETL-7060 CR Ethernet module with PoE, 6-ch isolated DI and 6-ch form-A power relay (RoHS)

    Providing various digital I/O functions, the PETL-7000 series is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the PETL-7000 series perfect integration with the HMI, SCADA, PLC and other software systems.

    The functionality of the PETL-7000 series is almost the same as the PET-7000 series. The PETL-7000 series Ethernet I/O modules support various I/O types, like photo-isolated digital input, relay contact, PhotoMOS relay, and open-collector output. The module can be used to create DI to DO pair-connect through the Ethernet. Once the configuration is completed, the PETL-7000 series module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.

    The PETL-7000 series provides dual watchdog: CPU watchdog and host watchdog. The CPU watchdog automatically resets it-self when the built-in firmware runs abnormally. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to predefined state (safe value) when the host fails.

    It is equipped with two removable terminal block connectors for easy wiring, and features a powerful 32-bit ARM MCU to handle efficient network trafficking. The PETL-7000 series offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. When there is no PoE switch on site, the PETL-7000 series accepts power input from DC adapter.

    • Cost-effective Ethernet I/O modules (Modbus TCP/UDP slave)
    • Contains a 32-bit MCU that efficiently handles network traffic
    • 10/100 Base-TX Ethernet, RJ-45 x1 (Auto-negotiating, Auto MDI/MDIX, LED Indicator)
    • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
    • Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
    • Supports UDP responder for device discovery
    • Supports web configuration and firmware update via Ethernet
    • Various digital input and output types
    • Supports latched DI and 32-bit high-speed counter functions
    • Supports I/O pair-connection through the Ethernet
    • Dual-watchdog with power-on and safe value
    • Easy DIN-Rail mounting
    • RoHS compliant, no Halogen
    • Low power consumption (about 1.7 W only)



    • Factory , Building and Machine Automation
    • Remote Maintenance
    • Testing Equipment

    System
    CPU 32-bit ARM
    Dual Watchdog Yes
    Communication
    Ethernet Port 10/100 Base-TX, 8-Pin RJ-45 x1,
    (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
    PoE (IEEE 802.3af, Class 1)
    LED Display
    PoE PoE indicator
    L1 Run indicator
    L2 Link/Act indicator
    L3 10/100 M indicator
    Mechanical
    Dimensions 123 mm x 72 mm x 35 mm
    Installation DIN-Rail or Wall mounting
    Environmental
    Operating Temperature -25 °C ~ +75 °C
    Storage Temperature -30 °C ~ +80 °C
    Humidity 10 ~ 90% RH, Non-condensing
    Power Requirements
    Power Input PoE: IEEE 802.3af, Class 1
    Terminal block: +12 ~ 48 VDC (non-regulated)
    Power Consumption 0.06 A @ 24 VDC Max

    Digital Input
    Input Channels 6
    Input Type (Device) Wet Contact (Sink, Source)
    On Voltage Level +10 VDC ~ +50 VDC
    Off Voltage Level +4 VDC max.
    Input Impedance 10 k Ohm
    Counters Max. Count: 4,294,967,285 (32 bits)
    Max. Input Frequency: 3.5 kHz (without filter)
    Min. Pulse Width: 0.15 ms
    Frequency Measurement 1 ~ 3.5 kHz in Mode “1000 ms“, (+/- 1 Hz error)
    10 ~ 3.5 kHz in Mode “100 ms”, (+/- 10 Hz error)
    0.01 ~ 1 Hz in Mode “Single-pulse” , (+/- 0.01 Hz error)
    Overvoltage Protection +70 VDC
    Isolation 3750 Vrms
    Digital Output
    Output Channels 6
    Output Type (Module) Power Relay, Form A (SPST N.O.)
    Output Voltage Range 250 VAC/30 VDC
    Max. Load Current 5.0 A/channel at 25 °C
    Operate Time 6 ms
    Release Time 3 ms
    PWM 100Hz max
    The unit of duty cycle is 1 ms, and the resolution is about 5 ms.(5~65535 ms)
    Electrical Life
    (Resistive load)
    VED 5 A 250 VAC 30,000 ops (10 ops/minute) at 75 °C
    5 A 30 VDC 70,000 ops (10 ops/minute) at 75 °C
    UL 5 A 250 VAC/30 VDC 6,000 ops
    3 A 250 VAC/30 VDC 100,000 ops
    Mechanical Life 20,000,000 ops. At no load (300 ops./ minute)
    Output Isolation 3750 Vrms
    Note: Because the characteristic of relay, PETL-706X series (the module with relay) are not suitable to use PWM for a long time.

    PETL-7060 CR Ethernet module with PoE, 6-ch isolated DI and 6-ch form-A power relay (RoHS)
