PFN-2019/S CR # PROFINET I/O Module/10AI/DB-1820, ICP DAS

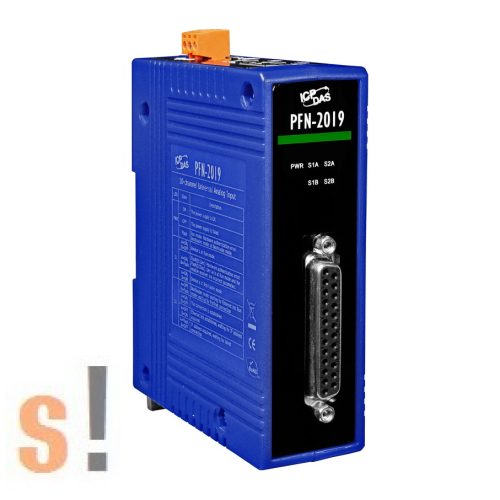

PFN-2019/S CR # PROFINET I/O Module (10-channel Universal Analog Input Module) (RoHS) include PFN-2019 module and a DB-1820 daughter board

AI, 10 channel differential
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 0~20mA, 4~20mA (Jumper Selectable),
Thermocouple Type: J, K, T, E, R, S, B, N, C
Protocol: PROFINET IO Device
PROFINET Conformance Class B and RT Class 1
Cyclic Time: 1ms (min)
Generic GSDML File Provided (Version 2.25)
16-bits resolution & 10Hz sample rate
Supports thermocouple devices with J,K,T,E,R,S,B,N,C
4 kV Contact ESD protection for any terminal
Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +70°C)

nettó: 230 420 Ft bruttó: 292 633 Ft

Részletek

PFN-2019/S CR # PROFINET I/O Module/10AI/DB-1820, ICP DAS
PFN-2019/S CR # PROFINET I/O Module (10-channel Universal Analog Input Module) (RoHS) include PFN-2019 module and a DB-1820 daughter board

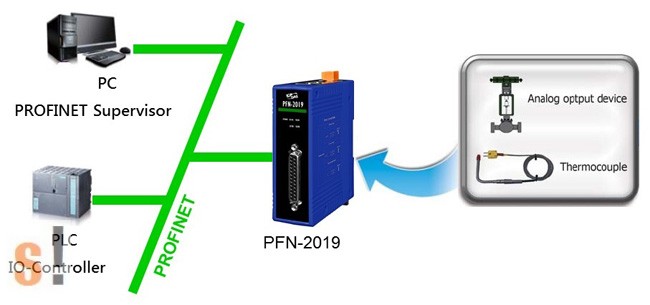

The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

Hardware
CPU	32-bit CPU Core
RAM/Flash/EEPROM	32 MB / 4 MB / 8 KB
Watchdog	CPU built-in
ESD Protection	4 kV class A
PROFINET Interface
Protocol	PROFINET IO Device
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Ethernet Interface
Controller	10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector	RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Analog Input
Channels	10 channel differential
Input Range	+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 0~20mA, 4~20mA (Jumper Selectable), Thermocouple Type: J, K, T, E, R, S, B, N, C
Resolution	16 bit
Sample Rate	10 Hz (Total)
Accuracy	+/- 0.1% of FSR
Open Wire Detection	Yes
LED
Round LED	PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply	Unregulated +10 ~ +30 VDC
Protection	Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption	5 W
Mechanism
Installation	DIN-Rail
Dimensions	33 mm x 93 mm x 126 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 70 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

Ordering Information

PFN-2019/S CR

PROFINET I/O Module (10-channel Universal Analog Input Module) (RoHS)
include PFN-2019 module and a DB-1820 daughter board
