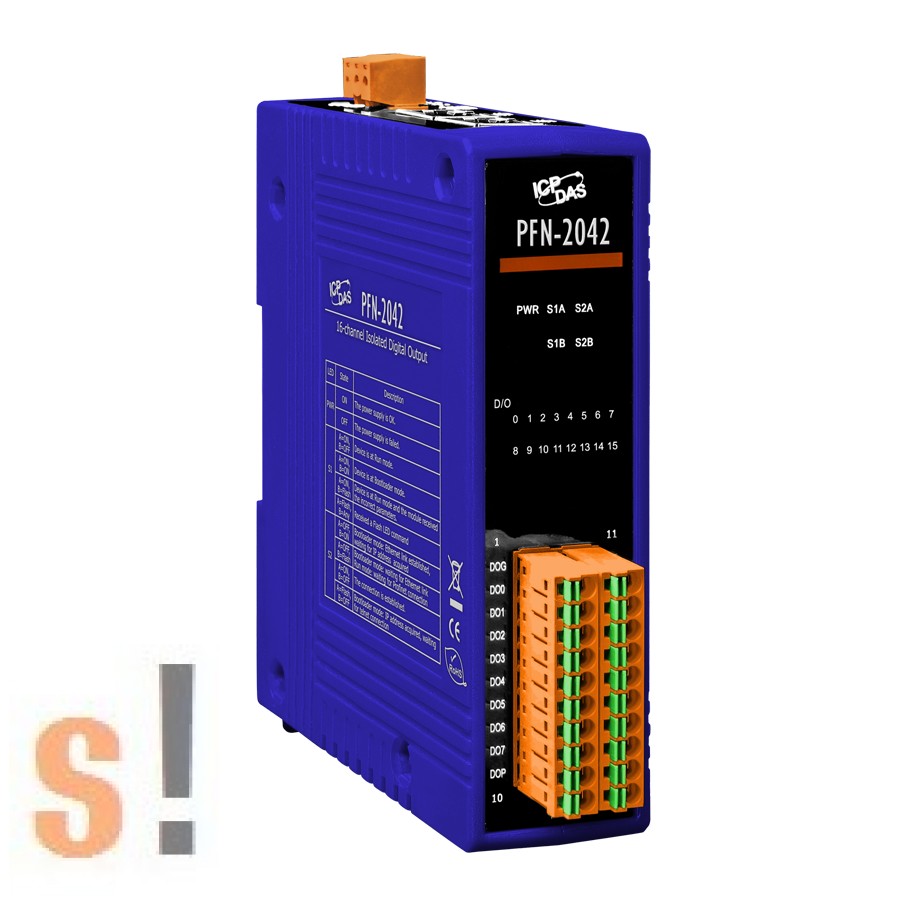

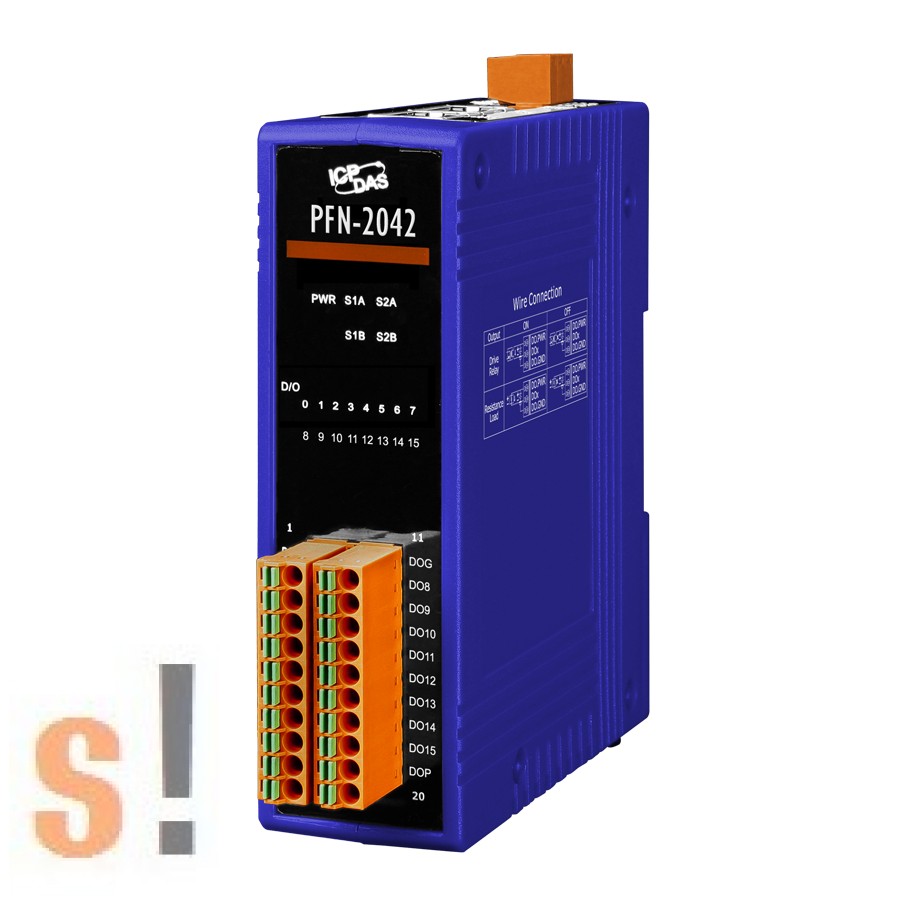

PFN-2042 CR # PROFINET I/O Module/16DO/szigetelt, ICP DAS
PFN-2042 CR # PROFINET I/O Module (Isolated 16-ch DO) (RoHS)

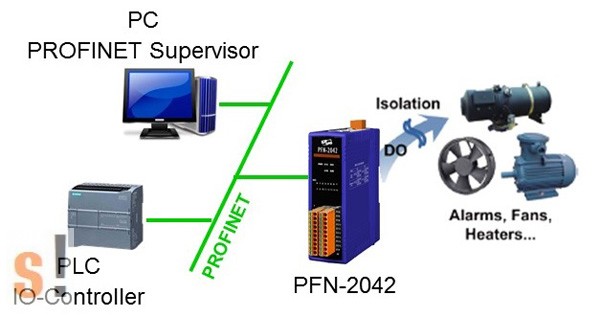

The PFN-2042 is specially designed for PROFINET IO device. It has 16-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
| Hardware |
| CPU |
32-bit CPU Core |
| RAM/Flash/EEPROM |
32 MB / 4 MB / 8 KB |
| Watchdog |
CPU built-in |
| ESD Protection |
4 kV class B |
| PROFINET Interface |
| Protocol |
PROFINET IO Device |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Ethernet Interface |
| Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| Connector |
RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |

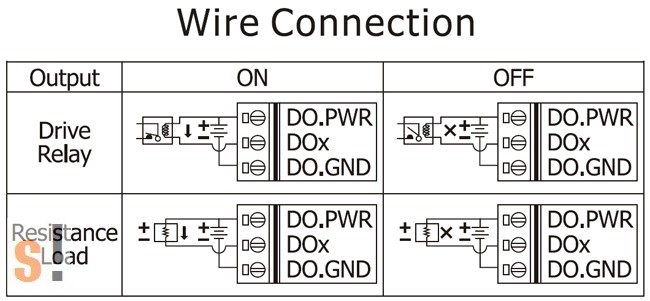

| Digital Output |
| Channels |
16, Sink, NMOS |
| Load voltage |
+3.5 ~ +50 VDC |
| Load current |
700 mA/Channel (max.) |
| LED |
| Round LED |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Power |
| Power supply |
Unregulated +10 ~ +30 VDC |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
4 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 107 mm x 126 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
PFN-2042 CR
|
PROFINET I/O Module (Isolated 16-ch DO) (RoHS)
|
|
|
