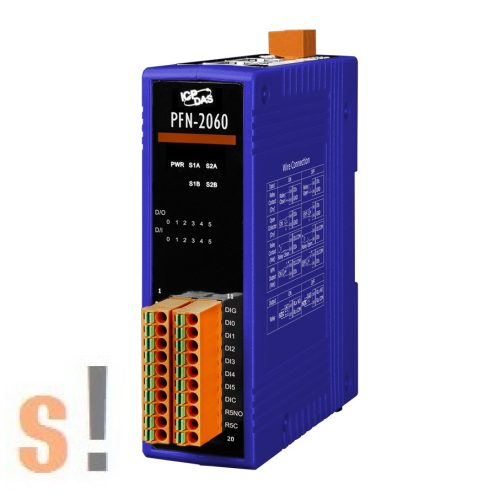

PFN-2060 CR # PROFINET I/O Module/6DI/6RO, relé kimenet, szigetelt, ICP DAS
PFN-2060 CR # PROFINET I/O Module (Isolated 6-ch DI & 6-ch Relay Output) (RoHS)
The PFN-2060 is specially designed for PROFINET IO device. It has 6-channel isolated digital inputs and 6-channel relay outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
| Hardware |
| CPU |
32-bit CPU Core |
| RAM/Flash/EEPROM |
32 MB / 4 MB / 8 KB |
| Watchdog |
CPU built-in |
| ESD Protection |
4 kV class B |
| PROFINET Interface |
| Protocol |
PROFINET IO Device |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Ethernet Interface |
| Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| Connector |
RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| Digital Input |
| Channels |
6, Dry Contact: Source, Wet Contact: Sink or Source |
| Dry Contact Level |
Off Voltage Level : Open, On Voltage Level : Close to GND |
| Wet Contact Level |
Off Voltage Level : +4 VDC max., On Voltage Level : +10 VDC to +50 VDC |
| Digital Output |
| Channels |
6, Power Relay, Form A x 6 |
| Contact Rating |
AC: 125 V@0.6A DC: 30V@2A, 110V@0.6A |
| Operating Time |
3 ms |
| Release Time |
2 ms |
| Total Switching Time |
10 ms |
| Surge Strength |
500 VAC (50/60 Hz) |
| Insulation resistance |
1000 MW min. at 500 VDC |
| LED |
| Round LED |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Power |
| Power supply |
Unregulated +10 ~ +30 VDC |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
4.5 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 107 mm x 126 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
PFN-2060 CR
|
PROFINET I/O Module (Isolated 6-ch DI & 6-ch Relay Output) (RoHS) |
|
|
