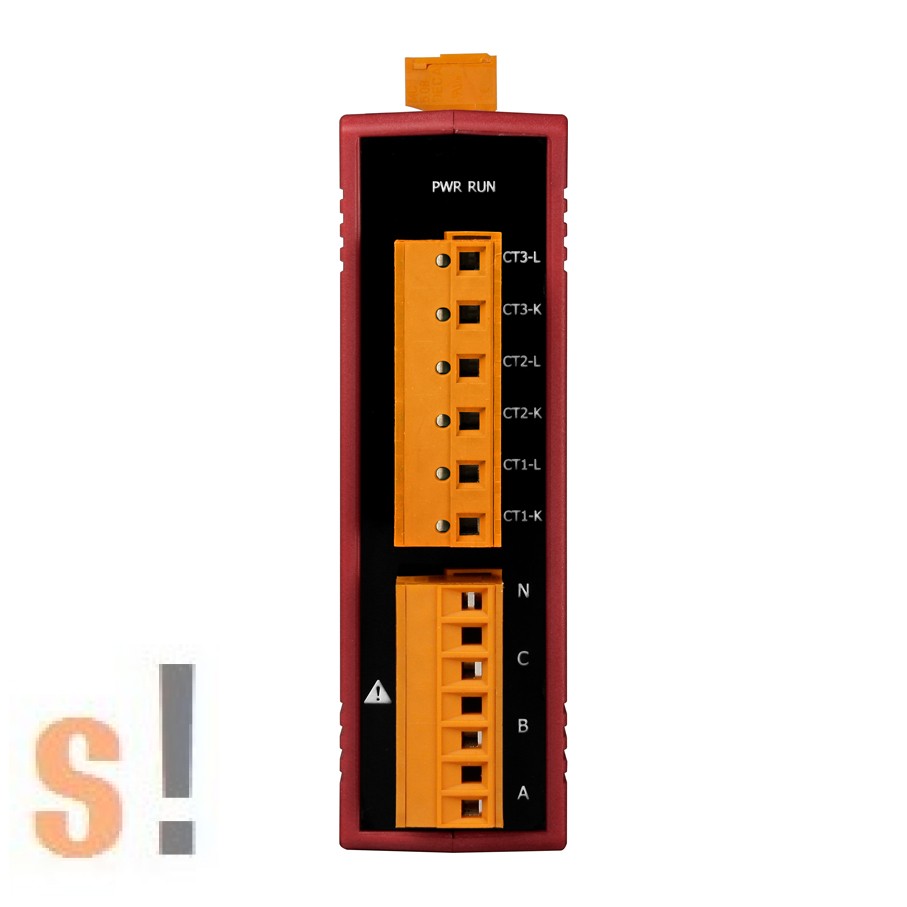

PM-3033 # Fogyasztásmérő/Power Meter/Modbus RTU/3 fázis/1A/5A áramváltó bemenet
PM-3033 # Modbus RTU, 3-phase power meter (1A/5A CT Input type)
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3033 series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-3033 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation.
Direct input from “secondary side 1A/5A” type CTs. Dedicated CTs are no longer needed, which lowers the cost of implementation. It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.
| Model |
PM-3033 |
PM-3033-MTCP |
PM-3033-CPS |
| AC Power Measurement |
| Wiring |
3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Measurement Voltage |
10 ~ 500 V |
| Measurement Current |
1A or 5A |
| Measurement Frequency |
50/60 Hz |
| W Accuracy |
Better than 0.5% (PF=1) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate |
1 Second |
| Communication |
| RS-485 |
Protocol |
Modbus-RTU |
- |
- |
| Baud rate |
9600,19200 (default), 38400, 115200;
DIP Switch Selectable |
- |
- |
| Data format |
N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
- |
- |
| Isolation |
3000 VDC |
- |
- |
| Ethernet (PoE) |
Protocol |
- |
Modbus TCP |
- |
| CANopen |
Protocol |
- |
- |
CANopen |
| Baud rate |
- |
- |
125 k (default), 250 k, 500 k, 1 M;
DIP Switch Selectable |
| Isolation |
- |
- |
3000 VDC |
| Power |
| Input Range |
+12 ~ 48 VDC |
+12 ~ 48 VDC or PoE |
+12 ~ 48 VDC |
| Power Consumption |
2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (W x L x H) |
127 mm x 105 mm x 33 mm |
| Module Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-25 ~ +80 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, Non-condensing |
|
| |
|
| RS-485 Interface |
| PM-3033 |
Modbus RTU, 3-phase power meter (1A/5A CT Input type) |
| Ethernet Interface |
| PM-3033-MTCP |
Modbus TCP, 3-phase power meter (1A/5A CT Input type) |
| CANopen Interface ~ Available soon ~ |
| PM-3033-CPS |
CANopen, 3-phase power meter (1A/5A CT Input type) |
|
| |
|
