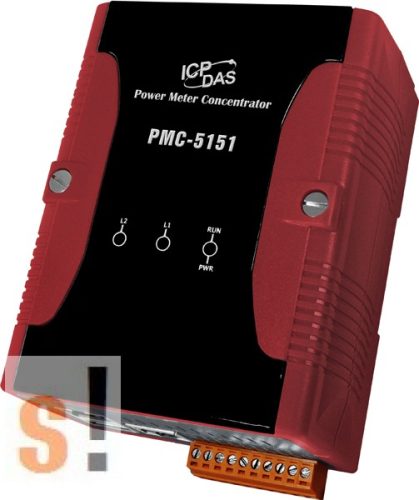

The PMC-5151 is a web-based intelligent Power Meter Concentrator developed by ICP DAS. It offers webpage interface, and features various functions such as: power data collection, logic control, power demand management, data logger and alarm notification functions.PMC-5151 allows connections to ICP DAS Smart Power Meters via RS-485 or Ethernet interface to read the power data of the devices measured by the power meters; and then real-time record the power values in the data logger file. It also provides data logger file auto send-back function; together with PMC Data Server software or SCADA software, it allows collection and analysis of the power data.
PMC-5151 is equipped with built-in Web Server that allows direct connections via browsers to the PMC-5151 for viewing power data and setting up the system parameters. It also offers Modbus TCP/RTU Slave function that allows SCADA software or HMI devices to connect to PMC-5151 to get real-time power data of the devices via Modbus TCP/RTU protocol.
In addition to ICP DAS XW-Board and M-7000 I/O modules, the PMC-5151 can also connect to standard Modbus TCP/RTU Slave modules. By working with the I/O modules, and functions such as IF-THEN-ELSE logic rule execution and alarm notification functions including Email/SMS/SNMP Trap, PMC-5151 offers more thought-out power demand management and alarm notification functions, and is able to perform load shedding of the devices if required, and enables real-time monitoring and control of the power consumption of the devices.
Supported Power Meter List :
Modbus RTU：PM-3112 / PM-3114 / PM-3133 / PM-3033 / PM-4324
Modbus TCP：PM-3112-MTCP / PM-3114-MTCP / PM-3133-MTCP / PM-3033-MTCP / PM-4324-MTCP
| Model |
PMC-5151 |
| System Software |
| OS |
Windows CE OS |
| Embedded Service |
PMC Runtime、Web server、FTP server |
| CPU Module |
| CPU |
32-bit ARM CPU |
| SDRAM |
128 MB |
| Flash |
64 MB |
| Expansion Flash Memory |
microSD socket with one 4 GB microSD card
(support up to 16 GB microSDHC card) |
| LED Indicator |
1 LED for Power and Running |
| Rotary Switch |
Yes (0 ~ 9) |
| Communication Ports |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (client) |
1 |
| USB 1.1 (host) |
1 |
| COM 1 |
RS-232 (RxD, TxD and GND); non-isolated; can connect to SMS Modem (GTM-203M-3GWA) |
| COM 2 |
RS-485 (D+, D-); 2500 VDC; isolated |
| COM 3 |
RS-485 (D+, D-); 2500 VDC; isolated |
| Mechanical |
| Dimensions (W x L x H) |
91 mm x 126 mm x 52 mm |
| Installation |
DIN-Rail Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Consumption |
4.8 W (0.2 A @ 24 VDC) |
| PMC-5151-EN CR |
Power Meter Concentrator ( English ) (RoHS) |
