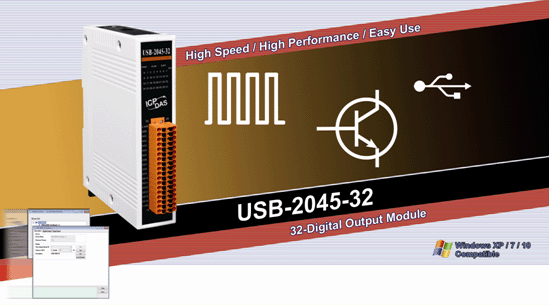

USB-2045-32 # USB I/O Modul/32x DO/Túlterhelés védelem, ICP DAS, ICP CON

The USB-2045-32 is a full-speed USB device with 32 digital output channels module, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2045-32 supports source type output and equips with short circuit protection. There are options to enable both power-on and safety value, and 32 LED indicators that can be used to monitor the status of the digital output channels. The 4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input and 3750 VDC Intra-module isolation are standard. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2045-32. The USB I/O utility can help users to configure and test USB-2045-32 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2045-32 is the perfect way to add control capability to any USB capable computer.

32-channel sink type digital output Short Circuit, Overload and Overvoltage Protection Configurable Power-on Value Settings Safety functionality when communication failed Wide operating temperature range: -25°C~+75°C 3000 VDC Intra-Module isolation RoHS compliant USB 1.1/2.0 Full-Speed No external power supply (USB Bus Powered) Plug-and-Play without driver Lockable USB cable Support firmware update via USB Utility tool for module configuration and I/O testing easily and quickly PWR/RUN/ERR LED indicators Built-in dual watchdog (hardware/software) Provide API library (VC/VB/BCB/.NET) Module supported for Win2000/XP and Win7 (32/64 bit)

Building automation Factory automation Machine automation Testing equipment

USB I/O Utility USB I/O Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB I/O series modules without programming.

Automatically scan all ICP DAS USB I/O modules Easily and quickly configure and test USB I/O modules Completely and precisely log I/O data for analysis

VB/C++/C#.NET/VB.NET SDK ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.

Digital Output Channels 32 Type Open Collector, Sink (NPN) Load Voltage +3.5 ~ +50 VDC Max. Load Current 500 mA/Channel Overvoltage Protection 60 VDC Overload Protection 1.4 A (with short-circuit protection) Power-on Value Yes Safe Value Yes Communication Interface USB 2.0 Full-Speed Watchdog 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) LED Indicators System LED Indicators 3 LED as Power, Run and Error I/O LED indicators 32 LEDs as power relay indicators EMS Protection ESD (IEC 61000-4-2) 4 kV contact for each terminal 8 kV air for random point Mechanical Dimensions (W x L x H) 129 mm x 147 mm x 31 mm Environmental Operating Temperature -25 ~ +75 °C Storage Temperature -40 ~ +85 °C Humidity 10 ~ 95% RH, non-condensing Power Power Consumption 2.20 W

USB-2045-32 CR 32 Sink-type Digital Output Channels with Overload Protection (RoHS)
