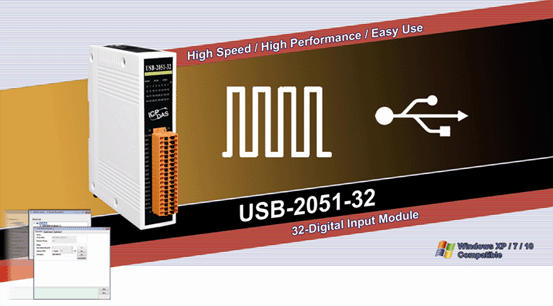

USB-2051-32 # USB I/O Modul/32x DI/szigetelt, ICP DAS, ICP CON
- USB-2051-32
- 32-channel Isolated Digital Input Module
- 32-channel digital input
- Dry/Wet kontaktus kiválasztási lehetőség
- 32-bites számláló
- 4kV ESD
- 3000 VDC belső modul szigetelés
- RoHS megfelelőség
- USB 1.1/2.0 teljes sebesség
- Plug-and-Play driver nélkül
- Rögzíthető USB kábel
- Széles működési hőmérséklet tartomány: -25 ~ +75°C
-
USB-2051-32 CR 32-channel Isolated Digital Input Module (RoHS) The USB-2051-32 is a full-speed USB device with 32 digital input channels module, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2051-32 offers 32 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels not only feature photocouple isolation, but can also be used as 32-bit counters. The USB-2051-32 has 32 LED indicators that can be used to monitor the status of the digital input channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2051-32.
The USB I/O utility can help users to configure and test USB-2051-32 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2051-32 is the perfect way to add control capability to any USB capable computer.- 32-channel digital input
- Select Dry/Wet contact via wiring
- 32-bit counters
- Wide operating temperature range: -25°C to +75°C
- 4kV ESD
- 3000 VDC Intra-Module isolation
- RoHS compliant
- USB 1.1/2.0 Full-Speed
- Plug-and-Play without driver
- Lockable USB cable
- Provide API library (VC/VB/BCB/.NET)
- Module supported for Win2000/XP and Win 7,8,10 (32/64 bit)
- Building automation
- Factory automation
- Machine automation
- Testing equipment
USB I/O Utility
USB I/O Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB I/O series modules without programming.- Automatically scan all ICP DAS USB I/O modules
- Easily and quickly configure and test USB I/O modules
- Completely and precisely log I/O data for analysis
VB/C++/C#.NET/VB.NET SDK
ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.Digital Input Channels 32 Type Dry Contact Source Wet Contact Sink/Source On Voltage Level Dry Contact Close to GND Wet Contact +10 VDC ~ +50 VDC Off Voltage Level Dry Contact Open Wet Contact +4 VDC Max. Effective Distance For Dry Contact 500 meters Max. Input Impedance 10 KΩ Overvoltage Protection 70 VDC Counter Max. Count 4294967295 (32-bit) Max. Input Frequency 500 Hz Min. Pulse Width 1 ms Communication Interface USB 2.0 Full-Speed Watchdog 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) LED Indicators System LED Indicators 3 LEDs as Power, Run and Error I/O LED indicators 32 LEDs as power relay indicators EMS Protection ESD (IEC 61000-4-2) 4 kV contact for each terminal 8 kV air for random point Mechanical Dimensions (W x L x H) 31 mm x 129 mm x 147 mm Environmental Operating Temperature -25 ~ +75 °C Storage Temperature -40 ~ +85 °C Humidity 10 ~ 95% RH, non-condensing Power Power Consumption 1.60 W USB-2051-32 CR 32-channel Isolated Digital Input Module (RoHS) s!nus-elektrotechnikai bt.
