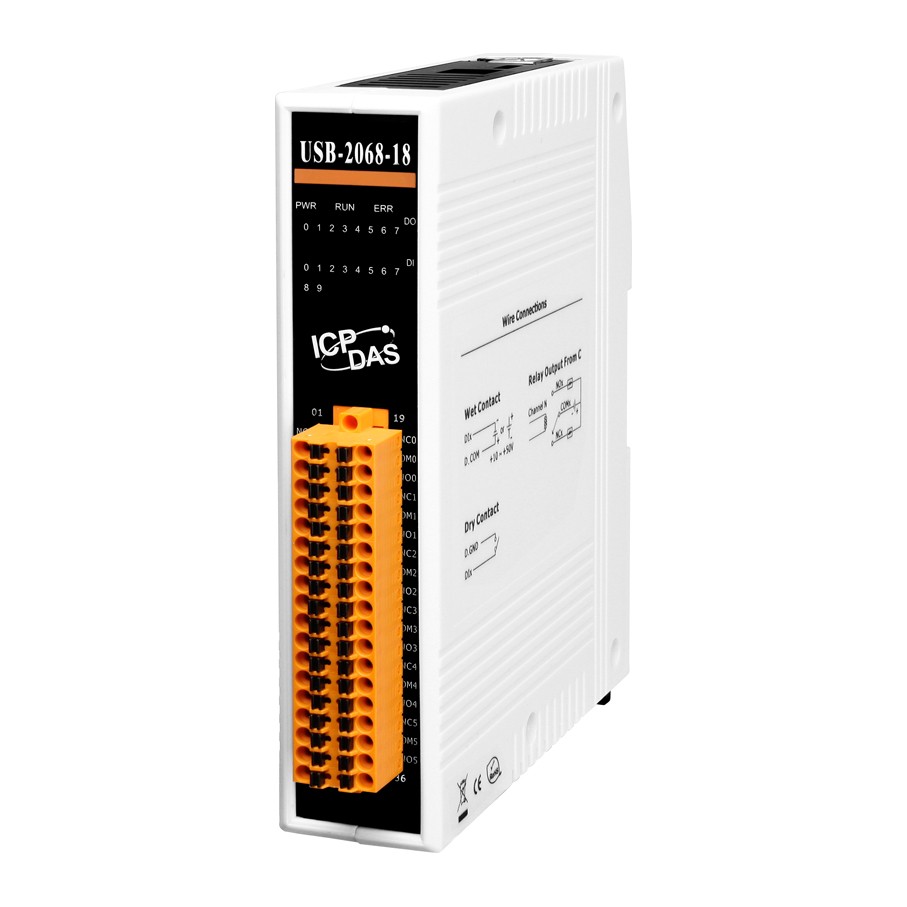

USB-2068-18 # USB I/O Modul/10x DI/Szigetelt/8x relé kimenet, ICP DAS, ICP CON

Rendelésre 4-10 munkanap
Rendelésre 10-15 munkanap
Raktárkészlet: NINCS
USB-2068-18 # USB I/O Modul/10x DI/Szigetelt/8x relé kimenet, ICP DAS, ICP CON
  • USB-2068-18 # USB I/O Modul/10x DI/Szigetelt/8x relé kimenet, ICP DAS, ICP CON
  • USB-2068-18 # USB I/O Modul/10x DI/Szigetelt/8x relé kimenet, ICP DAS, ICP CON
  • USB-2068-18 # USB I/O Modul/10x DI/Szigetelt/8x relé kimenet, ICP DAS, ICP CON
63 560 Ft 80 721 Ft
  • USB-2068-18
  • 10-channel Digital Input and 8-channel Digital Output Module
  • 10 digitális bemenet és 8 relé kimenet
  • Form C relé kimenetek (0,24A/220Vac, 2A/30Vdc)
  • 8 kV ESD védelem
  • Dry kontaktus és Wet kontaktus kiválasztható
  • Minden digitális bemenet használható 32-bites számlálóként
  • USB 2.0 Full-Speed
  • 2500 VDC belső modul szigetelés
  • Nem kell külső táp (USB Bus táplált)
  • Plug-and-Play driver nélkül
  • Rögzíthető USB kábel
  • Széles működési hőmérséklet tartomány: -25 ~ +75°C
  • DIN sínre rögzíthető
  • USB-2068-18 10-channel Digital Input, 8-channel Relay Output Module
    The USB-2068-18 is an 8-channel Form C relay output and 10-channel digital input module with the USB interface. All digital input channels can be used as 32-bit counters. In addition, the digital input channels can be selected as sink/source type and dry/wet contact via wire connections. There are also options for configuring power-on and safe values. 8 kV ESD protection(for all channels) and 3750 VDC intra-module isolation(for digital input channels) are also provided to enhance noise protection capabilities in industrial environments.

    Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring.

    The USB I/O utility can help users to configure and control USB-2068-18 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2068-18 is the perfect way to add control capability to any USB capable computer.



    • 10-channel digital input and 8-channel relay output.
    • Dry Contact and Wet Contact Selectable via Wire Connections
    • All Digital Input Channels can used as 32-bit Counters
    • Form C Relay Output
    • 8kV ESD protection
    • Wide Operating Temperature Range
    • 3000 VDC Intra-Module Isolation
    • USB 2.0 Full-Speed
    • USB Bus Powered
    • Lockable USB cable
    • Driver Free

    • Automation
    • Measurement and testing
    • Laboratory research

    USB-2K Utility
    USB-2K Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB IO series modules without programming.
    • USB module configuration
    • I/O configuration
    • Log Data analysis
    • Easy to test

    VB/C++/C#.NET/VB.NET SDK
    ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.

    Relay Output
    Channels 8
    Output Type Form C
    Contact Rating (Resistive Load) 0.25 A @ 250 VAC
    0.24 A @ 220 VAC
    2 A @ 30 VDC
    Operate Time 3 ms (typical)
    Release Time 4 ms (typical)
    Insulation Resistance 109 Ω at 500VDC
    Dielectric Strength Between Open Contact 1000 Vrms (1 min.)
    Between Coil and Contacts 1500 Vrms (1 min.)
    Endurance Mechanical 1 x 108 ops
    Electrical 2 x 105 ops (at 30 V / 2 A)
    Power On Value Yes
    Safe Value Yes
    Digital Input / Counter
    Channels 10
    TypeDry Contact Close to GND
    Wet Contact Sink/Source
    On Voltage Level +10 ~ 50 VDC
    Off Voltage Level +4 VDC Max.
    Counters Max. Count 4294967295 (32-bit)
    Max. Input Frequency 500 Hz
    Min. Pulse Width 1ms
    Input Impedance 10 KΩ
    Overvoltage Protection 70 VDC
    Communication
    Interface USB 2.0 Full-Speed
    Watchdog 1 Hardware watchdog (1.6 second)
    1 Software watchdog (Programmable)
    LED Indicators
    System LED Indicators 3 LEDs as Power, Run and Error
    I/O LED indicators Yes, 12 LEDs Digital Input/ Relay Output Indicator
    Isolation
    Intra-Module Isolation, Field-to-Logic 3000 VDC
    EMS Protection
    ESD (IEC 61000-4-2) 8 kV contact for each terminal
    16 kV air for random point
    Mechanical
    Dimensions (W x L x H) 31 mm × 129 mm × 147mm
    Environmental
    Operating Temperature -25 ~ +75 °C
    Storage Temperature -40 ~ +85 °C
    Humidity 10 ~ 95% RH, non-condensing
    Power
    Power Consumption 2.3 W (Max.)

    USB-2068-18 10-channel Digital Input, 8-channel Relay Output Module
