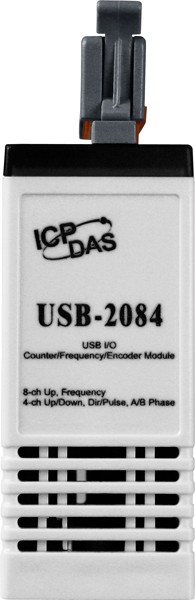

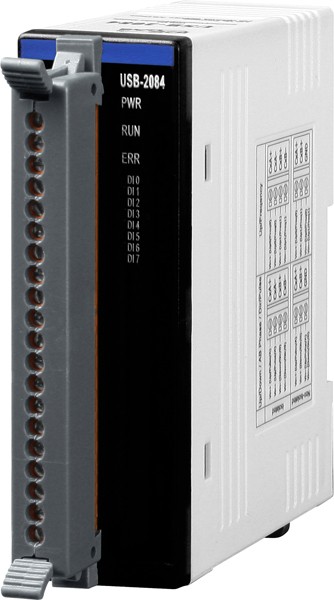

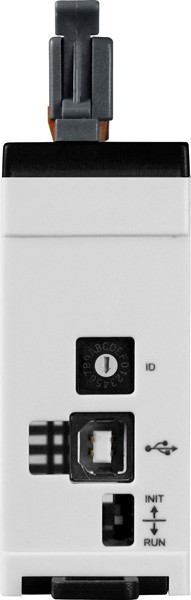

USB-2084 # USB I/O Modul/4x/8x/Számláló/Frekvencia/Enkoder, ICP DAS, ICP CON

The USB-2084 is a full-speed USB device with 8-channel for Frequency and Up Counters, or 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove a peripheral. The USB I/O utility can help users to configure and test USB-2084 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2084 is the perfect way to add measurement and control capability to any USB capable computer.

Counter measurement Frequency measurement Motion control

USB I/O Utility USB I/O Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB I/O series modules without programming.

Automatically scan all ICP DAS USB I/O modules Easily and quickly configure and test USB I/O modules Completely and precisely log I/O data for analysis

VB/C++/C#.NET/VB.NET SDK ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.

Input Channels 4 channels for Up/Down, Dir/Pulse and A/B Phase types 8 channels for Up and Frequency types Input Type Up, Frequency, Up/Down, Dir/Pulse, A/B Phase Resolution 32 bit Input Frequency Non-isolated: 500 KHz maximum Isolated: 250 KHz maximum Digital Noise Filter 1 ~ 32767 uS (Software programmable) Frequency Accuracy ±0.4% Isolated Input Level On Voltage Level +4.5 VDC ~ +30 VDC Off Voltage Level +1 VDC maximum Non-isolated Input Level (TTL) On Voltage Level +2 VDC ~ +5 VDC Off Voltage Level 0 VDC ~ +0.8 VDC Intra-Module Isolation, Field-to-Logic 2500 VDC Individual Channel Configuration Yes Communication Interface USB 2.0 Full-Speed Watchdog 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) LED Indicators System LED Indicators 3 LED as Power, Run and Error I/O LED indicators 8 LEDs as counter input indicators EMS Protection ESD (IEC 61000-4-2) 4 kV contact for each terminal 8 kV air for random point Mechanical Dimensions (W x L x H) 33 mm × 102 mm × 107 mm Environmental Operating Temperature -25 ~ +75 °C Storage Temperature -40 ~ +85 °C Humidity 10 ~ 95% RH, non-condensing Power Power Consumption Maximum: 1.30 W

USB-2084 4/8-channel Counter/Frequency/Encoder Module (RoHS)
