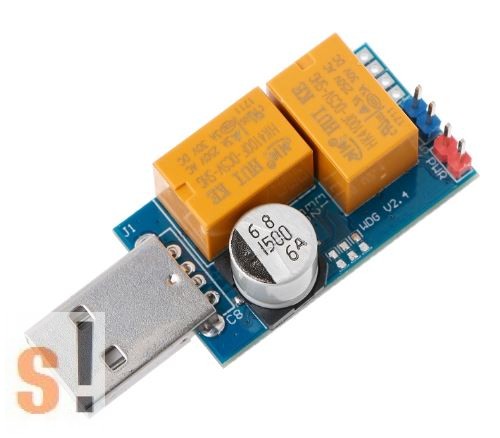

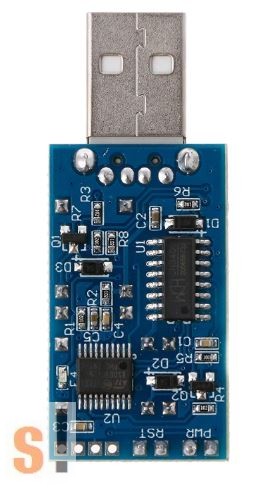

The computer blue screen / death automatically restarts the USB smart watchdog, which is used for mining, server, game player, monitoring system and other computer equipment that needs 365x24 hours to boot. When the computer crashes, the computer will force the hardware to restart.
Applicable to all kinds of computer motherboards, no need to change the motherboard hardware, the motherboard with USB interface can be used with the computer's watchdog software at the same time, need to install the driver, the purpose is to be compatible with various motherboards, monitor more parameters.Double Relay USB Watchdog Card Unattended Automatic Restart Blue Screen Crash Timer Reboot For 24H PC
uitable for mining, servers, gamers, monitoring systems and other computer equipment 24 Hours Boot , when the computer crashes to force the computer to force the hardware power reboot .
Profession ,Gamer necessity ，356 X 24 Hours ,Dual Relay, USB Power supply , Support Power reboot , Suitable Multiple Computer Board .
MANUAL
Introduction
Computer blue screen crash automatically restart USB smart watchdog, used in mining, servers, gamers, monitoring
systems and other needs 365x24 hours boot computer equipment, when the computer crash to achieve the computer
forced hardware reboot.
【Technical Specifications】
1、reset timeout time 10-1270 seconds, the default 180 seconds
2、computer-side monitoring software: USBWatchdog_V2.3
3、interface: USB
4、support calls automatically boot (if you do not need to call the boot, do not take the machine can line), crashes forced power to restart, to avoid some motherboard crashes after the restart button does not work embarrassment
5、information address: https://www.se.hu/shop_ordered/31056/pic/Letoltesek/USBWatchdog_V2.5.3_en.zip
The installation process
1. Install the driver, do not connect USB watchdog, double-click the data inside the "watchdog driver.exe", click
"install", waiting for the installation is complete.
2. Put the USB watchdog into the computer any USB port. Temporarily do not plug the cable in the motherboard pin above, because the factory default timeout is 3 minutes, if not within 3 minutes to drive and program Installed, the watchdog may send a signal to cause the system to restart.
3. Watchdog monitor software configuration, open config.inf file, parameter description, you can not modify the use of
the default configuration:
timeout = 180; // timeout reset time, can only be an integer of 10, range 10-1270 seconds
AppName =; // The name of the program being monitored, note that the window title name must be in English, note that the case must be the same, do not fill that does not monitor
HttpName = // monitored link domain name, not filled that does not monitor, such as pool.ethfans.org
TimedRestartDays = 3; // Timed automatic restart days
VideoCardMonitor = 1; / / whether to monitor the graphics card, 0 does not monitor, 1 monitor
4. Run the watchdog software USBWatchdog, part of the installation of anti-virus software system may prevent the program running, please click "allow", watchdog software normal operation, control
LED on the system board will flash once 1 second, then the cable will be inserted into the corresponding pin on the motherboard, if the control panel LED is always lit that the computer is dead or running is not normal, the watchdog will set the time to restart.
Reset timeout period 10-1270s ,default 180s
Computer monitoring software ：USBWatchdog_V2.3
Interface Type:USB
Support points to automatically boot (such as do not need to boot, do not take the switch line), crash forced power reboot
How to use :
1. Insert the product into the computer's USB port.
2.Check the product device below Computer Device Manager. The product displays an exclamation point, requires driver installation.
3.Double-click ‘WatchDogDriver’ for install the driver.
4.Click "INSTALL", and start the installation.
5.Click ‘OK’, finish install.
6.View the product device below Computer Device Manager. The product shows normal.
7.Restarting the computer.
8.Plug the cable into the computer "PWR", "RST".
9.Plug the cable into the product "PWR", "RST".
10.Double-click "USBWatchdog" to run the software.
11.The software is operating normally.
12.Double-click the "config" for setting software.
13.Turn on the Settings Window.
14.Set the Monitor Program’s Name.
15.After setting, click save.
16.Double-click "USBWatchdog" to run the software again.
17.The necessary settings can also be made in the software window.
18.Open the monitoring project, the product to work began, the installation is complete.
Note:
Parts of the system that install antivirus software may prevent the program from running, please click "Allow", watchdog software normal operation, the control Board of the LED will blink once a second, at this time will be inserted into the motherboard of the corresponding tube (pin) feet, if the control Panel led steady means that the computer has crashed or is not working properly, The watchdog will reboot at the set time.

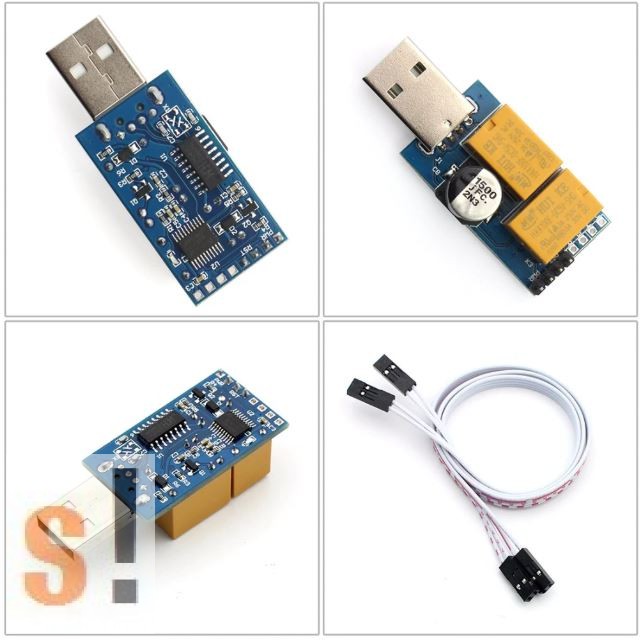

Package includes:
1 x Watchdog Control Board (No retail package)

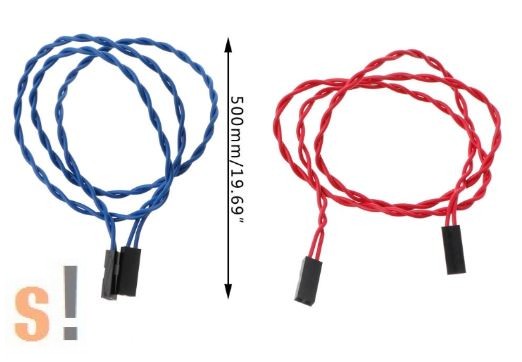

1 x Reset Control Cable
