Főkategória >PAC - PLC - Érintőképernyős PLC - HMI >WISE PAC (Web-bázisú PAC) >WISE-5231 - Web-bázisú intelligens IoT kontroller

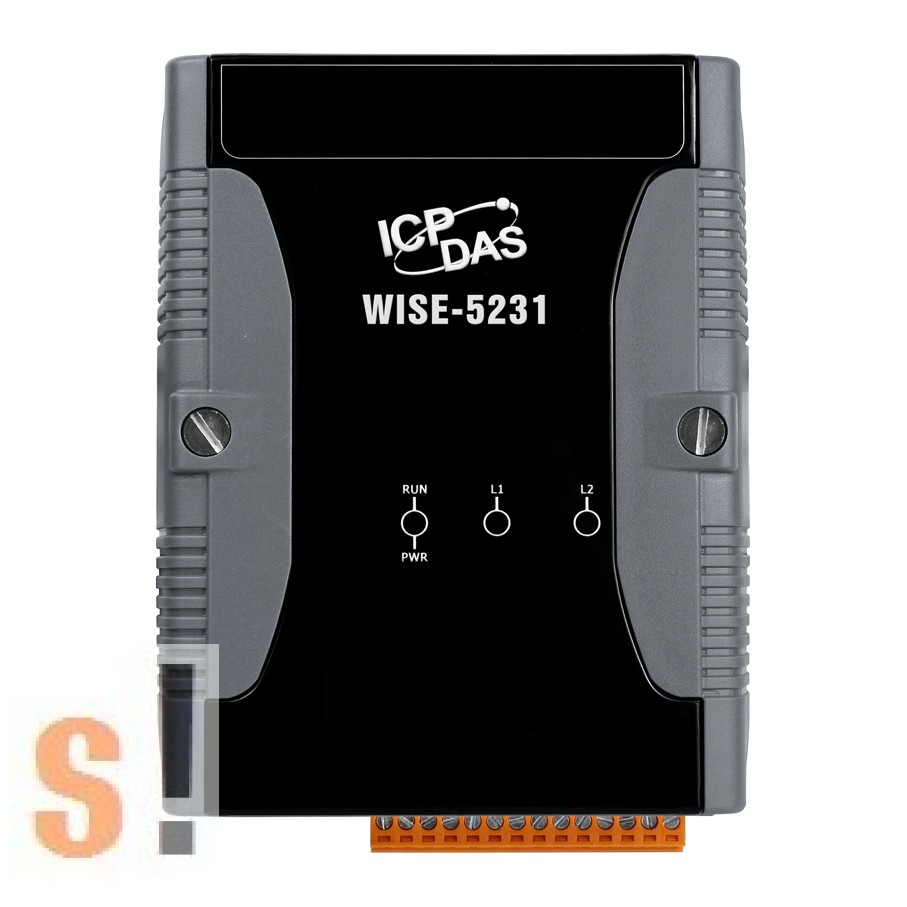

WISE-5231 # IIoT Koncentrátor/Kontroller/CE7.0/Web-bázisú/Intelligens, ICP DAS

Rendelésre 10-15 munkanap
Raktárkészlet: NINCS
WISE-5231 # IIoT Koncentrátor/Kontroller/CE7.0/Web-bázisú/Intelligens, ICP DAS
  • WISE-5231 # IIoT Koncentrátor/Kontroller/CE7.0/Web-bázisú/Intelligens, ICP DAS
  • WISE-5231 # IIoT Koncentrátor/Kontroller/CE7.0/Web-bázisú/Intelligens, ICP DAS
214 467 Ft 272 373 Ft
db Kosárba Kosárba
  • WISE-5231 # IIoT Koncentrátor/Kontroller/CE7.0/Web-bázisú/Intelligens, ICP DAS
  • WISE-5231 # Intelligent IIoT Concentrator
  • Runs on browsers, no extra software tool is required
  • No more programming, Web pages provided for control logic editing
  • IF-THEN-ELSE logic rules execution ability
  • Support XV-board
  • Support DCON or Modbus RTU Slave devices (Up to 32)
  • Support Modbus TCP Slave devices (Up to 16)
  • SSL/TLS Email sending function supported
  • Timer and Schedule functions supported
  • Data logger and data files send back function supported
  • Active I/O sending function for real-time data transfer
  • CGI Command sending and receiving function supported for IP Camera and Network device
  • Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols
  • Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix)
Részletek Adatok

  • WISE-5231 # IIoT Koncentrátor/Kontroller/CE7.0/Web-bázisú/Intelligens, ICP DAS
    WISE-5231 # Intelligent IIoT Concentrator



    WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending functions.
    WISE-5231 provides more supports in I/O module connection, I/O data logging and IoT platform integration. It allows connection to XV-board, DCON I/O modules, and Modbus TCP/RTU Slave modules all together. The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE-5231 provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker. WISE also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE-5231 is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE-5231 the best choice in the IoT Age.



    Támogatott modulok:

    I/O Type Functions Modules
    I-7000 Remote I/O Module AI/AO Voltage & Current I-7012、I-7012F、I-7017、I-7017F、I-7017R、I-7017C、I-7017FC、I-7017RC、I-7017R-A5、I-7017Z
    Thermocouple I-7011、I-7011P、I-7018、I-7018BL、I-7018P、I-7018R、I-7018Z、I-7019R
    RTD I-7013、I-7015、I-7015P、I-7033
    Thermistor I-7005
    Transmitter I-7014
    Strain Gauge I-7016、I-7016P
    Analog Output I-7021、I-7021P、I-7022、I-7024、I-7024R
    DI/DO DC Digital Input I-7041、I-7041P、I-7051、I-7052、I-7053_FG
    AC Digital Input I-7058、I-7059
    DC Digital Output I-7042、I-7043、I-7045、I-7045-NPN
    DC Digital Input & Output I-7044、I-7050、I-7050A、I-7055、I-7055-NPN
    Relay Output Power Relay Output I-7060、I-7061、I-7063、I-7065、I-7067
    Solid State Relay Output I-7063A、I-7063B、I-7065A、I-7065B
    Photomos Relay Output I-7066
    Others Counter/Frequency I-7080、I-7080B、I-7088
    M-7000 Remote I/O Module AI/AO Voltage & Current M-7017、M-7017C、M-7017R、M-7017R-A5、M-7017RC、M-7017Z
    Thermocouple M-7011、M-7018、M-7018R、M-7018Z、M-7019R、M-7019Z
    RTD M-7015、M-7015P
    Thermistor M-7005
    Strain Gauge M-7016
    Analog Output M-7022、M-7024、M-7024R
    DI/DO DC Digital Input M-7041、M-7041P、M-7041-A5、M-7051、M-7052、M-7053
    AC Digital Input M-7058、M-7059
    DC Digital Output M-7045、M-7045-NPN
    DC Digital Input & Output M-7050、M-7055、M-7055-NPN
    Relay Output Power Relay Output M-7060、M-7060P、M-7061、M-7065、M-7067、M-7068、M-7069
    Solid State Relay Output M-7065B
    Photomos Relay Output M-7066P
    Others Counter/Frequency M-7080、M-7080B、M-7084、M-7088
    Multi-Function M-7002
    tM Remote I/O Module AI/AO Voltage & Current tM-AD5、tM-AD5C、tM-AD8、tM-AD8C
    Thermistor tM-TH8
    DI/DO DC Digital Input tM-P8
    DC Digital Output tM-C8
    DC Digital Input & Output tM-P4A4、tM-P4C4
    Relay Output Power Relay Output tM-P3R3、tM-R5
    Photomos Relay Output tM-P3POR3
    Others Multi-Function tM-DA1P1R1、tM-AD4P2C2
    (P)ET-7000 Remote I/O Module AI/AO Voltage & Current (P)ET-7017、(P)ET-7217、(P)ET-7017-10、(P)ET-7217-10
    Thermocouple (P)ET-7018Z、(P)ET-7019、(P)ET-7019Z、(P)ET-7218Z、(P)ET-7219Z
    RTD (P)ET-7015、(P)ET-7215
    Thermistor (P)ET-7005
    Analog Output (P)ET-7028、(P)ET-7228
    DI/DO DC Digital Input (P)ET-7051、(P)ET-7053、(P)ET-7251、(P)ET-7253
    DC Digital Output (P)ET-7042、(P)ET-7242
    DC Digital Input & Output (P)ET-7044、(P)ET-7050、(P)ET-7052、(P)ET-7244、(P)ET-7252、(P)ET-7255
    Relay Output Power Relay Output (P)ET-7060、(P)ET-7067、(P)ET-7260、(P)ET-7261、(P)ET-7267
    Photomos Relay Output (P)ET-7065、(P)ET-7066
    Others Counter/Frequency (P)ET-7083、(P)ET-7283
    Multi-Function (P)ET-7002、(P)ET-7016、(P)ET-7024、(P)ET-7026、(P)ET-7202、(P)ET-7204、(P)ET-7224、(P)ET-7226
    WISE-7000 Remote I/O Module AI/AO Voltage & Current WISE-7117
    Thermocouple WISE-7118Z、WISE-7119
    RTD WISE-7115
    Transmitter WISE-7105
    DI/DO DC Digital Input WISE-7151、WISE-7153
    DC Digital Output WISE-7142
    DC Digital Input & Output WISE-7144、WISE-7150、WISE-7152
    Relay Output Power Relay Output WISE-7160、WISE-7167
    Others Multi-Function WISE-7102、WISE-7126
    WF-2000 Remote I/O Module AI/AO Voltage & Current WF-2017
    Thermocouple WF-2019
    RTD WF-2015
    DI/DO DC Digital Input WF-2051
    DC Digital Output WF-2042
    DC Digital Input & Output WF-2055
    Relay Output Power Relay Output WF-2060
    Others Multi-Function WF-2026
    LC Remote I/O Module DI/DO AC Digital Input LC-101、LC-103
    DC Digital Input LC-131
    Others Multi-Function LC-221
    SC Remote I/O Module Others Multi-Function SC-4104-W1
    DL Series Module Temperature / Humidity DL-100
    CO2 / Temperature / Humidity DL-302
    IR Series Module IR Learning Remote Module IR-210、IR-712、IR-712A、IR-712-MTCP
    XV-Board DI/DO DC Digital Input XV110
    DC Digital Output XV111、XV111A
    DC Digital Input & Output XV107、XV107A
    Relay Output Power Relay Output XV116
    Others Multi-Function XV306、XV307、XV308、XV310
    Modbus RTU/TCP Slave Module Coil Output / Discrete Input / Input Register / Holding Register



    Szoftver funkciók

    Function Description
    User-friendly and intuitive web site interface Browser Interface ● Runs on browsers, no extra software tool is required.
    ● No more programming, Web pages provided for control logic editing and system parameters setting.
    Various options for easy I/O module integration Local side I/O Interface ● Support XV-board.
    (XV107, XV107A, XV110, XV111, XV111A, XV116, XV306, XV307, XV308, XV310)
    Remote side I/O Interface (RS-485) ● Support ICP DAS I-7000/M-7000/tM/DL/LC/SC/IR series module.
    ● Support Modbus RTU Slave module.
    Remote side I/O Interface (Ethernet) ● Support ICP DAS WISE-7100/(P)ET-7000/WF-2000 series module.
    ● Support Modbus TCP Slave module.
    Intelligent Logic operation and data logger ability at field sites IF-THEN-ELSE Logic operation ● Provide IF-THEN-ELSE logic rule editing, and the ability for IF-THEN-ELSE logic rules execution.
    I/O channel monitoring and control ● Offers various options for I/O channel settings; for example: deadband setting for AI signals, linear scale setting, temperature degree in Celsius or Fahrenheit setting, power on value setting for DO channel, pulse output setting and DI counter setting, etc.
    Timer ● Perform the timing function. The status of Timer can be included in IF condition statements to trigger the THEN/ELSE actions.
    Schedule ● Perform the prescheduled routine tasks. The status of Schedule can be included in IF condition statements to trigger the THEN/ELSE actions. “Calendar” and “Weekly repeat” schedule setting UI are provided.
    Email ● Execute Email message sending. The SSL/TLS authentication is provided.
    CGI Command ● Perform CGI command sending and receiving functions. The content of CGI command receiving can be used in IF condition statements to trigger the THEN/ELSE actions.
    Data Logger ● Perform Data Logger function to real-time record the I/O channel data of the controller by Period or Event Trigger operation.
    Internal Register ● Work as a variable to hold the temporary value, and provide the basic mathematical operation.
    Various protocols for seamless integration with SCADA/MIS/ MES/IT/Network Management systems Real-Time I/O channel data ● Support Modbus TCP/RTU protocol for SCADA system.
    ● Support SNMP and MQTT protocols for the integration with MIS/MES/IT/Network Management systems.
    ● CGI Command sending and receiving function supported for the integration with IP Camera and Network devices.
    ● Active I/O sending mechanism supported.
    Historical I/O channel data files ● FTP Server/Client ability for the maintenance of data logger files and the data logger files automatically send back operation.
    ● Provide data recovery mechanism so that when experiences network disconnection, the data log files will be kept in WISE, and be recovered after the network is resumed.
    ● Provide alarm notification mechanism so that when microSD card is damaged, the data log file will be stored in WISE to ensure zero data loss of the data logger.
    Communication Service ● DDNS (Dynamic DNS) service supported.
    ● Support 3G Wireless data communication, and SMS message ending/receiving. (WISE-5231M-3GWA only)
    IoT Gateway Capability ● Connection with Microsoft Azure and IBM Bluemix IoT Cloud platform.
    ● Connection with ICP DAS IoTstar IoT Cloud Management Software.



    Specifikáció

    System
    CPU 32-bit ARM CPU
    Software Built-in WISE Firmware
    microSD Expansion Built-in one 4 GB microSD card (support up to 32 GB microSDHC card)
    Communication
    Ethernet RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X)
    COM 2 RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max.
    COM 3/COM 4 RS-485 (Data+, Data-), Speed: 115200 bps max. COM 4 provides 2500 VDC isolation
    LED Indicators
    Indicators Power LED (Red), System LED (Red, Green)
    I/O Module Support
    Local I/O Module Yes, one XV-board
    Remote I/O Module COM3 can connect to Max.16 DCON or Modbus RTU Slave modules;
    COM4 can connect to Max.16 DCON or Modbus RTU Slave modules;
    LAN interface can connect to Max. 16 Modbus TCP Slave modules.
    Power Requirements
    Input Range 12 to 48 VDC
    Power Consumption 4.8 W
    Mechanical
    Dimensions/Installation 91 mm x 132 mm x 52 mm (W x L x H) / DIN-Rail Installation
    Environmental
    Temperature Operating Temperature: -25°C to +75°C; Storage Temperature: -40°C to +80°C
    Humidity 10 to 90% RH, Non-condensing



    WISE-5231 CR
    Intelligent IIoT Concentrator
