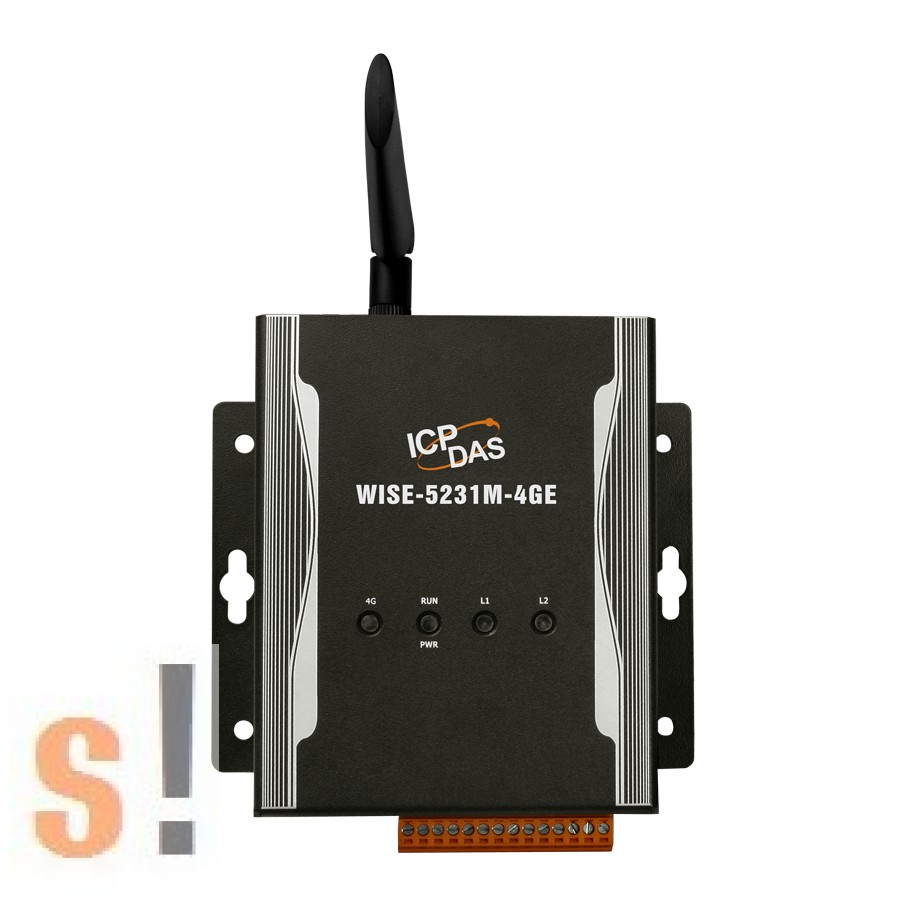

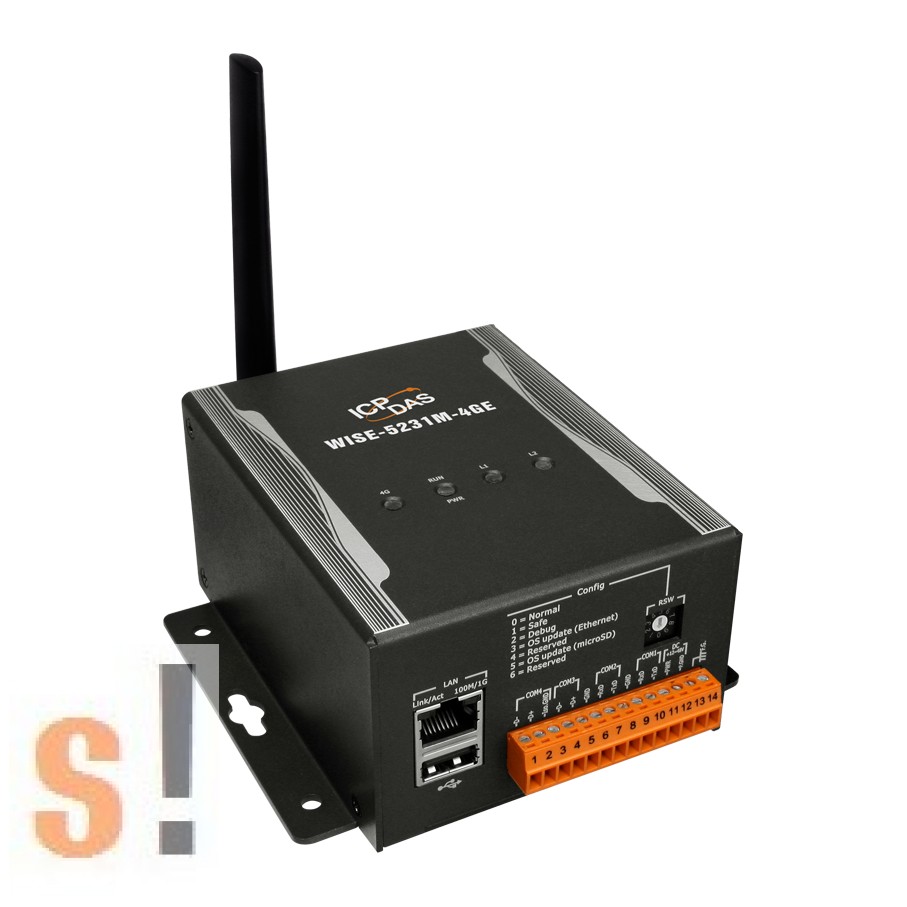

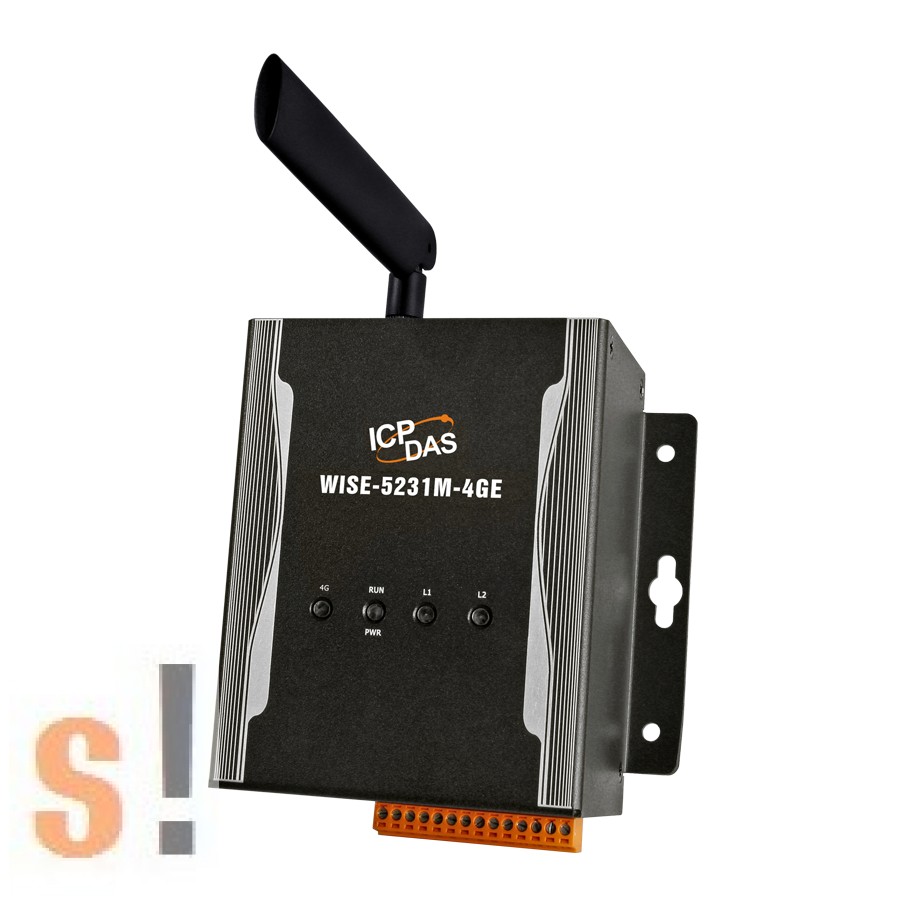

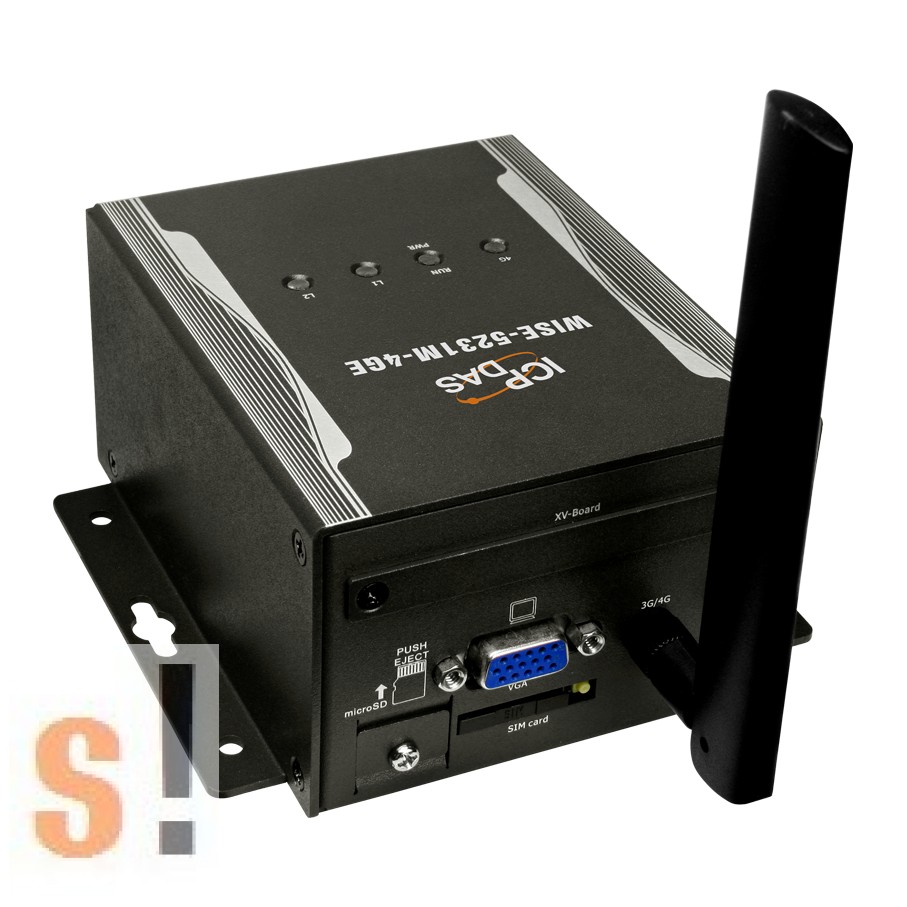

WISE-5231M-4GE CR # IIoT Edge Controller (Support 4G Wireless data communication; Frequency Band for EMEA, Korea, Thailand, India and Taiwan)
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending functions.
WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration. It allows connection to XV-board, DCON I/O modules, and Modbus TCP/RTU Slave modules all together. The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker. WISE also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE the best choice in the IoT Age.
| System |
| CPU |
32-bit ARM CPU |
| microSD Expansion |
Built-in one 4 GB microSD card (support up to 32 GB microSDHC card) |
| Communication |
| Ethernet |
RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X) |
| COM 2 |
RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. |
| COM 3/COM 4 |
RS-485 (Data+, Data-), Speed: 115200 bps max. COM 4 provides 2500 VDC isolation |
| LED Indicators |
| Indicators |
Power/Run LED (Green, Red), 3G/4G LED (Green), L1 (Green), L2 (Green) |
| I/O Module Support |
| Local I/O Module |
Yes, one XV-board |
| Remote I/O Module |
COM3 can connect to Max. 16 DCON or Modbus RTU Slave modules
COM4 can connect to Max. 16 DCON or Modbus RTU Slave modules
LAN interface can connect to Max. 16 Modbus TCP Slave modules |
| Power Requirements |
| Input Range |
12 to 48 VDC |
| Power Consumption |
6.5 W |
| Mechanical |
Dimensions/Installation
(W x L x H) |
117 mm x 126 mm x 58 mm / Wall Mounting Installation / DIN-Rail Installation |
| Environmental |
| Temperature/Humidity |
Operating Temperature: -25 °C to +75 °C
Storage Temperature: -40 °C to +80 °C
10 to 90% RH, Non-condensing |
| 3G System |
| Frequency Band |
4GE : WCDMA 850/900/2100 MHz
4GC : WCDMA 900/2100 MHz; TD-SCDMA 1900/2100 MHz; CDMA2000 (BC0) 800 MHz |
| 4G System |
| Frequency Band |
4GE : FDD LTE: B1/B3/B5/B7/B8/B20 MHz
4GC : FDD LTE: B1/B3/B8 MHz; TDD LTE: B38/B39/B40/B41 MHz
|
| Function |
Description |
| User-friendly and intuitive web site interface |
Browser Interface |
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing and system parameters setting.
|
| Various options for easy I/O module integration |
Local side I/O Interface |
- Support XV-board.
(XV107, XV107A, XV110, XV111, XV111A, XV116, XV306, XV307, XV308, XV310)
|
| Remote side I/O Interface (RS-485) |
- Support ICP DAS I-7000/M-7000/tM/DL/LC/SC/IR series module.
- Support Modbus RTU Slave module.
|
| Remote side I/O Interface (Ethernet) |
- Support ICP DAS WISE-7100/(P)ET-7000/WF-2000 series module.
- Support Modbus TCP Slave module.
|
| Intelligent Logic operation and data logger ability at field sites |
IF-THEN-ELSE Logic operation |
- Provide IF-THEN-ELSE logic rule editing, and the ability for IF-THEN-ELSE logic rules execution.
|
| I/O channel monitoring and control |
- Offers various options for I/O channel settings; for example: deadband setting for AI signals, linear scale setting, temperature degree in Celsius or Fahrenheit setting, power on value setting for DO channel, pulse output setting and DI counter setting, etc.
|
| Timer |
- Perform the timing function. The status of Timer can be included in IF condition statements to trigger the THEN/ELSE actions.
|
| Schedule |
- Perform the prescheduled routine tasks. The status of Schedule can be included in IF condition statements to trigger the THEN/ELSE actions. “Calendar” and “Weekly repeat” schedule setting UI are provided.
|
| Realtime message sending function |
- Support LINE, Messenger, SMS and Email for realtime message sending.

|
| CGI Command |
- Perform CGI command sending and receiving functions. The content of CGI command receiving can be used in IF condition statements to trigger the THEN/ELSE actions.
|
| Data Logger |
- Perform Data Logger function to real-time record the I/O channel data of the controller by Period or Event Trigger operation.
|
| Internal Register |
- Work as a variable to hold the temporary value, and provide the basic mathematical operation.
|
| Various protocols for seamless integration with SCADA/MIS/MES/IT/Network Management systems |
Real-Time I/O channel data |
- Support Modbus TCP/RTU protocol for SCADA system.
- Support SNMP and MQTT protocols for the integration with MIS/MES/IT/Network Management systems.
- CGI Command sending and receiving function supported for the integration with IP Camera and Network devices.
- Active I/O sending mechanism supported.
|
| Historical I/O channel data files |
- FTP Server/Client ability for the maintenance of data logger files and the data logger files automatically send back operation.
- Provide data recovery mechanism so that when experiences network disconnection, the data log files will be kept in WISE, and be recovered after the network is resumed.
- Provide alarm notification mechanism so that when microSD card is damaged, the data log file will be stored in WISE to ensure zero data loss of the data logger.
|
| Communication Service |
- DDNS (Dynamic DNS) service supported.
- Support 4G/3G Wireless data communication.
|
| IoT Gateway Capability |
- Connection with Microsoft Azure and IBM Bluemix IoT Cloud platform.
- Connection with ICP DAS IoTstar IoT Cloud Management Software.
|
| I/O Type |
Functions |
Modules |
| I-7000 Remote I/O Module |
AI/AO |
Voltage & Current |
I-7012, I-7012D, I-7012F, I-7012FD, I-7017, I-7017F,
I-7017R, I-7017C, I-7017FC, I-7017RC, I-7017R-A5,
I-7017Z |
| Thermocouple |
I-7011, I-7011D, I-7011P, I-7011PD, I-7018,
I-7018BL, I-7018P, I-7018R, I-7018Z, I-7019R |
| RTD |
I-7013, I-7013D, I-7015, I-7015P, I-7033, I-7033D |
| Thermistor |
I-7005 |
| Transmitter |
I-7014D |
| Strain Gauge |
I-7016, I-7016D, I-7016P, I-7016PD |
| Analog Output |
I-7021, I-7021P, I-7022, I-7024, I-7024R |
| DI/DO |
DC Digital Input |
I-7041, I-7041D, I-7041P, I-7041PD, I-7051, I-7051D,
I-7052, I-7052D, I-7053_FG, I-7053D_FG |
| AC Digital Input |
I-7058, I-7058D, I-7059, I-7059D |
| DC Digital Output |
I-7042, I-7042D, I-7043, I-7043D, I-7045, I-7045D,
I-7045-NPN, I-7045D-NPN |
| DC Digital Input & Output |
I-7044, I-7044D, I-7050, I-7050D, I-7050A, I-7050AD,
I-7055, I-7055D, I-7055-NPN, I-7055D-NPN |
| Relay Output |
Power Relay Output |
I-7060, I-7060D, I-7061, I-7061D, I-7063, I-7063D,
I-7065, I-7065D, I-7067, I-7067D |
| Solid State Relay Output |
I-7063A, I-7063AD, I-7063B, I-7063BD, I-7065A,
I-7065AD, I-7065B, I-7065BD |
| Photomos Relay Output |
I-7066, I-7066D |
| Others |
Counter/Frequency |
I-7080, I-7080D, I-7080B, I-7080BD, I-7088 |
| M-7000 Remote I/O Module |
AI/AO |
Voltage & Current |
M-7017, M-7017C, M-7017R,
M-7017R-A5, M-7017RC, M-7017Z |
| Thermocouple |
M-7011, M-7018, M-7018R,
M-7018Z, M-7019R, M-7019Z |
| RTD |
M-7015, M-7015P |
| Thermistor |
M-7005 |
| Strain Gauge |
M-7016 |
| Analog Output |
M-7022, M-7024, M-7024R |
| Analog Input |
M-7017RMS |
| DI/DO |
DC Digital Input |
M-7041, M-7041P, M-7041-A5,
M-7051, M-7052, M-7053 |
| AC Digital Input |
M-7058, M-7059 |
| DC Digital Output |
M-7043, M-7045, M-7045-NPN |
| DC Digital Input & Output |
M-7050, M-7055, M-7055-NPN |
| Relay Output |
Power Relay Output |
M-7060, M-7060P, M-7061, M-7065,
M-7067, M-7068、M-7069 |
| Solid State Relay Output |
M-7065B |
| Photomos Relay Output |
M-7066P |
| Others |
Counter/Frequency |
M-7080, M-7080B, M-7084, M-7088 |
| Multi-Function |
M-7002, M-7024U, M-7026 |
| tM Remote I/O Module |
AI/AO |
Voltage & Current |
tM-AD5, tM-AD5C, tM-AD8, tM-AD8C |
| Thermistor |
tM-TH8 |
| DI/DO |
DC Digital Input |
tM-P8 |
| DC Digital Output |
tM-C8 |
| DC Digital Input & Output |
tM-P4A4, tM-P4C4 |
| Relay Output |
Power Relay Output |
tM-P3R3, tM-R5 |
| Photomos Relay Output |
tM-P3POR3 |
| Others |
Multi-Function |
tM-DA1P1R1, tM-AD4P2C2 |
| (P)ET-7000 Remote I/O Module |
AI/AO |
Voltage & Current |
(P)ET-7017, (P)ET-7217, (P)ET-7017-10, (P)ET-7217-10 |
| Thermocouple |
(P)ET-7018Z, (P)ET-7019, (P)ET-7019Z, (P)ET-7218Z, (P)ET-7219Z |
| RTD |
(P)ET-7015, (P)ET-7215 |
| Thermistor |
(P)ET-7005 |
| DI/DO |
DC Digital Input |
(P)ET-7051, (P)ET-7053, (P)ET-7251, (P)ET-7253 |
| DC Digital Output |
(P)ET-7042, (P)ET-7242 |
| DC Digital Input & Output |
(P)ET-7044, (P)ET-7050, (P)ET-7052, (P)ET-7244, (P)ET-7252, (P)ET-7255 |
| Relay Output |
Power Relay Output |
(P)ET-7060, (P)ET-7067, (P)ET-7260, (P)ET-7261, (P)ET-7267 |
| Photomos Relay Output |
(P)ET-7065, (P)ET-7066 |
| Others |
Multi-Function |
(P)ET-7002, (P)ET-7016, (P)ET-7024, (P)ET-7026, (P)ET-7202, (P)ET-7224, (P)ET-7226 |
| WISE-7000 Remote I/O Module |
AI/AO |
Voltage & Current |
WISE-7117 |
| Thermocouple |
WISE-7118Z, WISE-7119 |
| RTD |
WISE-7115 |
| Transmitter |
WISE-7105 |
| DI/DO |
DC Digital Input |
WISE-7151, WISE-7153 |
| DC Digital Output |
WISE-7142 |
| DC Digital Input & Output |
WISE-7144, WISE-7150, WISE-7152 |
| Relay Output |
Power Relay Output |
WISE-7160, WISE-7167 |
| Others |
Multi-Function |
WISE-7102, WISE-7126, WISE-7255 |
| WF-2000 Remote I/O Module |
AI/AO |
Voltage & Current |
WF-2017 |
| Thermocouple |
WF-2019 |
| DI/DO |
DC Digital Input |
WF-2051 |
| DC Digital Output |
WF-2042 |
| DC Digital Input & Output |
WF-2055 |
| Relay Output |
Power Relay Output |
WF-2060 |
| Others |
Multi-Function |
WF-2026 |
| LC Remote I/O Module |
DI/DO |
AC Digital Input |
LC-101, LC-103 |
| DC Digital Input |
LC-131 |
| Others |
Multi-Function |
LC-221 |
| SC Remote I/O Module |
Others |
Multi-Function |
SC-4104-W1 |
| DL Series Module |
Temperature / Humidity |
DL-100 |
| CO / Temperature / Humidity |
DL-301 |
| CO2 / Temperature / Humidity |
DL-302 |
| CO / CO2 / Temperature / Humidity |
DL-303 |
| IR Series Module |
IR Learning Remote Module |
IR-210, IR-712, IR-712A, IR-712-MTCP |
| XV-Board |
DI/DO |
DC Digital Input |
XV110 |
| DC Digital Output |
XV111, XV111A |
| DC Digital Input & Output |
XV107, XV107A |
| Relay Output |
Power Relay Output |
XV116 |
| Others |
Multi-Function |
XV306, XV307, XV308, XV310 |
| Modbus RTU/TCP Slave Module |
Coil Output / Discrete Input / Input Register / Holding Register |
|
