iDS-728i-T # intelligens soros-ethernet szerver, 2x szigetelt RS-232/422/485 port, ICP DAS

iDS-718i-D CR Intelligent Device Server with 1 RS-232/422/485 (Isolated, RoHS, DB9)
iDS-718iM-D CR Intelligent Device Server with 1 RS-232/422/485 (Isolated, Metal Case,RoHS, DB9)
iDS-728i-T CR Intelligent Device Server with 2 RS-232/422/485 (RoHS,Terminal block)
iDS-728iM-T CR Intelligent Device Server with 2 RS-232/422/485 (Metal Case,RoHS,Terminal block)
iDS-448iM-D CR Intelligent Device Server with 4 RS-232/422/485 (Isolated, Metal Case,RoHS, DB9)

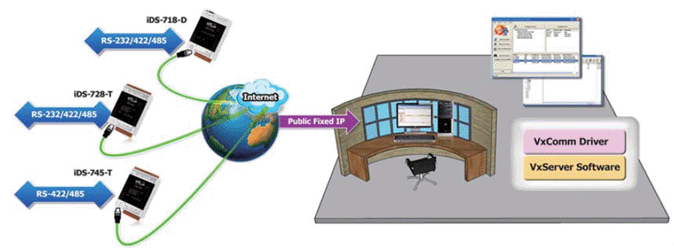

The iDS product range is the 3rd generation of Device Servers from ICPDAS. It is designed for rugged, industrial-level applications, and provides high performance, high reliability and high capacity. The iDS product range provides a complete Ethernet service, as well as 1、2 and 4-port RS-232/RS-422/RS-485 interfaces that allow any existing serial devices to be connected to an Ethernet network.

Powerful Data Transparent Solution: Zero Data Loss The iDS product range is equipped with an ARM-based high-performance CPU and large capacity RAM in order to accomplish the goal of “Zero Data Loss” when attempting to transfer a critical data stream. If a failure occurs on the Ethernet connection, the serial data will be queued and will be resent once the Ethernet is reconnected. Each device port provides 32 TCP connections that can be used to share the same information across the network from a single serial device. Industrial–grade Design

The iDS product range provides a wide range of built-in features designed for easy deployment of the device into existing operating environments. Dual Power Supply: DC and PoE DIN-Rail Mounting Serial Port Surge Protection Adjustable RS-485 Terminal Resistor and Pull High/Low Resistor RS-485 Direction Control via the embedded ICPDAS Self-Tuner Hardware/Software-selectable RS-232, RS-422 or RS-485 Interfaces Hardware Reset button and LED Indicator. 64-bit Hardware Serial Number Easy web-based Configuration The built-in web server allows the iDS product to be accessed and configured using a standard web browser, such as Internet Explorer or Google Chrome. The configurations include parameters of serial ports, SNMP, the mode of Serial-To-Ethernet service. In addition, the onboard Flash memory provides the capacity for future software upgrades.

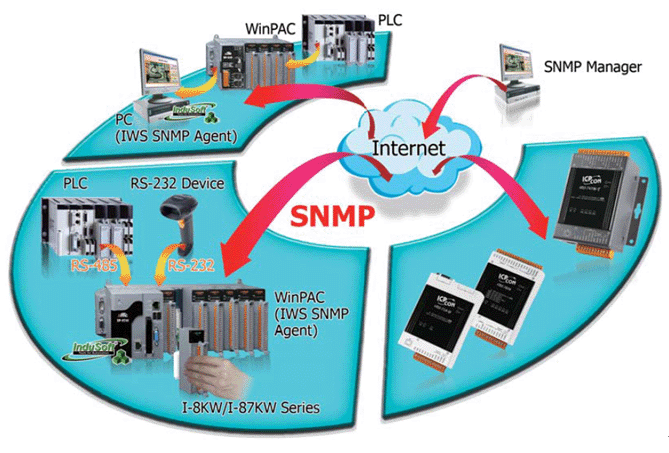

IT-friendly Management All devices in the iDS product range support the SNMP protocol, which is a popular method within the IT industry for monitoring a device over the Ethernet. The iDS device can be configured to send SNMP-Trap alerts to the SNMP manager if user-defined errors or events are encountered. For example, alerts can be triggered by a warm/cold start events, or a password change, etc. An email alert and web-based event log page is also provided. Perfect Harmony Making the right decision leads to lazy days on the beach.

Rendszer specifikáció:

Models iDS-718i-D iDS-728i-T iDS-718iM-D iDS-728iM-T iDS-448iM-D CPU Module CPU 32-bit RISC, 720 Mhz RAM 256 MB DDR3 Flash 256 MB Peripheral microSD, RTC, Serial Number, Watchdog, Buzzer Communication Interface COM1 5-wire RS-232/422/485 (Isolated) COM2 – 5-wire RS-232/422/485 (Isolated) – 5-wire RS-232/422/485 (Isolated) 5-wire RS-232/422/485 (Isolated) COM3 – – – – 5-wire RS-232/422/485 (Isolated) COM4 – – – – 5-wire RS-232/422/485 (Isolated) Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, Auto MDI/MDI-X, LED indicators), PoE (IEEE 802.3af, Class 1) COM Port Signals 3-wire RS-232 RxD, TxD and GND 5-wire RS-232 RxD, TxD, CTS, RTS and GND RS-422/485 TxD+, TxD-, RxD+, RxD- and GND/Data+, Data- and GND RS-485 Data+, Data- and Iso.GND COM Port Formats Data Bits 5, 6, 7, 8 Parity None, Even, Odd, Mark, Space Stop Bits 1, 1.5, 2 Baud Rate 921.6 kbps Max. Flow Control RTS/CTS, XON/XOFF Pull High/Low Resistor Switch-selectable (1 kΩ for RS-422/485, Non-Resistor for RS-232) Power ESD Protection Yes (with Frame Ground) Protection Power input reverse polarity protection Required Supply Voltage +12 VDC ~ +48 VDC (non-regulated) or PoE (IEEE 802.3af, Class 1) Power Consumption 3.5 W Software Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, SSH, FTP, SFTP, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP Configuration Method Web, Serial Console, Telnet/SSH Console, eSearch Utility for Windows Virtual COM for Windows Windows 2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, XP Embedded Virtual COM for Linux Linux kernel 2.4.x, 2.6.x, 3.x SNMP Standards RFC1213 MIB-II, RFC1317 Application Modes Virtual COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, TCP Modem Mechanism Dimensions (W x H x D) 78 mm x 114 mm x 42 mm (97 mm x 114 mm x 42 mm for "M" versions ) 78 mm x 120 mm x 42 mm ( 97 mm x 120 mm x 42 mm for "M" versions ) Installation DIN-Rail Casing Plastic (Metal for "M" versions) Environment Operating Temperature -25 °C ~ +75 °C Storage Temperature -40 °C ~ +80 °C Humidity 5 ~ 90% RH, non-condensing

Rendelési információk:

iDS-718i-D CR Intelligent Device Server with 1 RS-232/422/485 (Isolated, RoHS, DB9) iDS-718iM-D CR Intelligent Device Server with 1 RS-232/422/485 (Isolated, Metal Case,RoHS, DB9) iDS-728i-T CR Intelligent Device Server with 2 RS-232/422/485 (RoHS,Terminal block) iDS-728iM-T CR Intelligent Device Server with 2 RS-232/422/485 (Metal Case,RoHS,Terminal block) iDS-448iM-D CR Intelligent Device Server with 4 RS-232/422/485 (Isolated, Metal Case,RoHS, DB9)
