tM-P3R3 # I/O Module/Modbus RTU/tiny/3 Relay/3DI, ICP DAS, ICP CON

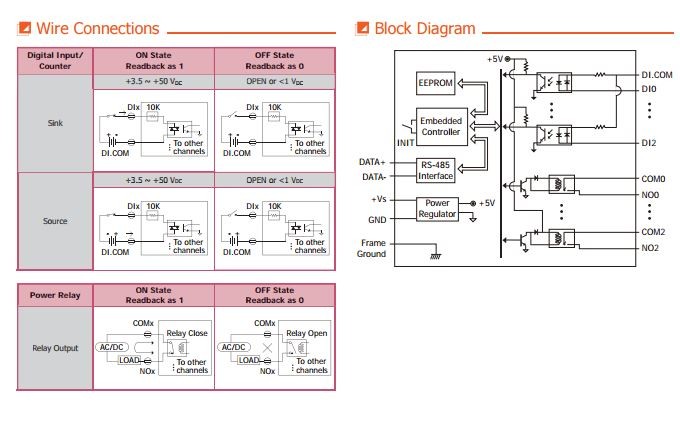

The tM-P3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocouple isolation. All output channels are form A type relays, while input is based on sink- or souce-type using a wire connecion. All input channels can be used an 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

All kinds of On/Off Control Industry Automation Industrial Machinery Building Automation Food & Beverage Systems Semiconductor Fabrication Control Systems

Digital Input/Counter Input Channels 3 Type Wet Contact (Sink, Source) On Voltage Level +3.5 VDC ~ 50 VDC Off Voltage Level +1 V Max. Input Impedance 10 KΩ, 0.66 W  Counters Channels 3 Max. Count 65535 (16-bit) Max. Input Frequency 100 Hz Min. Pulse Width 5 ms Overvoltage Protection 70 VDC Relay Output Output Channels 3 Type Power Relay, Form A (SPST N.O.) Operating Voltage Range 250 VAC or 30 VDC Max. Load Current 5 A Operating Time 6 ms Release Time 3 ms Electrical Life (Resistive load) VDE 5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C UL 5 A @250 VAC/30 VDC 6,000 ops 3 A @250 VAC/30 VDC 100,000 ops Mechanical Life 20,000,000 ops at no load (300 ops/minute) Power-on Value Yes, Programmable Safe Value Yes, Programmable

Communication Interface RS-485 Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) Baud Rate 1200 ~ 115200 bps Protocol DCON, Modbus/RTU, Modbus/ASCII Dual Watchdog Yes, Module (2.3 seconds), Communication (Programmable) LED Indicators Power 1 LED as Power Indicator Isolation Intra-module Isolation,Field-to-Logic 3750 VDC EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal ±8 kV Air for Random Point EFT (IEC 61000-4-4) ±4 kV for Power Power Requirements Reverse Polarity Protection Yes Powered from Terminal Block Yes, 10 ~ 30 VDC Consumption 0.5 W Max. Mechanical Dimensions (W x L x H) 52 mm x 98 mm x 27 mm Installation DIN-Rail Mounting Environment Operating Temperature -25 °C ~ +75 °C Storage Temperature -30 °C ~ +75 °C Humidity 10 ~ 95% RH, Non-condensing

tM-P3R3 CR 3-channel Isolation Digital Input and 3-channel Relay Output Module (RoHS)
