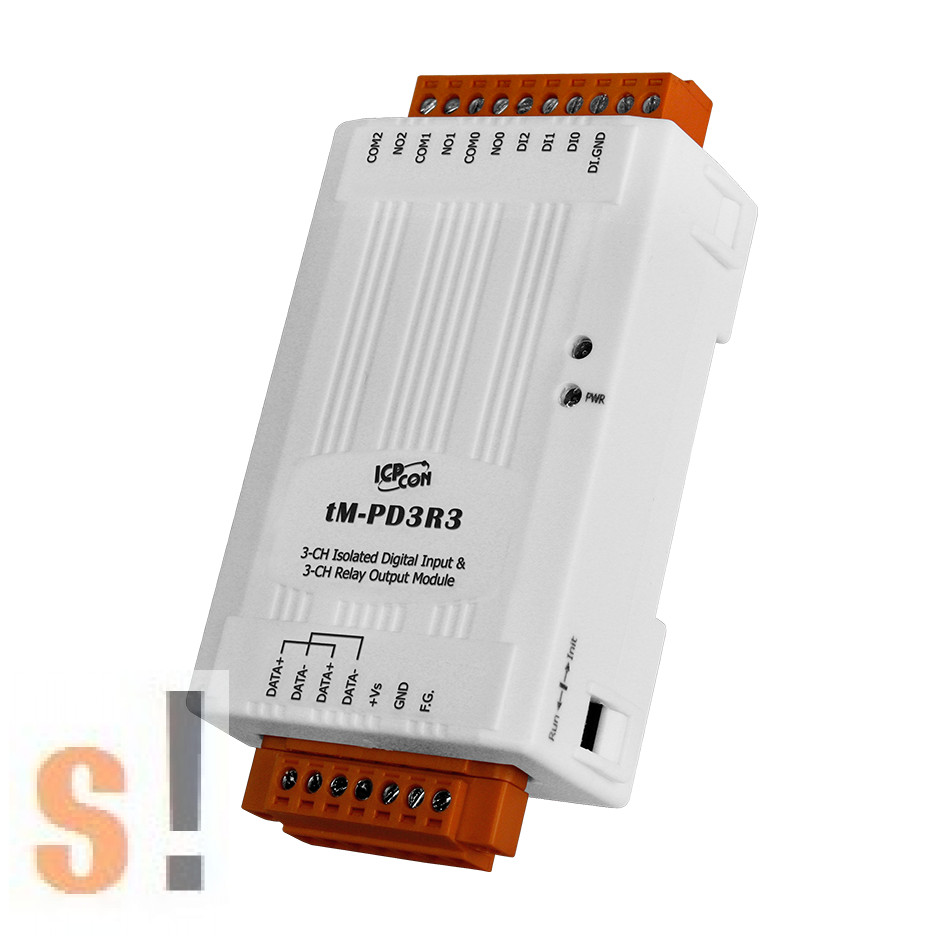

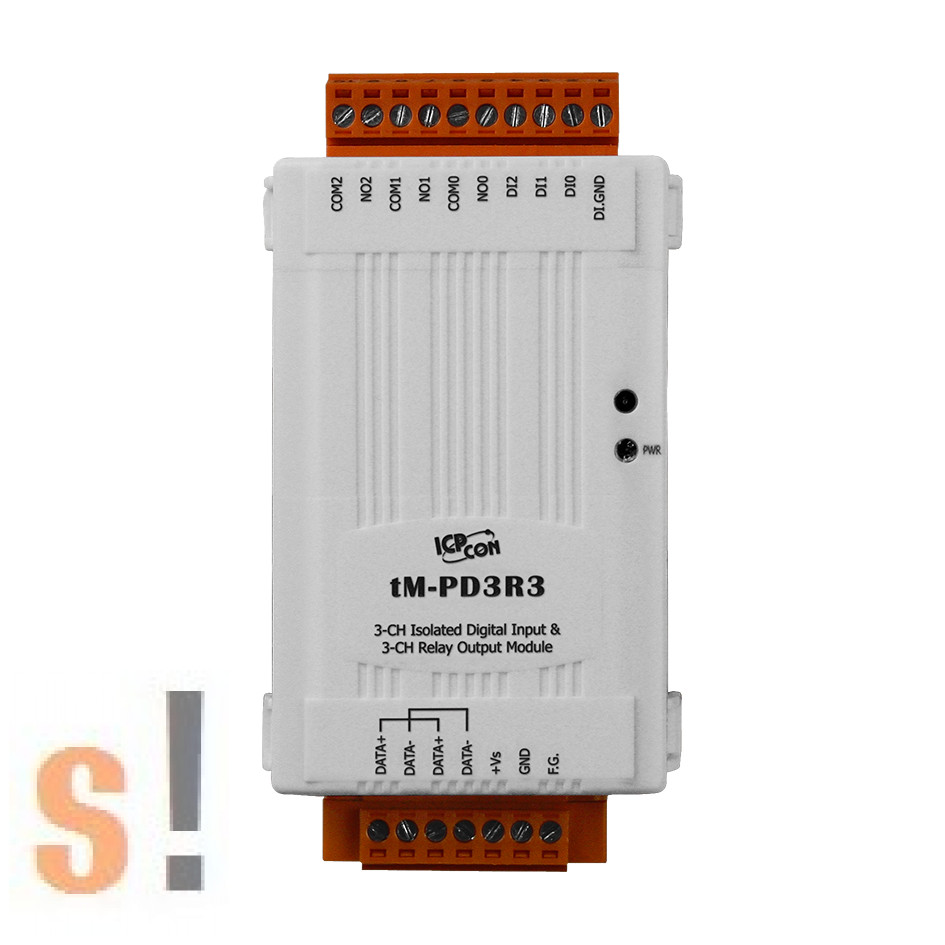

The tM-P3R3/tM-PD3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocoupler isolation. All output channels are form A type relays, while input is based on sink- or souce-type using a wire connecion. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
| I/O Specifikáció: |
| Model |
tM-P3R3 |
tM-PD3R3 |
| Digital Input/Counter |
| Input Channels |
3 |
| Type |
Wet Contact (Sink, Source) |
Dry Contact (Source) |
| Wet Contact |
On Voltage Level |
+3.5 VDC ~ 50 VDC |
- |
| OFF Voltage Level |
+1 VDC Max. |
- |
| Dry Contact |
ON Voltage Level |
- |
Close to GND |
| OFF Voltage Level |
- |
Open |
| Counters |
Max. Count |
65535 (16-bit) |
| Max. Input Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
10 kΩ, 0.5 W |
- |
| Overvoltage Protection |
70 VDC |
- |
| Relay Output |
| Output Channels |
3 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Operating Voltage Range |
250 VAC or 30 VDC |
| Max. Load Current |
5 A |
| Operating Time |
6 ms |
| Release Time |
3 ms |
Electrical Life
(Resistive load) |
VDE |
5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C |
| 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C |
| UL |
5 A @250 VAC/30 VDC 6,000 ops |
| 3 A @250 VAC/30 VDC 100,000 ops |
| Mechanical Life |
20,000,000 ops at no load (300 ops/minute) |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
| |
| Rendszer specifikáció: |
| Model |
tM-P3R3 |
tM-PD3R3 |
| Communication |
| Interface |
RS-485 |
| Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
DCON, Modbus/RTU, Modbus/ASCII |
| Dual Watchdog |
Yes, Module (2.3 seconds), Communication (Programmable) |
| LED Indicators |
| Power |
1 LED as Power Indicator |
| Isolation |
| Intra-module Isolation,Field-to-Logic |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
Yes, 10 ~ 30 VDC |
| Consumption |
0.8 W Max. |
0.9 W Max. |
| Mechanical |
| Dimensions (W x L x H) |
52 mm x 98 mm x 27 mm |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
|
| |
| Rendelési információk: |
| tM-P3R3 CR |
3-channel Isolation Digital Input(Wet Contact) and 3-channel Relay Output Module(RoHS) |
| tM-PD3R3 CR |
3-channel Isolation Digital Input(Dry Contact) and 3-channel Relay Output Module (RoHS) |
|
| |
