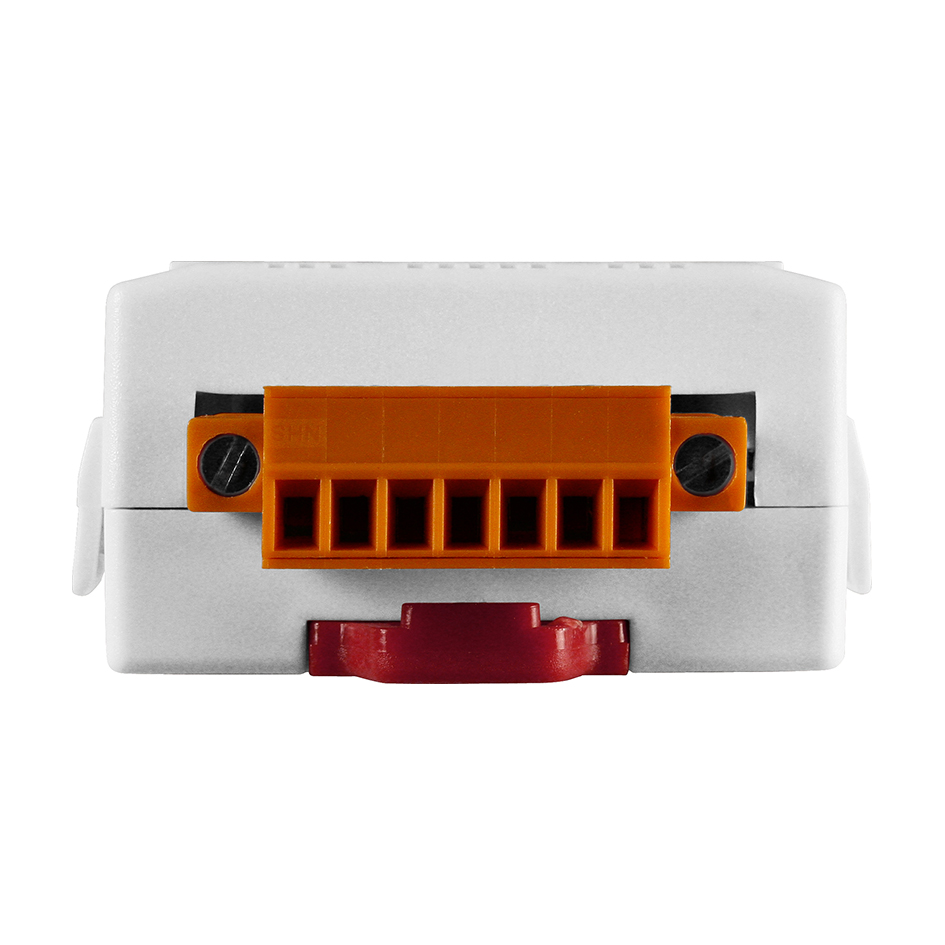

tM-P4A4 CR |
4-channel Isolation Digital Input and 4-channel Source-type Isolated Digital Output Module (RoHS) |
The tM-P4A4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tM-P4A4 supports source-type output with short circuit protection, while input is sink-type. All input channels can be used an 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
|
|
|
- All Kinds of On/Off Control
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor Fabrication
- Control Systems
|
|
|
Digital Input/Counter |
Input Channels |
4 |
Type |
Wet Contact (Sink) |
On Voltage Level |
+3.5 VDC ~ 50 VDC |
Off Voltage Level |
+1 V max. |
Input Impedance |
10 KΩ, 0.66 W |
Counters |
Channels |
4 |
Max. Counts |
65535 (16-bit) |
Max. Input Frequency |
100 Hz |
Min. Pulse Width |
5 ms |
Overvoltage Protection |
70 VDC |
Digital Output |
Output Channels |
4 |
Type |
Isolated Open Collector (Source) |
Max. Load Current |
650 mA/channel |
Load Voltage |
+10 VDC ~ +40 VDC |
Overvoltage Protection |
47 VDC |
Overload Protection |
Yes |
Short-circuit Protection |
Yes |
Power On Value |
Yes, Programmable |
Safe Value |
Yes, Programmable |
|
|
|
Communication |
Interface |
RS-485 |
Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
Baud Rate |
1200 ~ 115200 bps |
Protocol |
DCON, Modbus/RTU, Modbus/ASCII |
Dual Watchdog |
Yes, Module (2.3 seconds), Communication (Programmable) |
LED Indicators |
Power |
1 LED as Power Indicator |
Isolation |
Intra-module Isolation,Field-to-Logic |
3750 VDC |
EMS Protection |
ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
±8 kV Air for Random Point |
EFT (IEC 61000-4-4) |
±4 kV for Power |
Power Requirements |
Reverse Polarity Protection |
Yes |
Powered from Terminal Block |
Yes, 10 ~ 30 VDC |
Consumption |
0.5 W Max. |
Mechanical |
Dimensions (W x L x H) |
52 mm x 98 mm x 27 mm |
Installation |
DIN-Rail Mounting |
Environment |
Operating Temperature |
-25 °C ~ +75 °C |
Storage Temperature |
-30 °C ~ +75 °C |
Humidity |
10 ~ 95% RH, Non-condensing |
|
|
|
