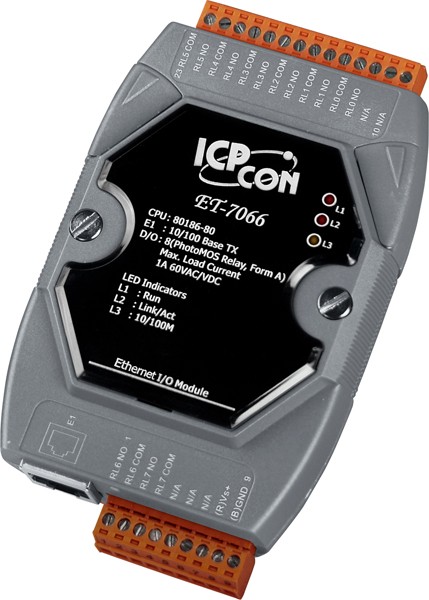

PET-7066 # PoE Ethernet I/O Module/Modbus TCP/8 PhotoMos Output, ICP DAS

The ET-7066/PET-7066 provides 8 form A PhotoMOS relays. It features optical isolation for 3000 Vrms of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of PhotoMOS relay are programmable. It can safely be used in applications where hazardous voltages are present.

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ET-7066 PET-7066 Software Built-In Web Server Yes Web HMI Yes I/O Pair Connection Yes Communication Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X PoE - Yes Protocol Modbus TCP, Modbus UDP Security ID, Password and IP Filter Dual Watchdog Yes, Module (0.8 seconds), Communication (Programmable) LED Indicators L1 (System Running) Yes L2 (Ethernet Link/Act) Yes L3 (Ethernet 10/100 M Speed) Yes PoE Power - Yes 2 Way Isolation Ethernet 1500 VDC - I/O 3000 Vrms EMS Protection ESD (IEC 61000-4-2) 4 kV Contact for Each Terminal EFT (IEC 61000-4-4) +/-2 kV for Power Power Reverse Polarity Protection Yes Powered from Terminal Block Yes, 10 ~ 30 VDC Yes, 12 ~ 48 VDC Powered from PoE - Yes, IEEE 802.3af, Class1 Power Output - - Consumption 2.6 W (Max.) 2.8 W (Max.) Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm Installation DIN-Rail or Wall mounting Environmental Operating Temperature -25 ~ +75 °C Storage Temperature -30~ +80 °C Humidity 10 ~ 90% RH, non-condensing

PhotoMOS Relay Channels 8 Type PhotoMOS Relay, Form A Load Voltage 60 VDC/VAC Max. Load Current 60V/1.0A (Operating Temperature -25 ~ +40°C) 60V/0.8A (Operating Temperature +40 ~ +60°C) 60V/0.7A (Operating Temperature +60 ~ +75°C) Operate Time 5.0 ms (Typical) Release Time 0.3 ms (Typical) Power-on Value Yes, Programmable Safe Value Yes, Programmable

ET-7066 CR Ethernet I/O Module with 8-ch PhotoMOS Relay (RoHS) PET-7066 CR PoE Ethernet I/O Module with 8-ch PhotoMOS Relay (RoHS)
