CAN - Soros RS-232/422/485 konverter

Modul típus I-7530 I-7530T tM-7530 I-7530A I-7530A-MR I-7530-FT

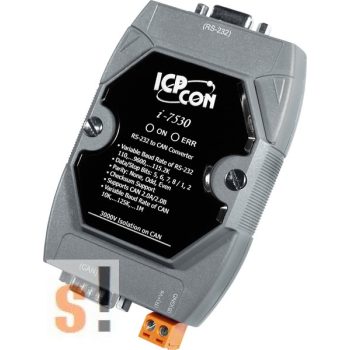

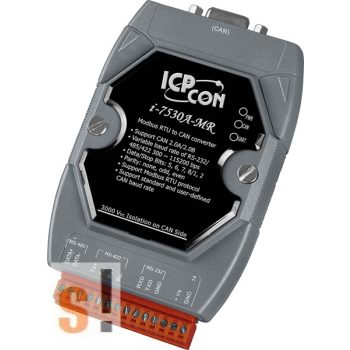

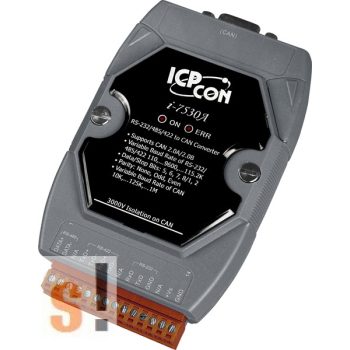

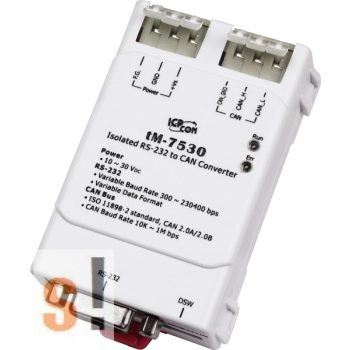

Képek RS-232/CAN bus converter RS-232/CAN bus converter RS-232/CAN bus converter Intelligent RS-232/485/422 to CAN bus Converter Intelligent RS-232/485/422 to CAN bus Converter RS-232/CAN bus converter
CAN Interfész
CAN specifikáció ISO-11898-2 ISO-11898-2 ISO-11898-2 ISO-11898-2 ISO-11898-2 ISO-11898-3
CAN Transceiver NXP 82C250 NXP TJA1042 NXP TJA1042 NXP 82C250 NXP 82C250 AMIS 41682
Baud Rate (bps) 10k ~ 1M bps 10k ~ 1M bps 10k ~ 1M bps and user-defined 10k ~ 1M bps 10k ~ 1M bps and
user-defined		 10 k ~ 125 k
CAN Filter Yes Yes Yes Yes Yes Yes
CAN Isolation 3000 VDC for DC-to-DC, 2500Vrms ~ 3750Vrms for photo-couple None
Terminator Resistor Built-in 120Ω Built-in 120Ω None Built-in 120Ω Built-in 120Ω Built-in 1kΩ
Max FPS (@1Mbps) 279 ~ 360 279 ~ 360 426 ~ 552 279 ~ 360 370 ~ 1250 279 ~ 360
CAN FIFO 1000 frames 1000 frames 256 frames 1000 frames 128 frames 1000 frames
UART Interface
UART RS-232 RS-232 RS-232 RS-232 / RS-485 / RS-422
(can't be used simultaneously)		 RS-232
Baud Rate (bps) 110 ~ 115200 110 ~ 115200 110 ~ 230400 110 ~ 115200 110 ~ 230400 110 ~ 115200
Connector 9-pin female D-Sub 9-pin female D-Sub 9-pin female D-Sub Screwed terminal block Screwed terminal block 9-pin female D-Sub
UART FIFO 900 frames 900 frames 256 bytes 900 frames 256 bytes 900 frames
Misc.
UART / CAN Conversion Half-Duplex Half-Duplex Full-Duplex Half-Duplex Full-Duplex Half-Duplex
Propagation Delay < 3.5 ms < 3.5 ms < 3.5 ms < 3.5 ms -- < 3.5 ms
UART Transparent Communication One-to-One
One-to-Many		 One-to-One
One-to-Many		 One-to-One
One-to-Many		 One-to-One
One-to-Many		 One-to-One
One-to-Many		 One-to-One
One-to-Many
Modbus RTU Slave No No No No Modbus RTU Slave No
